Description

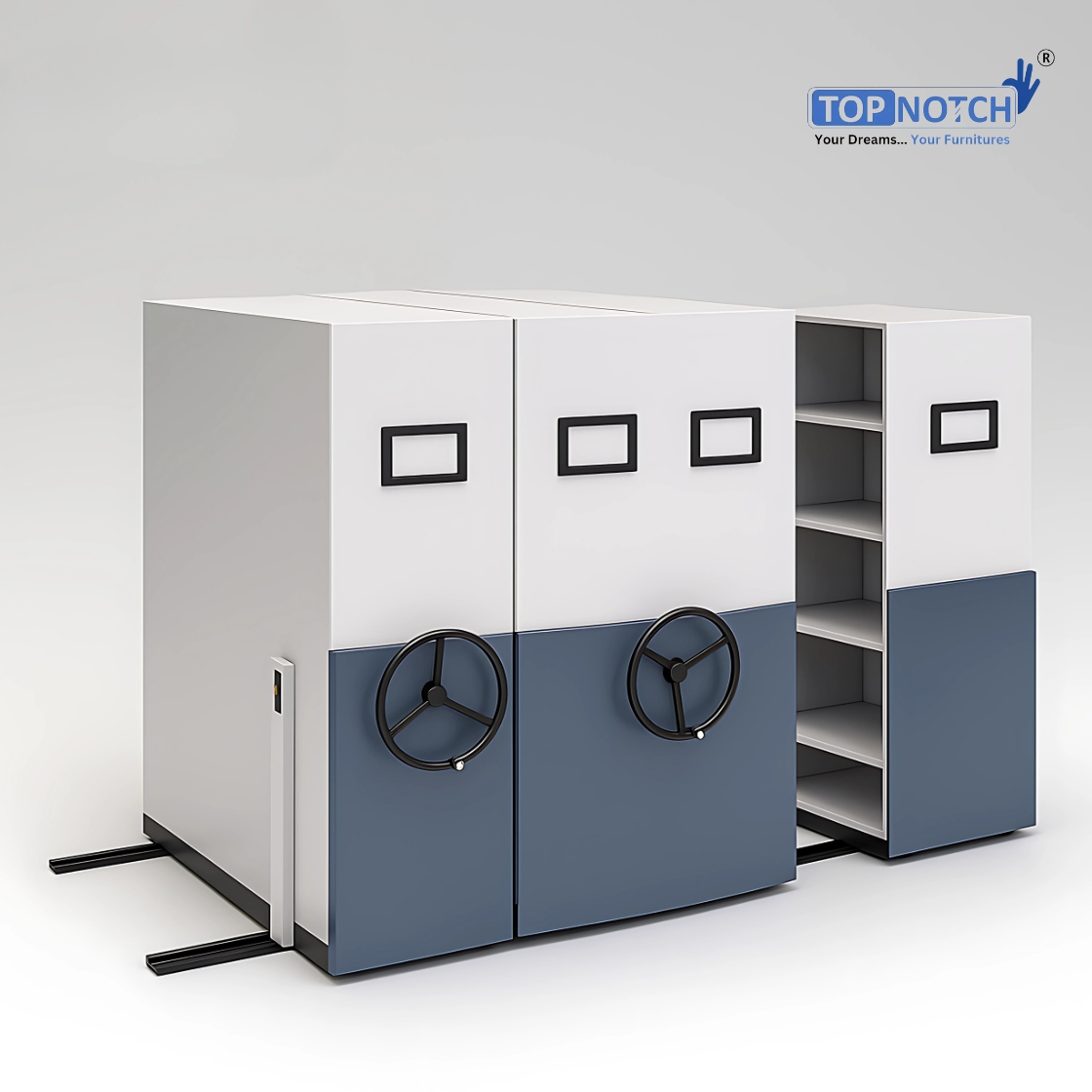

The Topnotch Mobile Storage Compactor – 1 Bay, 4 Bodies (Mechanical Drive) is designed for space optimization, security, and durability. This configuration includes:
-
1 Single Faced Fixed (SFF) body,
-
1 Double Faced Movable (DFM) body,
-
1 Single Faced Movable (SFM) body.
Each body is equipped with 4 adjustable/removable shelves, providing 5 compartments per unit for maximum flexibility.
The mechanical chain-driven system with covered drive ensures smooth and safe movement. The anti-skid rails, metal indexing provision, and separate locking system for each section make it ideal for high-density file and record storage.
Built from 0.8 mm CRCA steel sheet (IS:513/2008) with powder coating and treated via 8-tank anti-rust process, the compactor guarantees long service life even in demanding environments.
Widely used by corporates, banks, government departments, archives, and warehouses, this model offers reliability, strength, and security in a compact design.
Product Highlights / Bullet Points
-
Brand: Topnotch – Jaipur based ISO Certified Manufacturer
-
Product Type: Mechanical Driven Mobile Compactor, 1 Bay × 4 Bodies
-
Shelves: 4 per Body (Adjustable/Removable) → 5 Compartments
-
Drive Mechanism: Chain-Driven with Covered Drive – Smooth & Protected
-
Anti-Skid Rail System – Safety & Alignment ensured
-
Indexing Plate – Easy file/record identification
-
Locks: Separate Locking Provision for Each Section (without doors)
-
Material: 0.8 mm CRCA Sheet, IS:513/2008 Latest, Heavy-duty Base Channels
-
Load Capacity: 60–100 kg per shelf
-
Finish: Epoxy Powder Coated – Rust, Scratch & Corrosion Resistant
-
Applications: Offices, Banks, Record Rooms, Government Departments, Warehouses
-
Warranty: 2 Years on Manufacturing Defects
-
Origin: Made in India – PAN India Supply & Installation

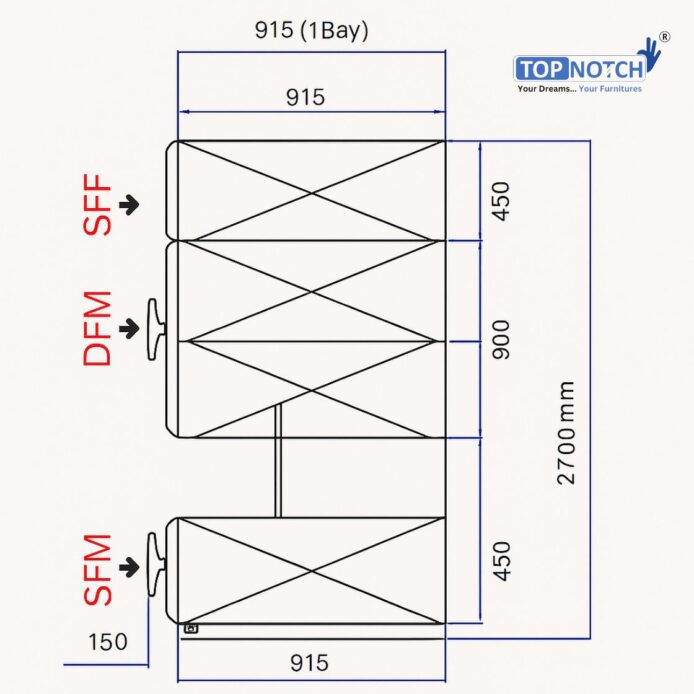

Bay & Row Explanation (Buyer Understanding)
-
Number of Bays (A):
A Bay = One Storage Almirah / Body in One Row
(In this case: 1 Bay × 4 Bodies = 4 Units Total). -
Single Faced Fixed Row (B):
1 × SFF (Static, one-side open) – mounted at one end of rail system. -
Single Faced Movable Row (C):
1 × SFM (Movable, one-side open) – rolls on rails. -
Double Faced Movable Row (D):
1 × DFM (Movable, open both sides) – rolls on rails.
📐 Formula for Bodies / Almirahs = A × (B + C + 2D)
👉 Here: 1 × (1 + 1 + 2×1) = 4 Bodies.
Comparison: Mechanical Driven vs. Manual (Hand Push / Push Pull) Mobile Compactor
| Feature | Mechanical Driven Compactor | Manual / Hand Push / Push Pull Compactor |
|---|---|---|
| Operation | Operated with a chain & sprocket drive mechanism, moved by turning a hand wheel / handle | Operated by direct hand push or pull, no drive mechanism |
| Effort Required | Very low effort, smooth & easy even when fully loaded | Requires more physical effort, especially when loaded |
| Capacity Handling | Can handle heavier loads & larger bays due to gear-driven mechanism | Suitable for lighter loads & fewer bays |
| Load Capacity per Shelf | 60–100 kg UDL per shelf (supports heavy-duty usage) | 60–80 kg UDL per shelf (medium-duty usage) |
| Safety Features | Fitted with safety locks, anti-skid rails, and mechanical covers | Basic safety, no drive cover, risk of impact if pushed fast |
| Durability | Designed for continuous, high-volume usage (banks, govt. records, warehouses) | Best for moderate usage (small offices, limited storage) |
| Speed of Access | Faster, smoother access due to mechanical chain drive | Slower when fully loaded, depends on user strength |
| Maintenance | Requires periodic lubrication & inspection of drive components | Very low maintenance (no drive system) |
| Cost | Higher (premium system with chain drive & extra safety) | Economical (simpler construction, push-pull movement) |
| Best Suited For | Heavy-duty environments: Banks, Government Record Rooms, Corporate Archives, Industrial Warehouses | Light-to-medium usage: Small Offices, Shops, Institutes, Libraries |
| Scalability | Easily expandable for large-scale file & record management | Limited scalability – practical for small to medium installations |
| Ergonomics | More user-friendly, reduces strain on operator | Requires manual effort, may be difficult for long-term heavy use |
Conclusion
-
Choose Mechanical Driven Compactor 👉 if you need heavy-duty storage, larger bays, smoother operation, and long-term durability with low operator effort.
-
Choose Manual / Hand Push Compactor 👉 if you want a budget-friendly option for smaller offices or medium storage needs where loads are not very heavy.

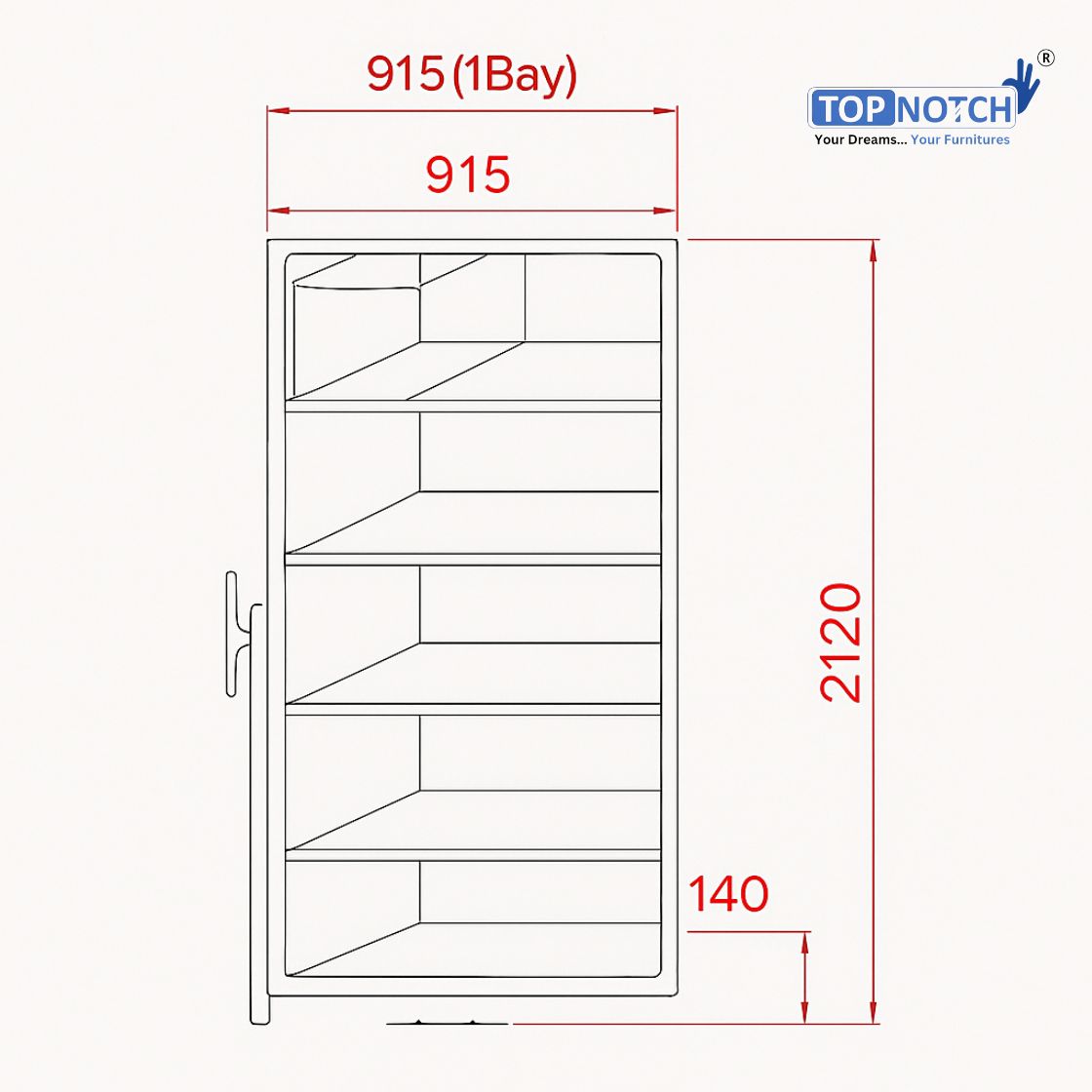

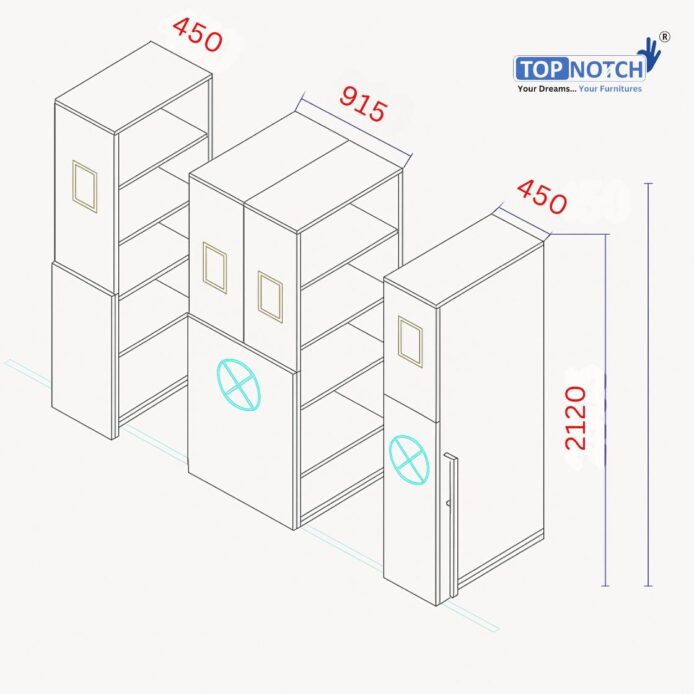

1 Bay 4 Bodies Topnotch Mobile Files Storage Systems Drawing
