Description
The Mobile Storage Compactor (4 Bay – 16 Bodies) is an advanced, space-optimizing storage solution designed for offices, institutions, banks, government departments, warehouses, and archives where efficient utilization of space is critical. Built with 0.8mm CRCA sheet (IS: 513, D Grade), this compactor provides unmatched strength, durability, and resistance to wear and tear, ensuring long-term performance even under heavy-duty usage.

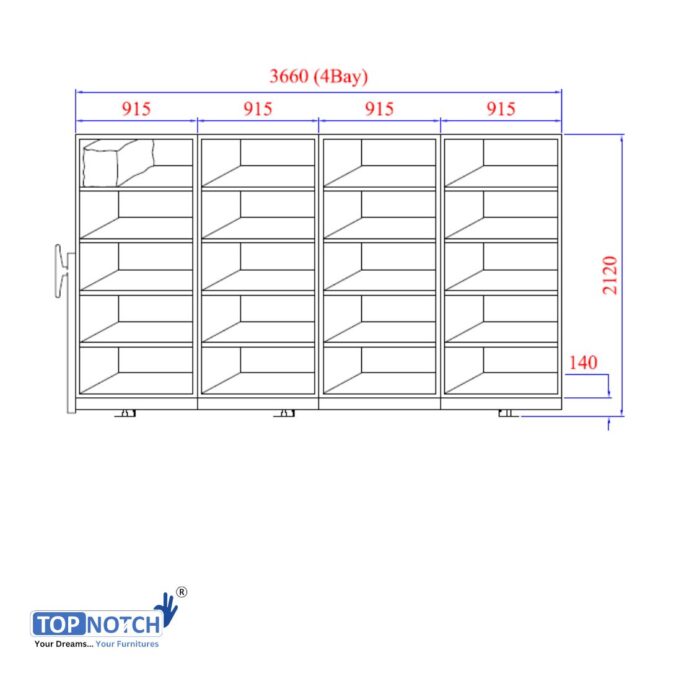

Each body measures 2120 mm (H) × 915 mm (W) × 450 mm (D), offering a standard modular size that integrates seamlessly into any workspace. The unit features 4 adjustable/removable shelves per body, creating 5 compartments per cabinet, capable of handling 60–70 Kg UDL per shelf. With 16 bodies, the system provides an impressive storage capacity while reducing the overall footprint compared to conventional racks or almirahs.
The compactor operates on a mechanical chain & sprocket drive system with diamond brand ½” chain, 20mm shafts, sprockets, pedestal bearings, and CI wheels (90×32 mm), ensuring smooth, effortless movement. The anti-topple mechanism and vibration-free construction guarantee safety and stability during operation.
To enhance security, the unit is equipped with centralized locking and individual hinged door locks (3-way locking system), making it ideal for storing confidential files and important records. The system is finished with epoxy polyester powder coating (40–70 microns) after an 8-tank anti-rust treatment process, offering superior resistance against scratches and corrosion.
With its knock-down, weldless clinch-joint design, the installation is hassle-free, supported by CAD layout planning and professional on-site setup. This compactor is a perfect blend of durability, functionality, and aesthetics, delivering maximum storage in minimal space.
Key Advantages
-
Saves 50–60% more space compared to traditional racks/almirahs.
-
Heavy-duty storage with high load-bearing shelves.
-
Smooth & safe mechanical drive with anti-topple design.
-
Dual security system – centralized & individual locks.
-
Premium powder coating for corrosion resistance & aesthetics.
-
Suitable for files, records, archives, spare parts, and warehouse storage.
Comparison: Mobile Storage Compactor (4 Bay – 16 Bodies) vs. Traditional 16 Almirahs
| Parameter | Mobile Storage Compactor – 4 Bay 16 Bodies | Traditional 16 Standard Almirahs |
|---|---|---|
| Space Utilization | Occupies ~40–50% less floor space due to single working aisle | Requires dedicated aisle space in front of each almirah, consuming more area |
| Storage Capacity | 16 Bodies × 5 Compartments = 80 Compartments | 16 Almirahs × 5 Compartments = 80 Compartments |
| Load Capacity | 60–70 Kg per shelf × 80 shelves = 3840–4480 Kg UDL | 60–70 Kg per shelf × 80 shelves = 3840–4480 Kg UDL |
| Accessibility | Smooth mechanical chain & sprocket system allows easy movement of bays | Manual opening/closing of each almirah, requires more physical effort |

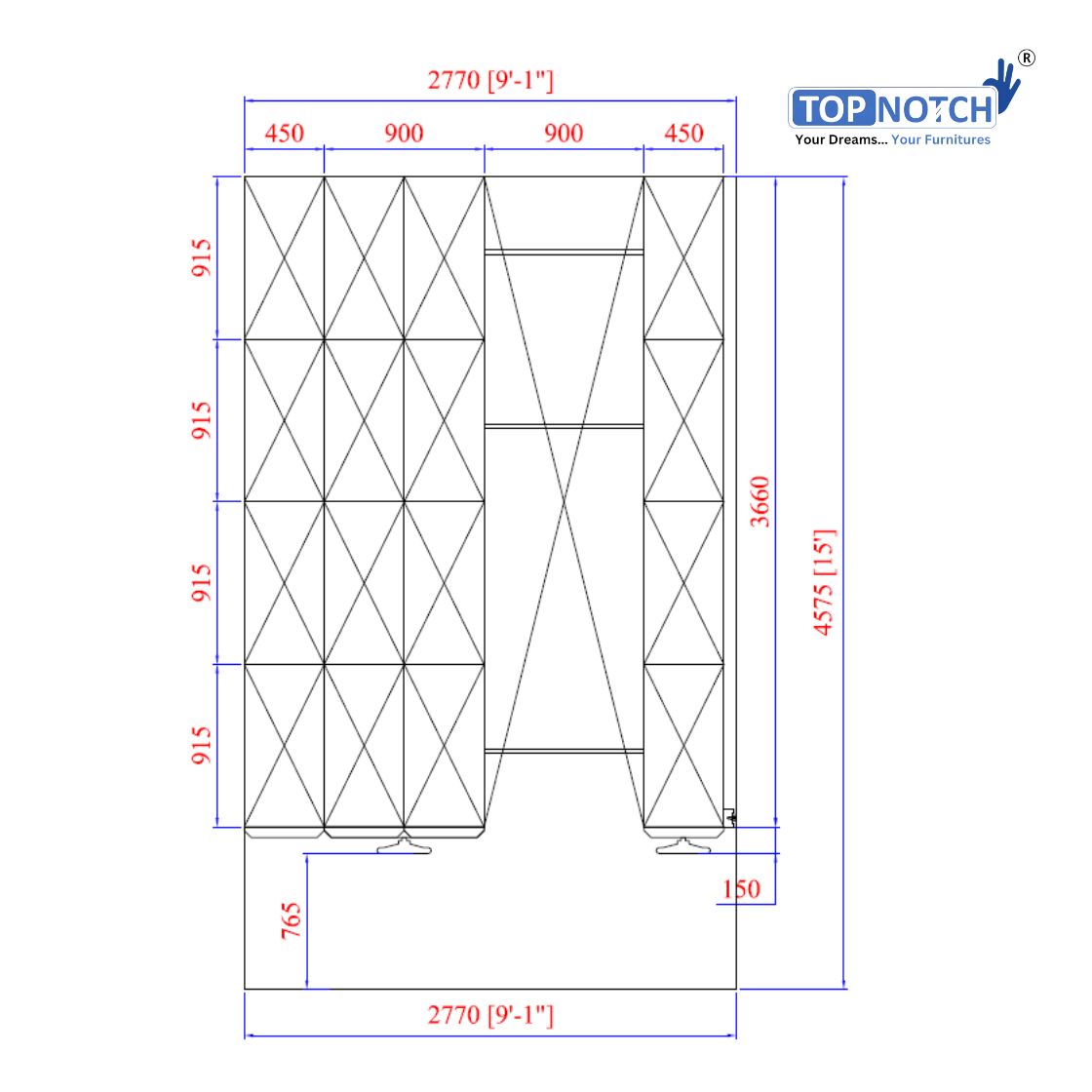

| Aisle Requirement | Only 1 aisle (760 mm / 2.5 ft) needed for full system | 16 aisles needed (one per almirah), wasting significant floor area |
| Security | Centralized + Individual Locking (3-way lock system) | Individual locks only, harder to manage securely |
| Safety Features | Anti-topple, vibration-free, rubber/PVC studs for noise reduction | No anti-topple protection, higher chance of imbalance |
| Durability | Weldless clinch-joint design, 0.8 mm CRCA sheet, 8-tank anti-rust treatment | Varies by manufacturer, generally less rigid & prone to rust over time |
| Aesthetics | Dual-tone epoxy polyester powder coating (40–70 microns) | Basic paint or powder coating, limited finishes |
| Installation | CAD layout + professional installation, modular knock-down design | Simple placement, but non-modular and bulky |
| Maintenance | Easy to service with AMC & after-sales support | Limited service support, depends on vendor |
| Space Saving | Saves up to 50–60% floor space compared to almirahs | Consumes ~2X more space due to multiple aisles |
| Best Suited For | Offices, banks, archives, warehouses with large record storage needs | Small offices or spaces with limited filing needs |
-
Both systems have similar storage capacity, but the Mobile Storage Compactor provides up to 60% space savings, better security, centralized control, and professional-grade durability.
-
Traditional almirahs are cheaper initially but inefficient in terms of space, security, and long-term usability.
-
For organizations with large records, files, or parts storage needs, the Mobile Compactor is the clear winner.
Product Highlights / Bullet Points
-
High Storage Capacity – 16 Bodies × 5 Compartments = 80 Compartments, each shelf supports 60–70 Kg UDL.
-
Heavy-Duty Construction – Made from 0.8 mm CRCA Steel (TATA/IS 513 D Grade) with weldless clinch-joint design for long durability.
-
Space-Saving Optimizer – Requires only 1 aisle (2.5 ft), saving up to 60% floor space compared to traditional racks/almirahs.
-
Smooth Operation – Mechanical chain & sprocket system with antifriction bearings and CI wheels for effortless movement.
-
Enhanced Safety & Security – Equipped with 3-way centralized + individual locking system, anti-topple design & rubber studs for noise-free operation.
-
Superior Finish – 8-tank anti-rust treatment with epoxy polyester powder coating (40–70 microns), available in dual-tone colors.
-
Modular & Easy Installation – CAD layout planning, knock-down structure, professional on-site assembly.
-
Multi-Sector Use – Ideal for corporates, banks, insurance companies, government offices, hospitals, warehouses, universities & archives.
-
Certifications – ISO 9001, ISO 14001, ISO 45001, ISO 50001, BIFMA, GREENGUARD certified for quality, durability & sustainability.
-
After-Sales Support – PAN India delivery, AMC & service support available.
