Description

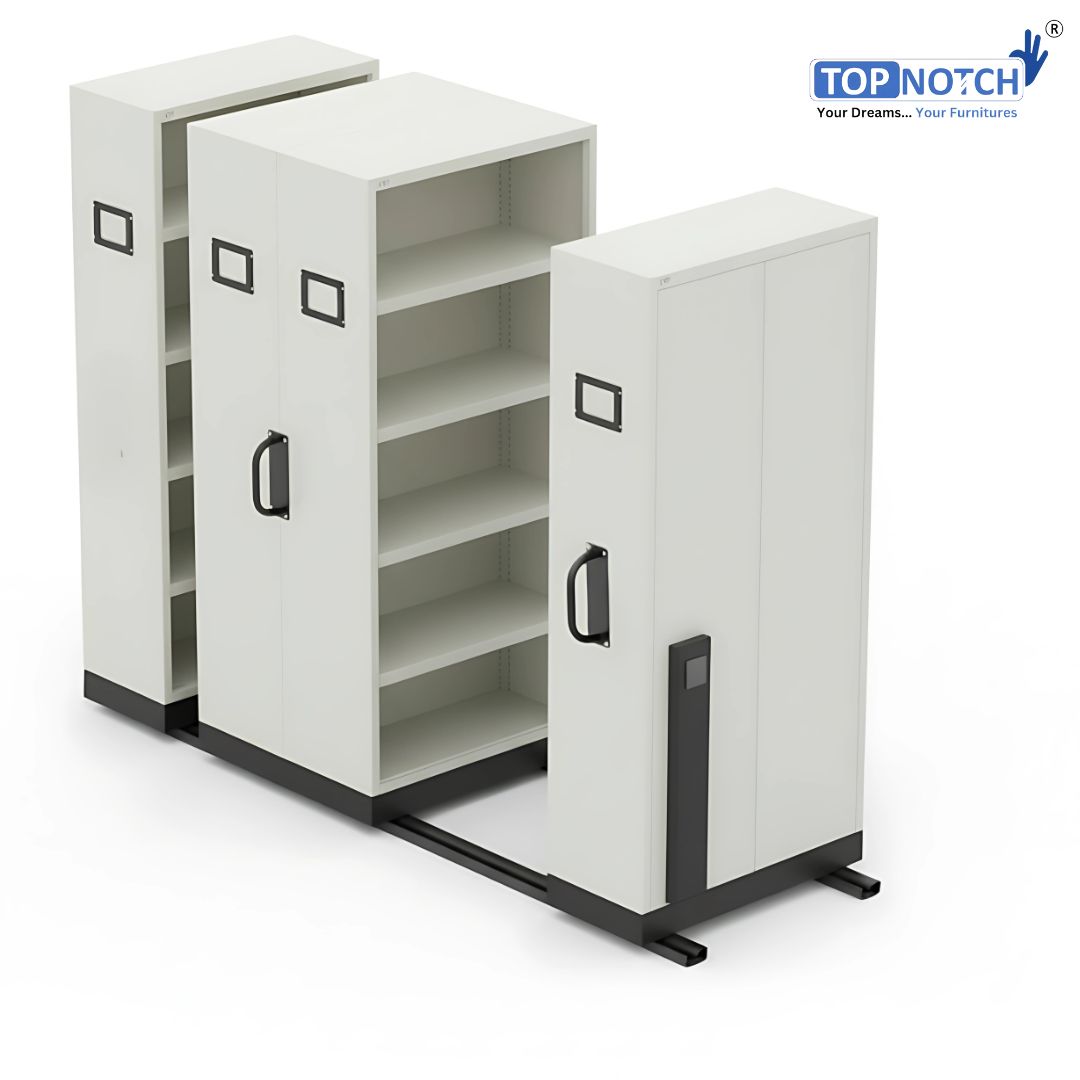

The Topnotch 1 Bay – 4 Bodies Mobile Storage Compactor is the ideal choice for organizations that need compact, durable, and secure storage without consuming large amounts of floor space. Designed using heavy-duty CRCA steel (TATA/JSW grade) and finished with a 40–70 micron epoxy polyester powder coating, this unit is strong, rust-resistant, and built for long-term durability.
This model is particularly suited for small-to-medium offices, banks, hospitals, schools, and archives that need to store thousands of documents in an organized and professional manner.
Configuration – SFF-1 + DFM-1 + SFM-1
-
SFF (Single Fixed Frame): 1 static cabinet (1 body).
-
DFM (Double-Faced Movable): 1 movable cabinet open on both sides (2 bodies).
-
SFM (Single-Faced Movable): 1 movable cabinet open on one side (1 body).
Total = 4 Bodies (Cabinets)
Storage Layout
-

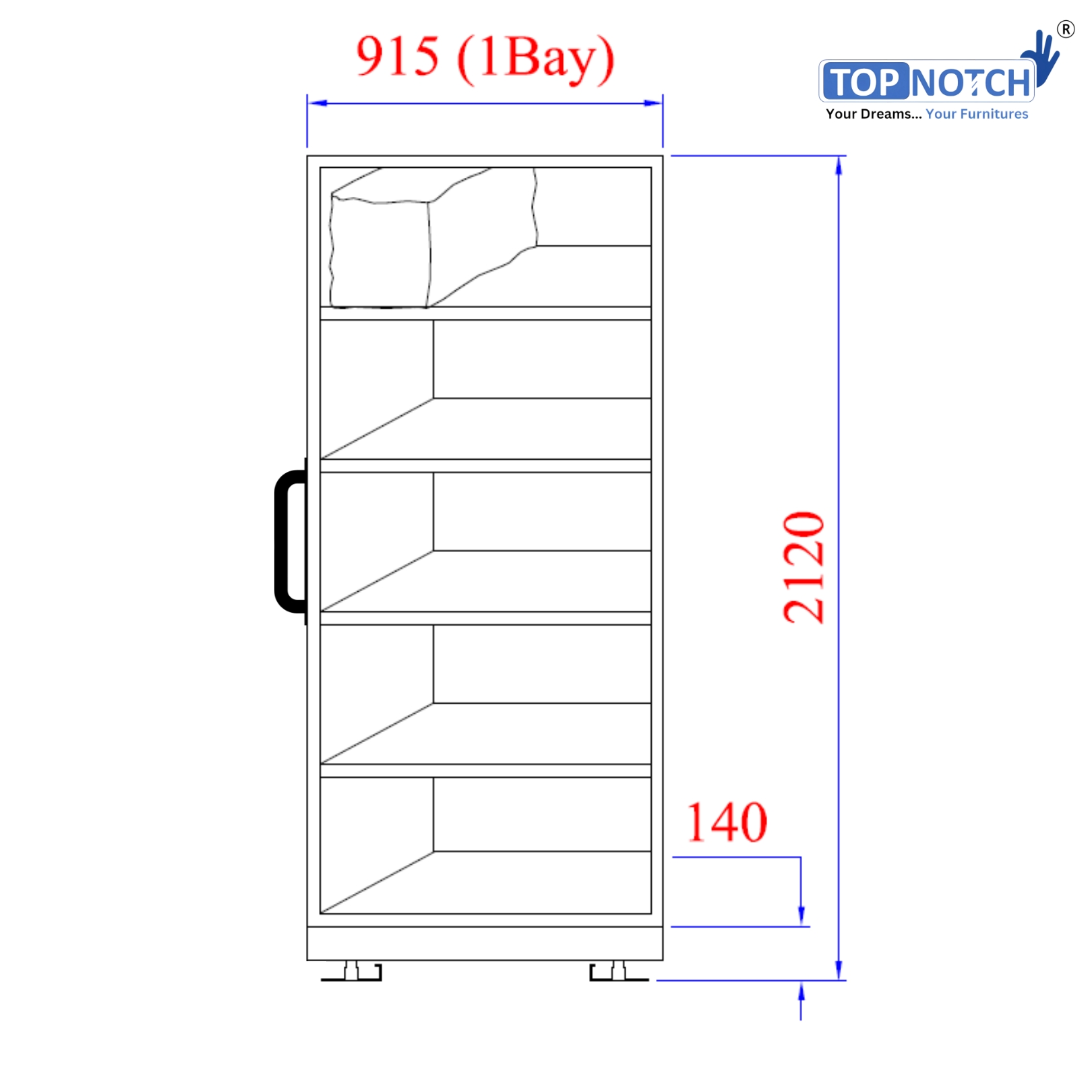

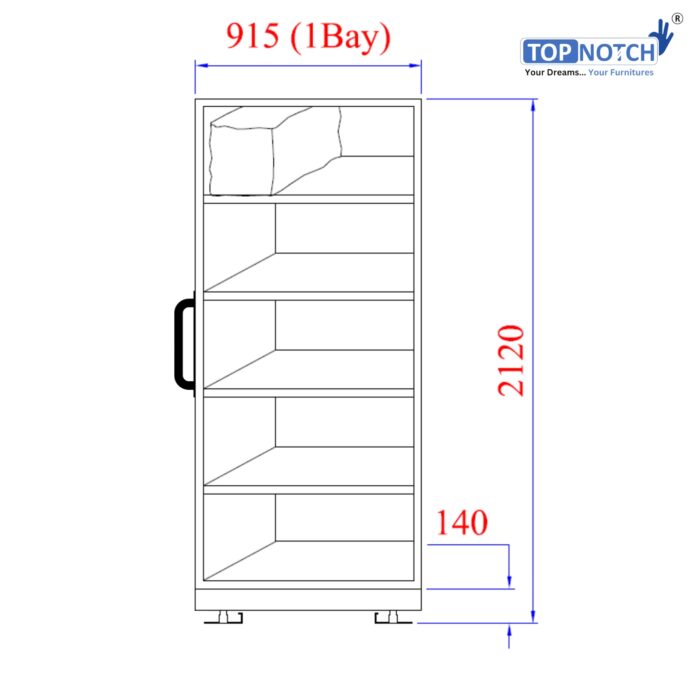

Cabinet Dimensions: 2120 (H) × 915 (W) × 450 (D) mm.
-
Shelves: 4 adjustable/removable shelves per body.
-
Compartments: 5 compartments per body → 20 total compartments.
-
Capacity: ~1,400–1,600 thin office files OR 200–240 box files.
Features & Benefits
-
✅ Compact Design: Replaces 4 almirahs with one unit.
-
✅ Space-Saving: Requires only 1 aisle instead of 4.
-
✅ Durability: Heavy-duty CRCA steel + anti-rust process.
-
✅ Secure: Centralized lock + optional individual locks.
-
✅ Flexible: Adjustable shelves for files, ledgers, or books.
-
✅ Professional Finish: Modern powder-coated appearance.
In short: This compactor is the perfect upgrade for small organizations that want professional, long-lasting, and space-saving storage.
Why Hand Push Compactor?
This manual model is ideal for environments with moderate file usage and smaller storage rooms. It eliminates the cost of the mechanical drive system while still providing:
-
✅ High storage density – up to 2,000 files in one compact bay.
-
✅ Space efficiency – saves 50–60% floor space compared to traditional racks or almirahs.
-
✅ Professional durability – built from 0.8 mm CRCA steel cabinets on 3.15 mm HR base frames, powder-coated for long-term protection.
-
✅ Smooth movement – CI wheels on rails allow stable manual push-pull movement.
-
✅ Fixed Powder-Coated Metal Handles – black-finished handles are strong, rust-resistant, and ergonomically designed for daily use.
Finish & Durability
The unit undergoes an 8-tank anti-rust treatment followed by epoxy polyester powder coating (40–70 microns) for a scratch-resistant, corrosion-resistant finish. Available in dual-tone or custom color schemes.
✅ In short: This model combines strength, affordability, and compact storage efficiency, making it a smart choice for organizations that require reliable storage on a budget.
Download Drawing

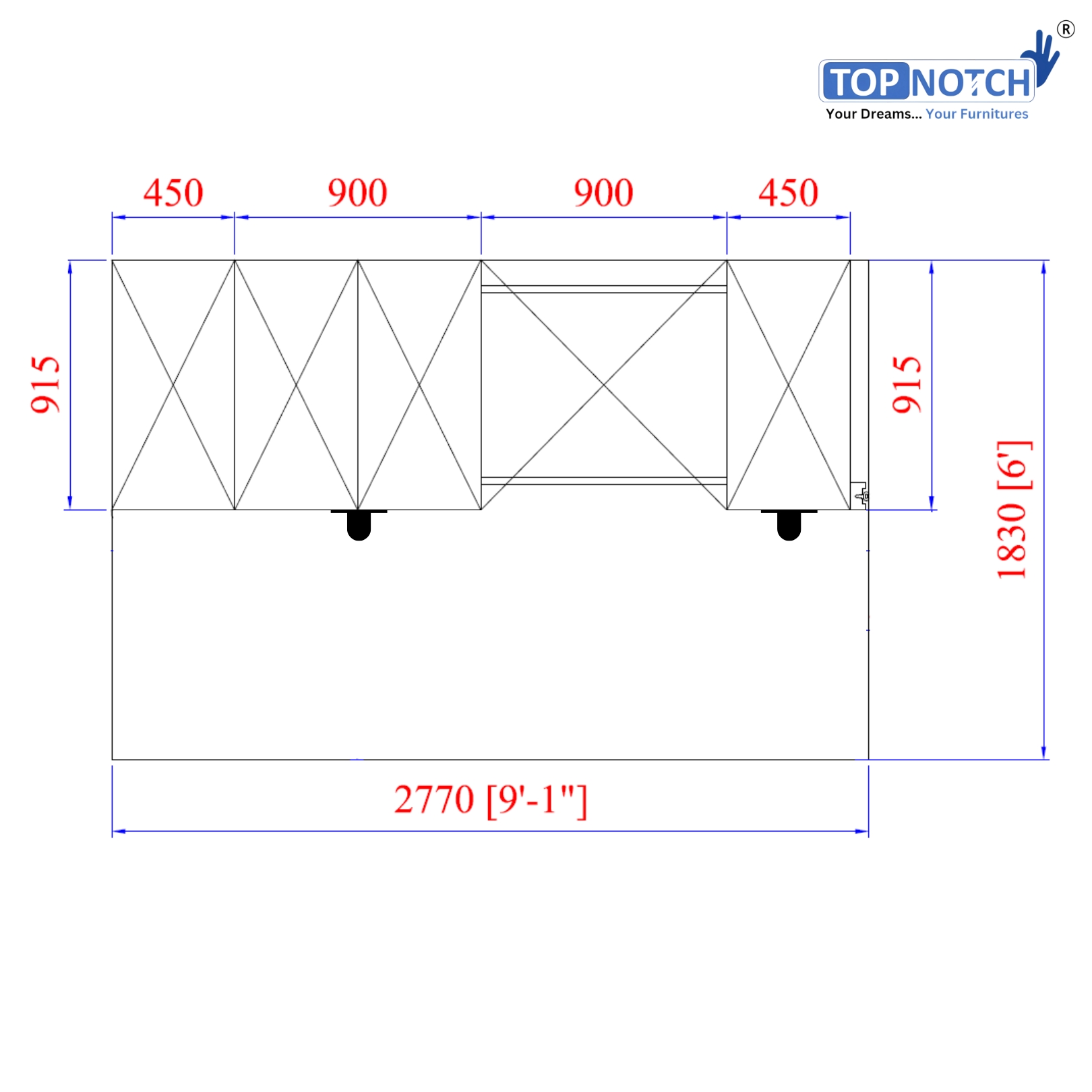

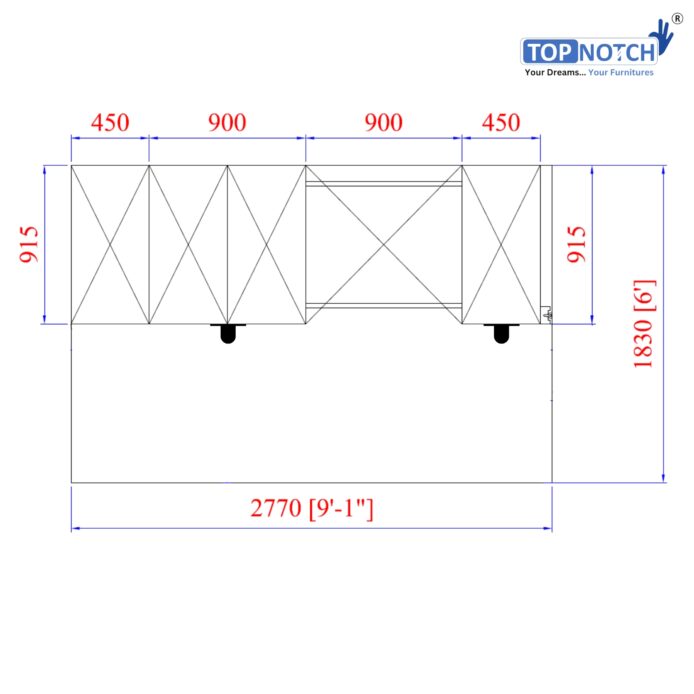

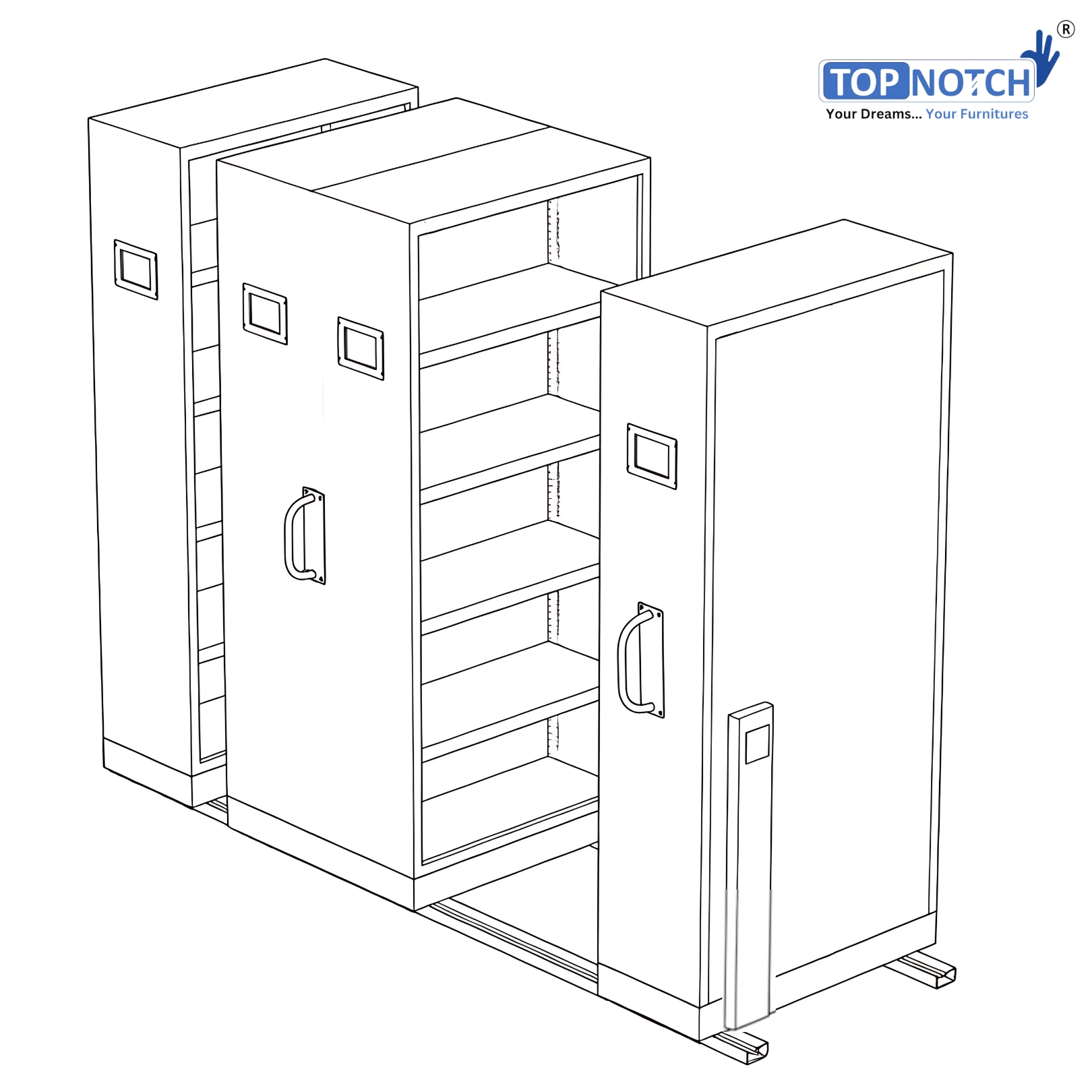

1 Bay 4 Bodies Topnotch Mobile Files Storage Systems Drawing
Key Features & Benefits
-
✅ Cost-Effective: Lower investment compared to mechanical drive models.
-
✅ Compact Storage: 4 bodies, 20 compartments in a single bay.
-
✅ File Capacity: ~2,00 files in just one aisle system.
-
✅ Durable Steel Handles: Powder-coated, rust-proof, long-lasting grip.
-
✅ Heavy-Duty Build: CRCA steel cabinets with anti-rust treatment.
-
✅ Space Saving: Only 1 working aisle required.
-
✅ Expandability: Additional bays can be added later.
-
✅ Professional Finish: Scratch-resistant, dual-tone coating for office-grade aesthetics.
Storage Capacity Breakdown
For Thin Office Files (30–40 mm spine width)
| Level | Capacity Estimate |
|---|---|
| Per Shelf (915 mm width) | 20–25 files |
| Per Body (5 compartments) | 100–120 files |
| Full System (4 Bodies) | 400–480 files |
For Box Files (75–80 mm spine width)
| Level | Capacity Estimate |
|---|---|
| Per Shelf (915 mm width) | 11–13 box files |
| Per Body (5 compartments) | 55–65 box files |
| Full System (4 Bodies) | 220–260 box files |
For Ledgers / Registers (varied thickness)
-
Each shelf can be adjusted to store large ledgers (50–70 mm spine) or manuals/books.
-
Approx. 15–18 ledgers per shelf → ~75–90 ledgers per body → 300–360 ledgers total.
Buyer-Friendly Explanation
-
If you use thin files → expect ~400–480 files total.
-
If you use box files → expect ~220–260 box files total.
-
If you use ledgers/manuals → expect ~300–360 ledgers total.
That’s double to triple the storage efficiency of 4 regular almirahs, but in half the floor space.
Comparison
1 Bay – 4 Bodies Mobile Storage Compactor vs. 4 Almirahs,
| Feature | Compactor (4 Bodies) | 4 Almirahs |
|---|---|---|
| Storage | 1,400–1,600 thin files / 220–260 box files | 600–800 thin files / 120–160 box files |
| Space | 1 aisle (750–900 mm) | 4 aisles (~3.5–4 m) |
| Security | Centralized locking + optional individual locks | Individual locks only |
| Safety | Anti-skid, anti-topple | None |
| Lifespan | 10–12 years | 4–5 years |
| ROI | High (space + durability) | Low |
A Topnotch 1 Bay – 4 Bodies Compactor is equivalent to 4 almirahs, but it saves 50–60% floor space, offers centralized security, and lasts 2–3× longer. The return on investment is far higher due to reduced real estate usage and maintenance.
