Description

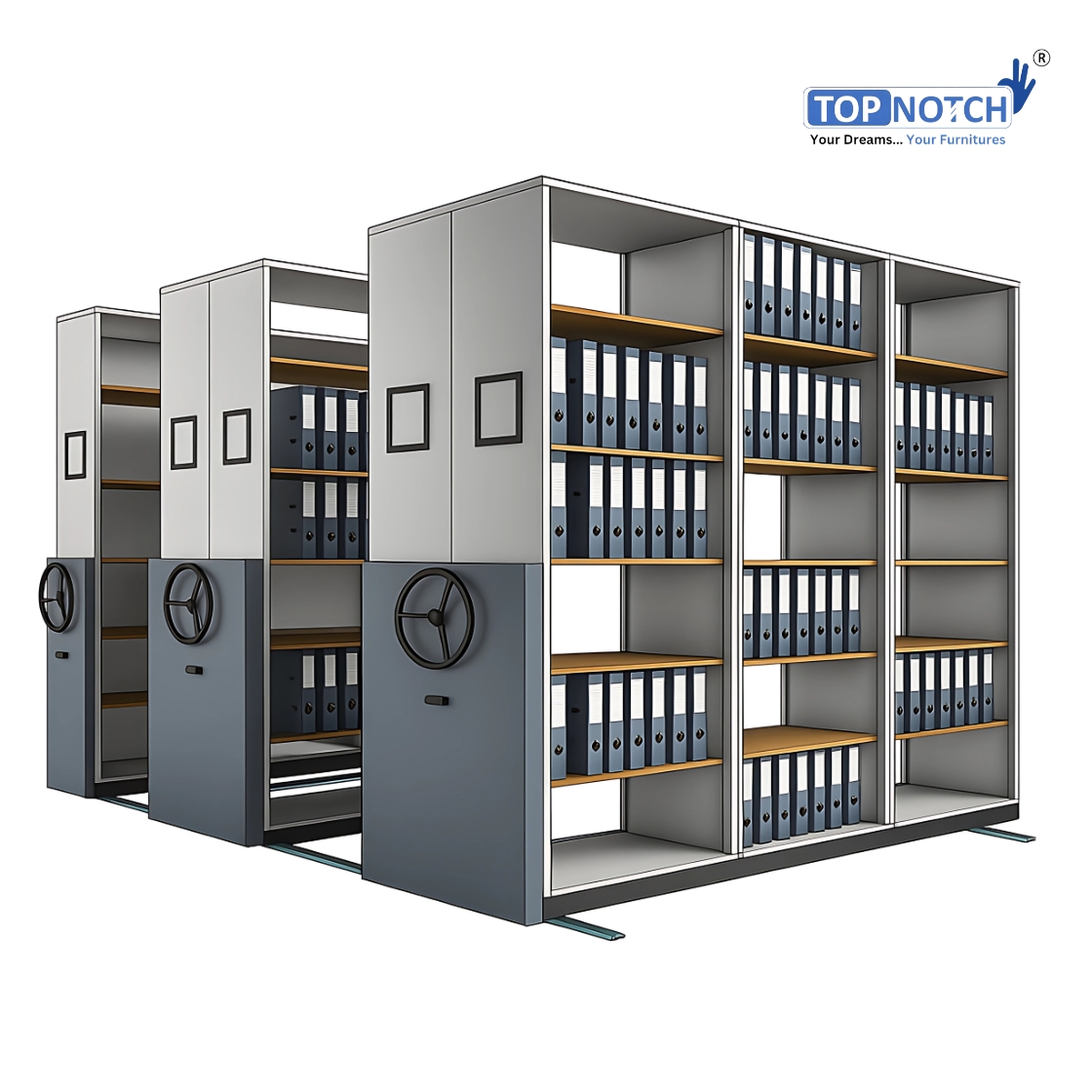

The Topnotch 2 Bay – 24 Bodies Mobile File Storage Compactor is an advanced, high-capacity storage solution designed for organizations that need to manage thousands of files, ledgers, and records in a compact, secure, and professional manner. Built with heavy-duty CRCA steel, engineered with precision rail-mounted design, and finished with powder coating after 8-tank anti-rust treatment, this system is a long-term investment in storage optimization.
🔹 Space Optimization
Unlike conventional racks or almirahs that require a separate aisle for each unit, the mobile compactor requires only one working aisle. This allows organizations to save 60–70% floor space, converting previously wasted areas into productive office use.
🔹 Heavy-Duty Construction
-
Cabinets built from 0.8 mm CRCA sheet (TATA/JSW) for durability.
-
Base frame in 3.15 mm HR sheet (IS 2062/1079 standard).
-
Finished with 40–70 micron epoxy polyester powder coating for corrosion resistance.
-
Designed to last 10–15 years with AMC support.
🔹 Configuration & Capacity
-
SFF (Single Fixed Frame): 1 body (fixed, single-faced).
-
DFM (Double-Faced Movable): 5 rows = 20 bodies (two sides each).
-
SFM (Single-Faced Movable): 1 body (movable, single-faced).
-
Total = 24 Bodies.
Each body contains 4 adjustable/removable shelves, creating 5 compartments per body.
👉 Total system = 24 bodies × 5 compartments = 120 compartments.

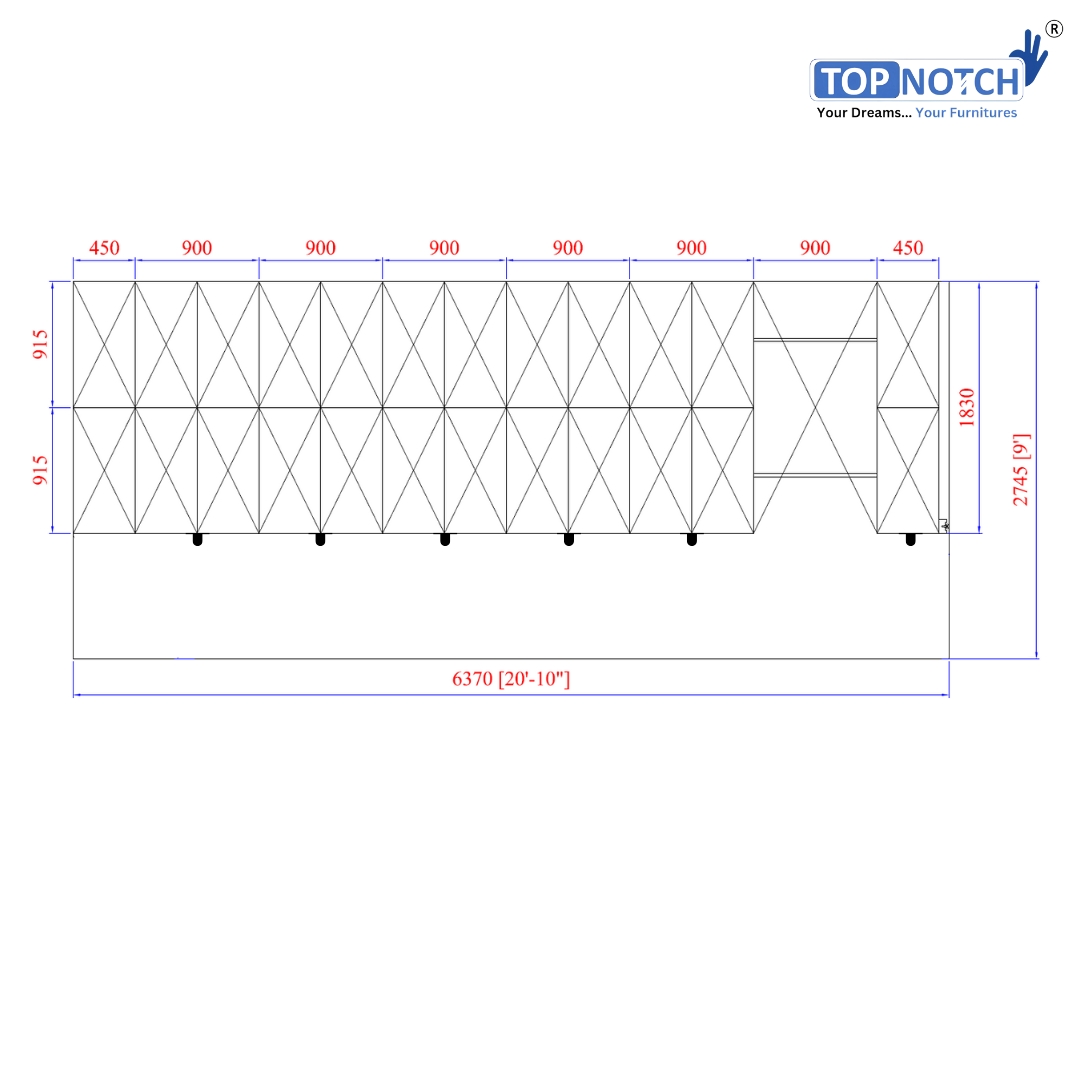

🔹 Dimensions & Area Coverage
-
Per Cabinet: 2120 (H) × 915 (W) × 450 (D) mm.
-
Total Depth (SFF + 5 DFM + SFM): 6370 mm.
-
Total Width (2 bays): 1830 mm + 915 mm operating aisle = 2745 mm.
-
Total Height: 2120 mm.
Thus, the full footprint is 6370 × 2745 × 2120 mm.
🔹 Drive & Safety
-
Hand Push / Push-Pull Drive with fixed powder-coated black metal handles.
-
Smooth operation via 90×32 mm CI wheels with heavy-duty bearings.
-
Anti-skid rails, anti-topple mechanism, and vibration-free structure ensure user safety and file protection.
🔹 Security & Organization
-
Centralized locking system secures all movable rows together.
-
Optional individual locks available for added protection.
-
Metal indexing plates included for quick file identification and systematic record management.
🔹 Installation & Packaging
-
Delivered in a knock-down modular format for easy transport.
-
CAD layout planning provided before installation.
-
Professional on-site installation by trained Topnotch teams.
-
Packaging includes gatta box + plastic wrap + itemized packing list.
👉 In short, this model is a heavy-duty, space-saving, and secure file storage solution for organizations that handle large-scale documentation daily.
Comparison – 24 Almirahs vs. Topnotch 2 Bay / 24 Bodies Mobile File Storage Compactor
| Parameter | 24 Standard Metal Almirahs / Racks | Topnotch 2 Bay – 24 Bodies Hand Push Mobile File Compactor |
|---|---|---|
| System Type | Fixed, individual almirahs | Mechanical-driven, Hand Push Mobile Compactor with anti-skid system |
| No. of Cabinets (Bodies) | 24 Almirahs | 24 Cabinets (2 Bay System) |
| Compartments per Body | 5 Compartments (fixed shelves) | 5 Compartments (with 4 removable & adjustable shelves) |
| Total Compartments | 24 × 5 = 120 Compartments | 24 × 5 = 120 Compartments |
| Per Shelf Load Capacity | 30–40 Kg avg. per shelf | 60–70 Kg UDL per shelf (reinforced heavy-duty) |
| Total Load Capacity | ~2400–3000 Kg | ~7200–8400 Kg |
| Body Dimensions | Avg. 1980 H × 900 W × 450 D (mm) | 2120 H × 915 W × 450 D (per cabinet) |
| 2 Bay Dimensions | Not applicable (fixed units) | SFF + SFM: 1830 W × 2120 H × 450 D (mm) DFM: 1830 W × 2120 H × 900 D (mm) |
| Total Floor Area Coverage | Much larger (aisle required in front of each almirah) | 6370 mm Depth × 2745 mm Width (incl. 915 mm operation aisle) |
| Space Utilization | Consumes 100% space | Saves up to 60% space |
| Accessibility | Only front-facing almirahs accessible | All units accessible via movable bays |
| Security | Individual locks, basic security | Centralized locking + 3-way individual locks |
| Durability | Medium (0.6–0.7 mm sheet) | Heavy-duty 0.8 mm CRCA sheet (IS 513 D Grade) |
| Finish | Basic powder-coated | Dual-tone epoxy polyester powder-coated (40–70 microns) |
| Flexibility | Fixed, not relocatable | Knock-down modular design, expandable & relocatable |
| Noise & Smoothness | Manual, often noisy | Ball-bearing rails + Rubber/PVC studs → smooth & silent |
| Safety | No anti-topple system | Built-in anti-topple & anti-skid system |
| Ergonomics | Requires movement across multiple aisles | Single aisle, faster retrieval, higher efficiency |
| Applications | Offices with limited storage, low-security needs | High-density storage: Corporates, Banks, Govt. Offices, Hospitals, Archives |
| Special Features | None | Metal indexing, CAD drawing, site visit, installation, gatta box + plastic wrap packing, itemized list |
| Cost Efficiency | Lower upfront cost but wastes space | Higher initial cost but long-term savings in space, security & efficiency |
