Description

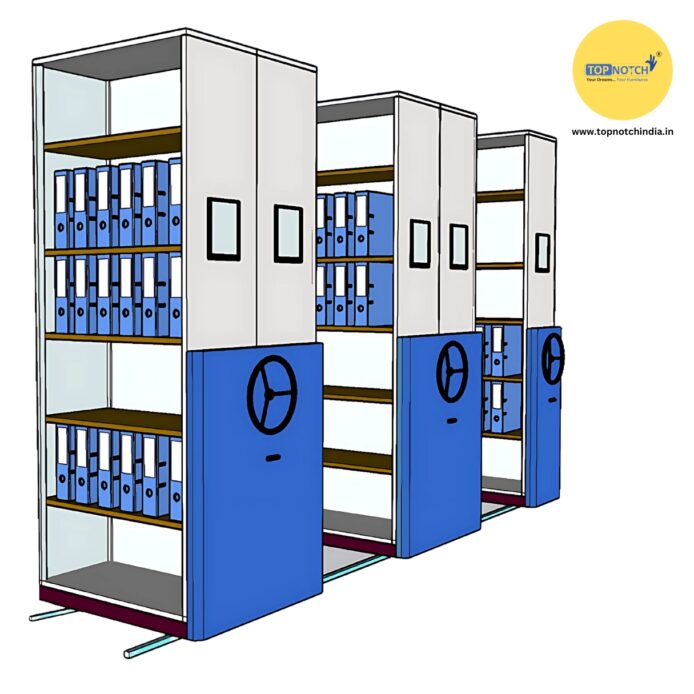

4 Bay – 16 Bodies Non-Standard Mobile Storage Compactor
Dimensions (per cabinet): 2505 (H) × 1180 (W) × 450 (D) mm
Material: Heavy-Duty CRCA Steel (TATA/JSW Sourced)
Finish: Epoxy Polyester Powder-Coated (40–70 microns)
Drive System: Mechanical Chain & Sprocket | Shelves: 5 Adjustable | Compartments per Cabinet: 6 | Total Compartments: 96
Product Description
The Topnotch 4 Bay – 16 Bodies Non-Standard Mobile Storage Compactor is designed for large organizations, PSUs, universities, banks, and government departments that manage massive volumes of files and archives.
With taller (2505 mm) and wider (1180 mm) cabinets, this model provides 30–40% more storage capacity per cabinet compared to standard compactors.
Built with 0.8 mm CRCA steel and supported on a 3.15 mm HR steel base frame, this compactor is engineered for heavy-duty usage. Each cabinet includes 5 adjustable/removable shelves, giving 6 compartments per body. With 16 bodies total, the system delivers 96 compartments, capable of storing 2,400+ files or nearly 1,200 box files.
The mechanical chain & sprocket drive system, coupled with CI wheels, pedestal bearings, anti-topple rails, and centralized locking, ensures smooth, safe, and secure operation for 15–20 years.
Storage Capacity
-
Thin Office Files (30–40 mm spine):
25–32 per shelf × 5 shelves × 16 bodies = 2400–3072 files -
Box Files (75–80 mm spine):
14–16 per shelf × 5 shelves × 16 bodies = 1120–1280 box files -
Ledgers & Registers (50–70 mm spine):
18–20 per shelf × 5 shelves × 16 bodies = 1440–1600 ledgers
Total Load Handling: ~6+ tonnes
Key Highlights
-
✅ Massive Storage: 96 compartments across 16 bodies.
-
✅ Non-Standard Cabinets: Extra tall & wide → 30–40% more capacity.
-
✅ Heavy-Duty Build: CRCA Steel + HR Steel base frame.
-
✅ Mechanical Drive: Chain & sprocket operation, effortless under load.
-
✅ High Load Capacity: 6+ tonnes safe storage.
-
✅ Secure: Central lock, safety nobs, anti-topple rails.
-
✅ Durable: 20-year lifespan with AMC.
-
✅ Certified: ISO, BIFMA, GREENGUARD, GEM registered.
-
✅ Modular & Expandable: Knock-down system allows future expansion.
Applications
-
Banks & Financial Institutions → Central archives for loan & audit files.
-
Hospitals & Clinics → Patient records, diagnostic reports, X-rays.
-
Corporates → HR, contracts, project documents, invoices.
-
Government Departments & PSUs → Land records, taxation, archives.
-
Universities & Libraries → Journals, theses, manuscripts, exam scripts.
-
Legal Firms & Courts → Case files, judgments, legal agreements.
Comparison: 4 Bay – 16 Standard Compactor vs. 4 Bay – 16 Non-Standard Compactor vs. 16 Almirahs
Introduction
Storage is one of the biggest operational challenges for organizations like banks, hospitals, PSUs, universities, corporates, and legal firms.
-
Traditional almirahs require multiple aisles, offer low storage, and lack centralized security.
-
Mobile Storage Compactors are the modern solution — saving up to 70% floor space, offering centralized locking, and lasting 15–20 years.
Here we compare:
-
4 Bay – 16 Cabinets Standard Compactor (2120 × 915 × 450 mm)
-
4 Bay – 16 Cabinets Non-Standard Compactor (2505 × 1180 × 450 mm)
-
16 Conventional Almirahs (~2000 × 900 × 450 mm)
Dimensions & Design
| Model | Per Cabinet Size | Total Cabinets | Compartments/Body | Total Compartments |
|---|---|---|---|---|
| 4 Bay – 16 Std Compactor | 2120 × 915 × 450 mm | 16 | 5 | 80 |
| 4 Bay – 16 Non-Std Compactor | 2505 × 1180 × 450 mm | 16 | 6 | 96 |
| 16 Almirahs | ~2000 × 900 × 450 mm | 16 | 4 | 64 |
Key Point:
-
Non-Standard Compactor = 96 compartments (largest).
-
Standard Compactor = 80 compartments.
-
16 Almirahs = only 64 compartments.
Storage Capacity
Thin Office Files (30–40 mm spine)
-
4 Bay – 16 Std:
20–25 files × 5 shelves × 16 = 1600–2000 files -
4 Bay – 16 Non-Std:
25–32 files × 5 shelves × 16 = 2000–2560 files -
16 Almirahs:
18–20 files × 4 shelves × 16 = 1152–1280 files
Box Files (75–80 mm spine)
-
4 Bay – 16 Std:
11–13 × 5 shelves × 16 = 880–1040 box files -
4 Bay – 16 Non-Std:
14–16 × 5 shelves × 16 = 1120–1280 box files -
16 Almirahs:
10–12 × 4 shelves × 16 = 640–768 box files
Ledgers & Registers (50–70 mm spine)
-
4 Bay – 16 Std:
15–18 × 5 shelves × 16 = 1200–1440 ledgers -
4 Bay – 16 Non-Std:
18–20 × 5 shelves × 16 = 1440–1600 ledgers -
16 Almirahs:
12–15 × 4 shelves × 16 = 768–960 ledgers
Storage Summary
| Model | Office Files | Box Files | Ledgers |
|---|---|---|---|
| 4 Bay – 16 Std | 1600–2000 | 880–1040 | 1200–1440 |
| 4 Bay – 16 Non-Std | 2000–2560 | 1120–1280 | 1440–1600 |
| 16 Almirahs | 1152–1280 | 640–768 | 768–960 |
Takeaway:
-
Non-Standard Compactor = 2× capacity of almirahs.
-
Standard Compactor = 1.5× almirah capacity.
Load Handling
-
4 Bay – 16 Std:
80 shelves × 60–70 Kg = 4.8–5.6 tonnes -
4 Bay – 16 Non-Std:
96 shelves × 60–70 Kg = 5.7–6.7 tonnes -
16 Almirahs:
64 shelves × 40–50 Kg = 2.6–3.2 tonnes
Non-Standard Compactor can hold double the load of almirahs.
Security
-
Compactors:
-
Centralized lock secures all cabinets.
-
Optional cabinet locks.
-
Anti-topple, anti-skid rails.
-
-
Almirahs:
-
Each requires a separate lock.
-
Multiple keys = less convenience.
-
Weak tamper resistance.
-
Durability & Finish
-
Compactors:
-
CRCA Steel (0.8 mm) with HR Steel base (3.15 mm).
-
Powder coating (40–70 microns) + 8-tank anti-rust treatment.
-
Lifespan: 15–20 years.
-
-
Almirahs:
-
Mild steel (0.6–0.7 mm), painted.
-
More prone to rust/scratches.
-
Lifespan: 7–10 years.
-
Installation & Space Efficiency
-
Compactors:
-
Installed on rails, modular knockdown system.
-
Require only one working aisle (750–900 mm).
-
Save 60–70% floor area.
-
-
Almirahs:
-
Each requires its own aisle space.
-
Consume 2–3× more space.
-
Cost vs. ROI
-
4 Bay – 16 Std Compactor:
Moderate investment, replaces ~16–18 almirahs, ROI in ~5 years. -
4 Bay – 16 Non-Std Compactor:
Higher investment, replaces ~20–22 almirahs, ROI in ~4 years. -
16 Almirahs:
Cheaper initially, but poor ROI → shorter lifespan + higher space cost.
Applications
-
4 Bay – 16 Std Compactor:
Ideal for medium-to-large organizations with ~2000 files. -
4 Bay – 16 Non-Std Compactor:
Designed for large-scale storage — banks, universities, hospitals, PSUs, government archives. -
16 Almirahs:
Only suitable for small offices with limited needs.
Comparison Table
| Feature | 4 Bay – 16 Std Compactor | 4 Bay – 16 Non-Std Compactor | 16 Almirahs |
|---|---|---|---|
| Cabinet Size | 2120 × 915 × 450 mm | 2505 × 1180 × 450 mm | ~2000 × 900 × 450 mm |
| Compartments | 80 | 96 | 64 |
| Office Files | 1600–2000 | 2000–2560 | 1152–1280 |
| Box Files | 880–1040 | 1120–1280 | 640–768 |
| Ledgers | 1200–1440 | 1440–1600 | 768–960 |
| Load Capacity | 4.8–5.6 tonnes | 5.7–6.7 tonnes | 2.6–3.2 tonnes |
| Security | Central Lock | Central Lock | Multiple Keys |
| Lifespan | 15–20 years | 15–20 years | 7–10 years |
| Space Saving | 60–70% | 60–70% | None |
| ROI | ~5 years | ~4 years | Poor |
| Best For | Medium Orgs, Hospitals | Large Orgs, Banks, PSUs | Small Offices |
-
4 Bay – 16 Non-Standard Compactor → The best choice for large institutions handling 2000+ files. It replaces ~20 almirahs, saves 70% space, and lasts 20 years.
-
4 Bay – 16 Standard Compactor → A balanced choice for medium organizations with 1600–2000 files.
-
16 Almirahs → Outdated, space-hungry, shorter lifespan, weak ROI.
One 4 Bay – 16 Non-Standard Compactor = ~20 almirahs, with 2× capacity, centralized security, and better ROI.
