Description

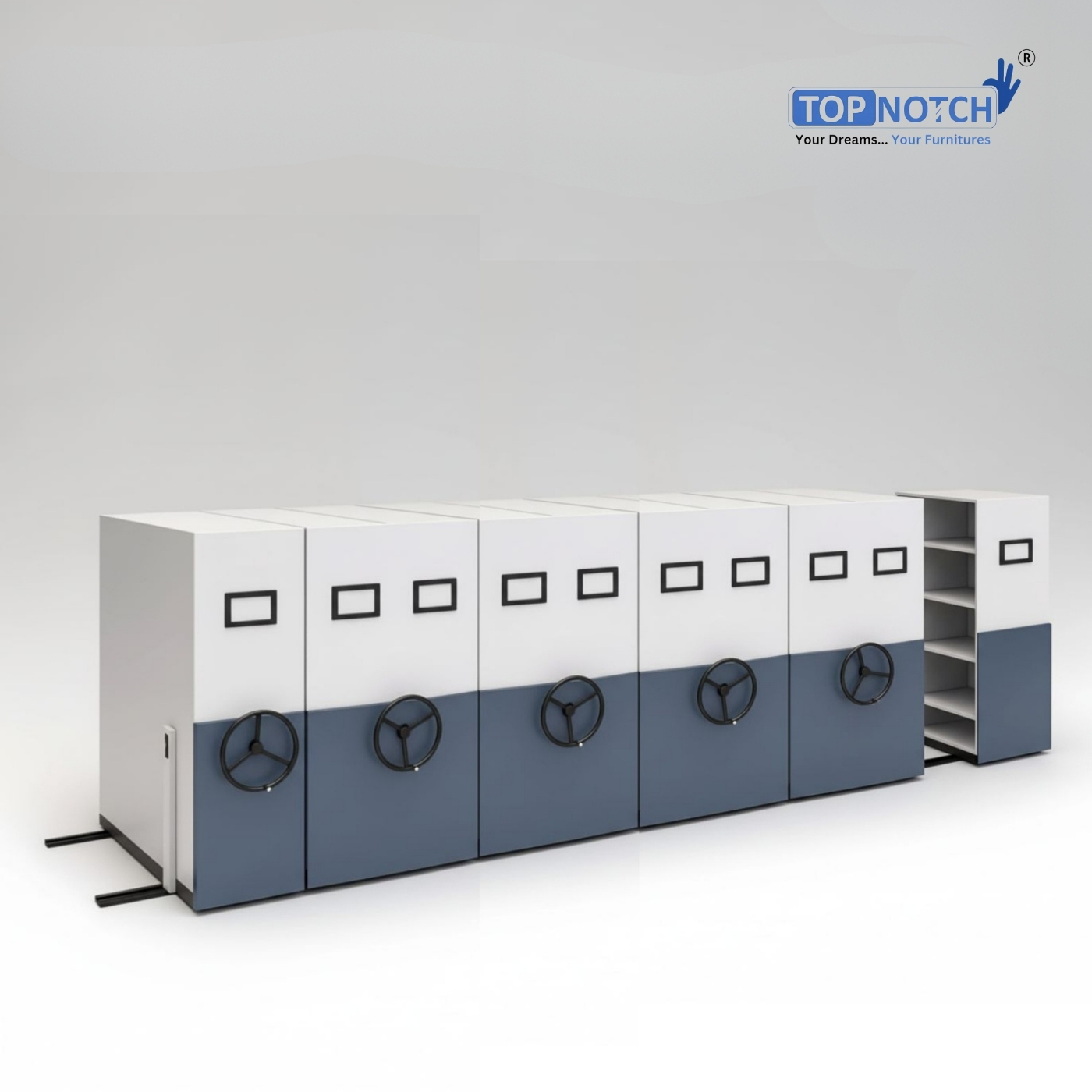

The Mobile Storage Compactor – 1 Bay, 10 Bodies is an advanced, high-density file and record storage system designed for offices, banks, hospitals, educational institutions, warehouses, and government departments where space optimization, durability, and organized record-keeping are essential.

This configuration includes:

• 1 Single Faced Fixed Frame (SFF) – static unit at one end of the rail system.

• 4 Double Faced Movable Units (DFM) – movable, accessible from both sides.

• 1 Single Faced Movable Unit (SFM) – movable, one side accessible.

👉 Total: 10 Bodies (cabinets) in 1 Bay system.

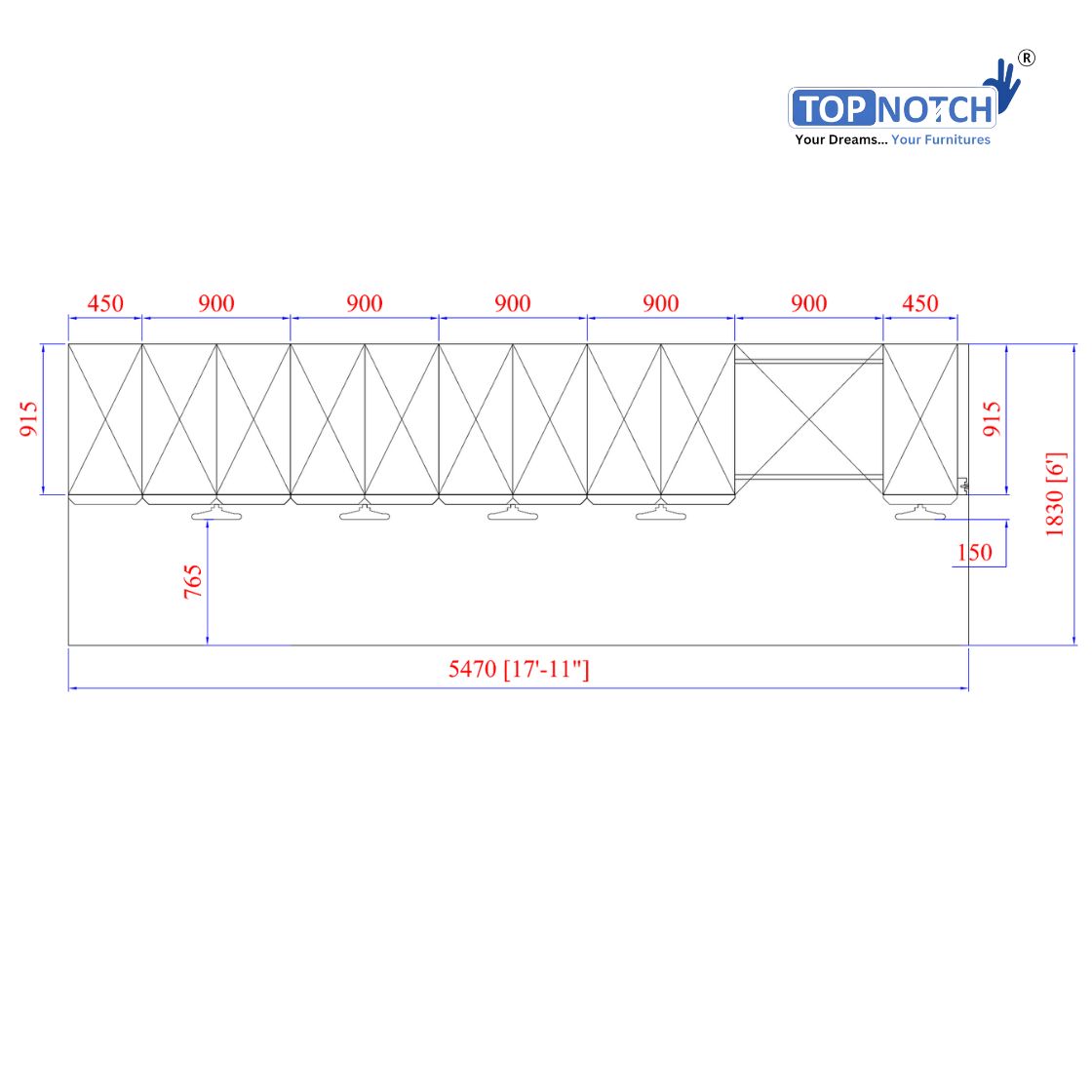

Each body has standard modular dimensions of 2120 mm (H) × 915 mm (W) × 450 mm (D). Equipped with 4 adjustable/removable shelves, each body forms 5 compartments. That equals 50 compartments in total across the 10 bodies. Each shelf is engineered to carry 60–70 Kg UDL, making the system capable of storing files, documents, books, ledgers, manuals, or light inventory with ease.

The system runs on a mechanical chain & sprocket drive mechanism, supported by antifriction bearings for smooth operation. Even when fully loaded, units glide easily with a gentle turn of the handle. Unlike conventional racks or almirahs that require multiple aisles, this compactor needs just one working aisle (750–900 mm), delivering 50–60% space saving.

Build & Durability

• Made from 0.8 mm CRCA Steel (IS: 513 D-Grade, TATA/JSW)

• Base frame crafted from 3.15 mm HR Sheet (IS: 2062/1079)

• Finished with epoxy polyester powder coating (40–70 microns) after an 8-tank anti-rust process

Safety & Security

• Anti-topple design ensures stability

• Anti-skid floor rails prevent slippage/misalignment

• Centralized locking system with a single key for the entire unit

• Separate lock provision for individual sections (doors optional)

• Indexing plates (black metal) for quick labeling & file identification

Packing & Warranty

Supplied in knock-down modular design, packed in gatta boxes + plastic wrap + itemized packing list, ensuring safe transport. Includes 1-year manufacturing defect warranty, with AMC and after-sales support available PAN India.

This 10-body mobile compactor strikes the perfect balance between capacity and compactness—ideal for organizations that require more than a 6- or 8-body setup but don’t need very large installations like 20–24 body systems.

Bay & Row Explanation (Buyer Understanding)

• 1 Bay = One row of cabinets

• Rows in this system:

  • SFF (Single Faced Fixed): 1 static body (1 side open)

  • DFM (Double Faced Movable): 4 movable bodies, both sides accessible (8 units equivalent)

  • SFM (Single Faced Movable): 1 movable body, one side open

👉 Formula: Bodies = A × (B + C + 2D)
= 1 × (1 + 1 + 2×4) = 10 Bodies Total

Key Features & Benefits

• ✅ High Storage Capacity – 10 bodies, 50 compartments

• ✅ Space-Saving – Requires only 1 aisle, saves up to 60% floor space

• ✅ Heavy-Duty Shelving – 60–70 Kg UDL per shelf

• ✅ Smooth Drive System – Mechanical chain & sprocket with bearings

• ✅ Enhanced Safety – Anti-topple, anti-skid, vibration-free design

• ✅ Centralized Security – Single key lock + separate lock provision

• ✅ Easy Identification – Metal indexing plates for labeling

• ✅ Durable Build – CRCA steel + powder-coated finish

• ✅ Warranty & Support – 1-year warranty, AMC available PAN India

• ✅ Government Ready – GEM Portal support + ISO certifications



Applications

• 📂 Corporate Offices – HR, finance, and project files

• 🏦 Banks & Insurance Companies – Loan files, ledgers, audit records

• 🏥 Hospitals & Clinics – Patient files, lab records, prescriptions

• 📚 Colleges & Libraries – Journals, student records, exam papers

• 🏛️ Government Departments – Land records, archives, tender files

• ⚖️ Law Firms & Courts – Legal briefs, judgments, client case files

• 🏭 Industries & Warehouses – Technical manuals, spare parts, stock registers



Comparison: Mobile Compactor

(1 Bay – 10 Bodies) vs. 10 Almirahs
