Description

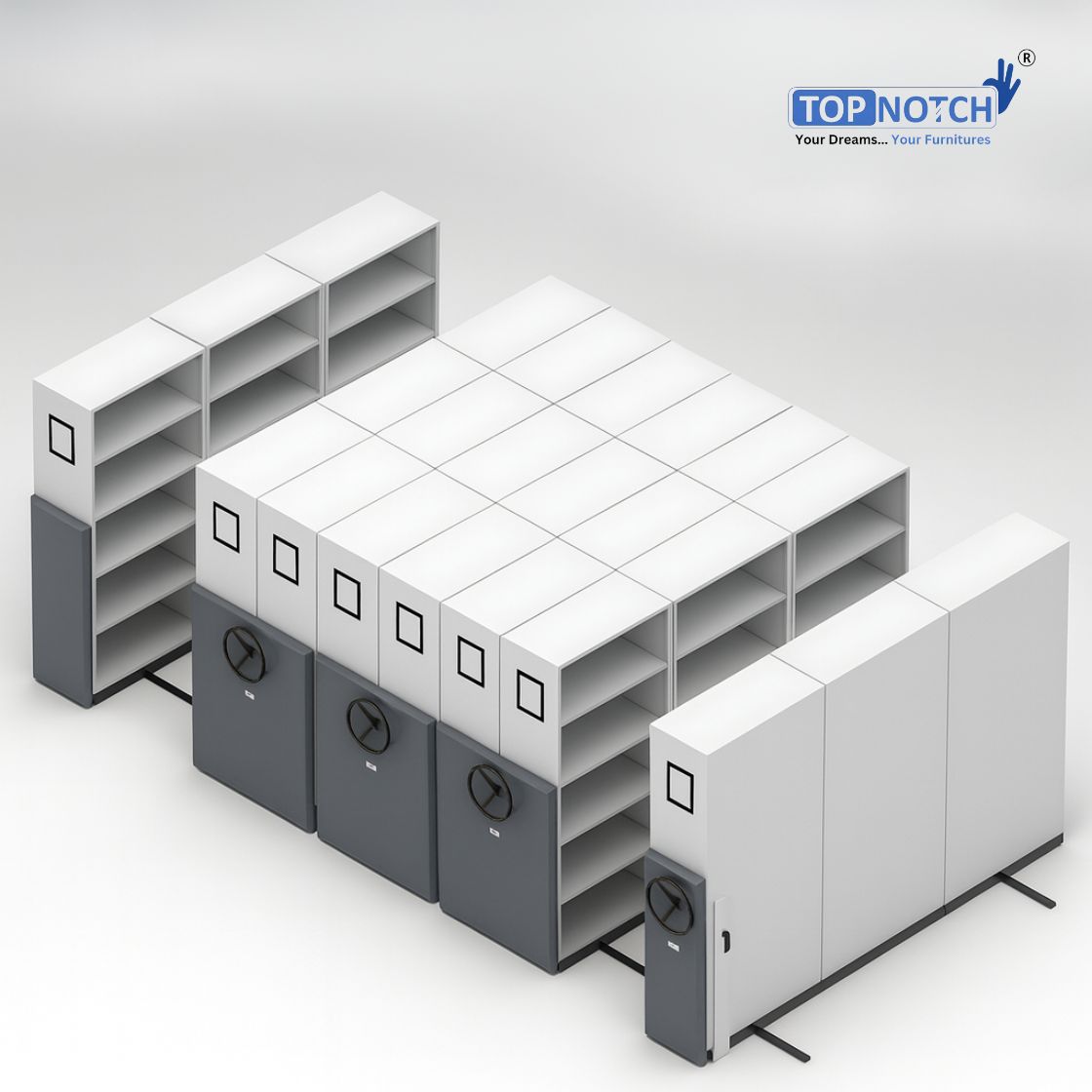

The Mobile Storage Compactor – 3 Bay, 24 Bodies is a high-capacity file and record storage system designed for organizations dealing with large volumes of documents, archives, or inventory. Built from CRCA steel (0.8 mm, IS 513 D-Grade, TATA/JSW), supported by a 3.15 mm HR base frame, and finished with 40–70 micron epoxy polyester powder coating after an 8-tank anti-rust process, this system ensures durability, strength, and longevity.

Configuration Breakdown

Each bay is designed with:

• 1 Single Faced Fixed Frame (SFF) – static, mounted at one end of the track.

• 3 Double Faced Movable Units (DFM) – movable, accessible from both sides.

• 1 Single Faced Movable Unit (SFM) – movable, accessible from one side.

👉 Formula per bay = 1 + (2×3) + 1 = 8 bodies.
👉 For 3 Bays = 3 × 8 = 24 bodies total.

Storage Capacity

Each body measures 2120 mm (H) × 915 mm (W) × 450 mm (D) with 4 adjustable/removable shelves, creating 5 compartments per body.

• 24 bodies × 5 compartments = 120 compartments total.

• Shelf load capacity: 60–70 Kg UDL per shelf.

• System capacity:

  • ~1,440–1,560 box files (75–80 mm spine).

  • ~2,400–2,880 thin office files (30–40 mm spine).

This equals replacing 24 bulky almirahs with a single compact storage solution.

Space Efficiency

Traditional static racks/almirahs require one aisle each. 24 almirahs = 24 aisles.
This compactor, mounted on rails, requires only one working aisle (750–900 mm), saving 50–60% of valuable floor space.

Operation & Safety

The compactor runs on a mechanical chain & sprocket drive system with antifriction bearings, ensuring smooth, vibration-free movement even when heavily loaded.

Key safety features include:

• Anti-topple mechanism

• Anti-skid floor rails to prevent misalignment

• Centralized locking system (single key for the entire bay)

• Separate lock provision for individual cabinets (doors optional)

• Indexing plates (black metal) for easy labeling & quick retrieval

Packing & Warranty

The system is supplied in knock-down modular design, packed in gatta boxes + plastic wrap + itemized packing list, ensuring safe transport. Comes with a 1-year warranty against manufacturing defects, and AMC + PAN India after-sales support is available.

This 3 Bay – 24 Body compactor is ideal for large offices, banks, universities, hospitals, warehouses, and government departments requiring bulk, systematic storage with maximum space utilization.

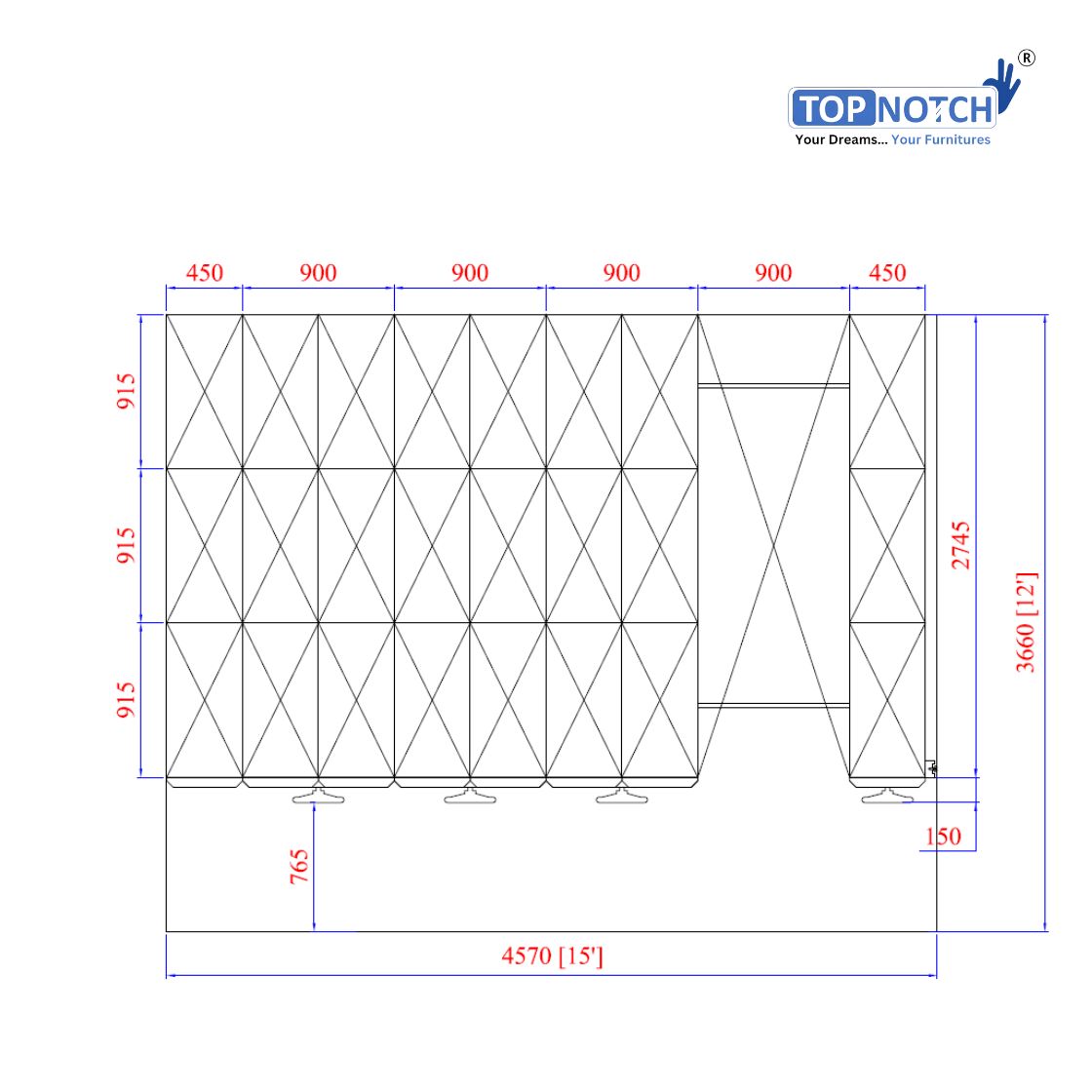

Bay & Row Explanation (Buyer Understanding)

• 1 Bay = One row of cabinets.

• This system has 3 Bays.

• Per Bay includes:

  • 1 SFF (Single Faced Fixed) → 1 static cabinet (one side open).

  • 3 DFM (Double Faced Movable) → 6 cabinets (two sides each).

  • 1 SFM (Single Faced Movable) → 1 cabinet (movable, one side open).

👉 Formula: Per Bay = (1 + 2×3 + 1) = 8 Bodies.
👉 For 3 Bays = 3 × 8 = 24 Bodies Total.

Key Features & Benefits

• ✅ High-Capacity Storage – 24 bodies, 120 compartments.

• ✅ Space Optimization – Saves 50–60% space vs. 24 almirahs.

• ✅ Strong Build – CRCA steel + HR base frame, rust-proof finish.

• ✅ Load-Bearing Shelves – 60–70 Kg UDL per shelf.

• ✅ Smooth Drive – Mechanical chain & sprocket with antifriction bearings.

• ✅ Dual Security – Centralized lock + individual lock provision.

• ✅ Safety Assured – Anti-topple, anti-skid, vibration-free.

• ✅ Professional Finish – Powder-coated dual-tone design.

• ✅ Easy Identification – Indexing plates included.

• ✅ Warranty & AMC – 1-year warranty + PAN India support.





Applications

• 📂 Corporate Offices – HR, legal, financial & project files.

• 🏦 Banks & Insurance Firms – Loan files, ledgers, KYC & audit reports.

• 🏥 Hospitals & Labs – Patient records, lab reports, prescriptions.

• 📚 Universities & Colleges – Journals, exam papers, student files.

• 🏛️ Government Departments – Land records, archives, tenders.

• ⚖️ Law Firms & Courts – Case files, judgments, contracts.

• 🏭 Industries & Warehouses – Technical manuals, spare parts, QC logs.



Comparison: Mobile Compactor (3 Bay – 24 Bodies) vs. 24 Almirahs
