Description

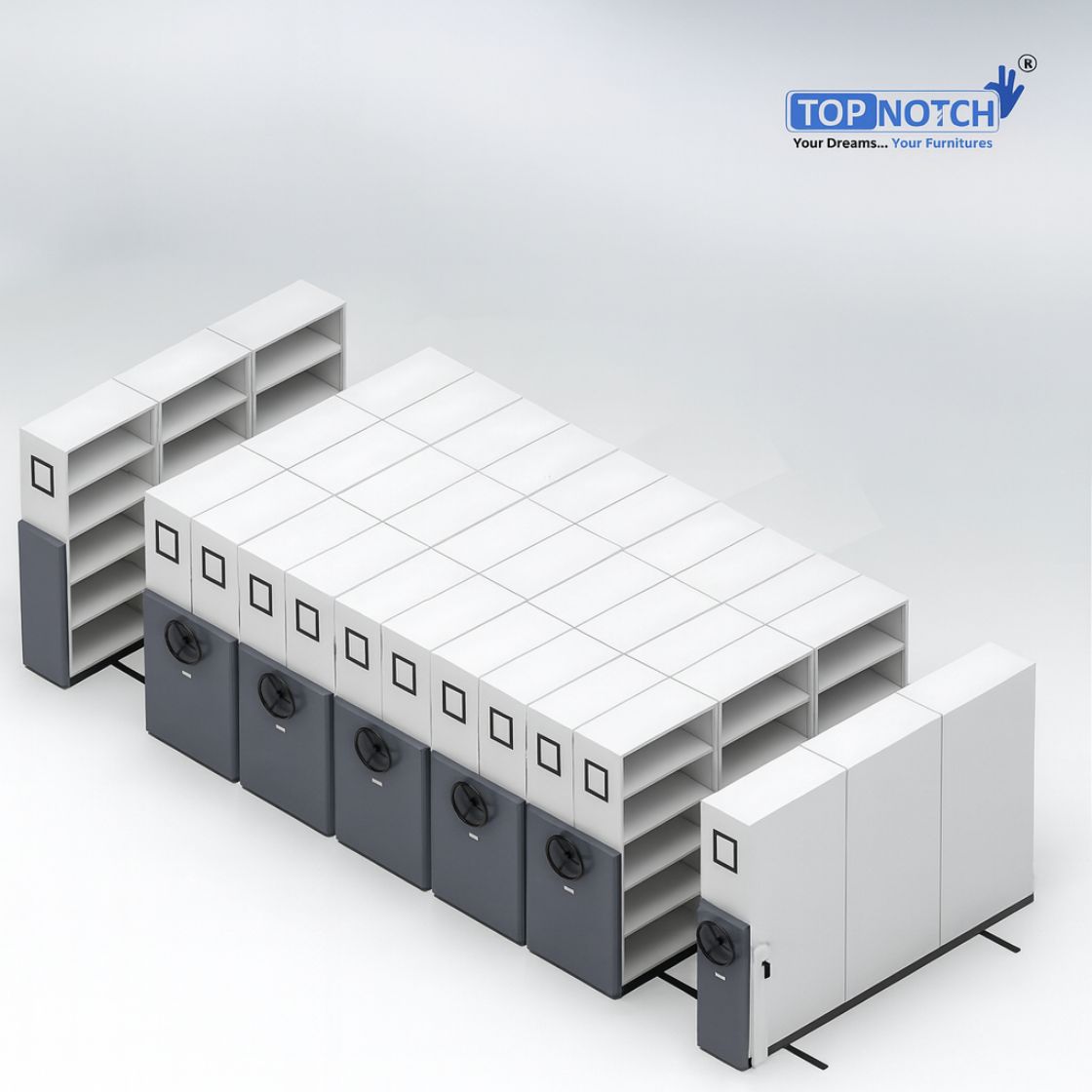

The Mobile Storage Compactor – 3 Bay, 36 Bodies is a heavy-duty, high-density storage solution engineered for organizations that deal with large-scale document archives, ledgers, books, records, or small inventory. This premium compactor provides maximum storage within minimum floor space, saving up to 50–60% area compared to traditional racks or almirahs.

Constructed from 0.8 mm CRCA Steel (IS 513 D-Grade, TATA/JSW) with a 3.15 mm HR sheet base frame (IS 2062/1079), the structure is treated with an 8-tank anti-rust process and finished with 40–70 micron epoxy polyester powder coating. The result is a durable, rust-resistant, and aesthetically professional storage solution that lasts for decades.

Configuration Breakdown

Each bay is designed as follows:

• 1 Single Faced Fixed Frame (SFF) – static unit, mounted at the end of the track.

• 5 Double Faced Movable Units (DFM) – movable, accessible from both sides.

• 1 Single Faced Movable (SFM) – movable, open on one side.

👉 Formula per bay = 1 + (2×5) + 1 = 12 bodies.
👉 For 3 Bays = 3 × 12 = 36 Bodies Total.

Storage Capacity

• Per Body Dimensions: 2120 mm (H) × 915 mm (W) × 450 mm (D)

• Shelves per Body: 4 adjustable/removable → 5 compartments

• System Compartments: 36 bodies × 5 = 180 compartments

• Shelf Load Capacity: 60–70 Kg UDL per shelf

Overall system capacity:

• ~2,160–2,340 box files (75–80 mm spine)

• ~3,600–4,320 thin office files (30–40 mm spine)

This replaces 36 independent almirahs, but requires only one aisle (750–900 mm) instead of 36, delivering a massive space-saving advantage.

Operation & Safety

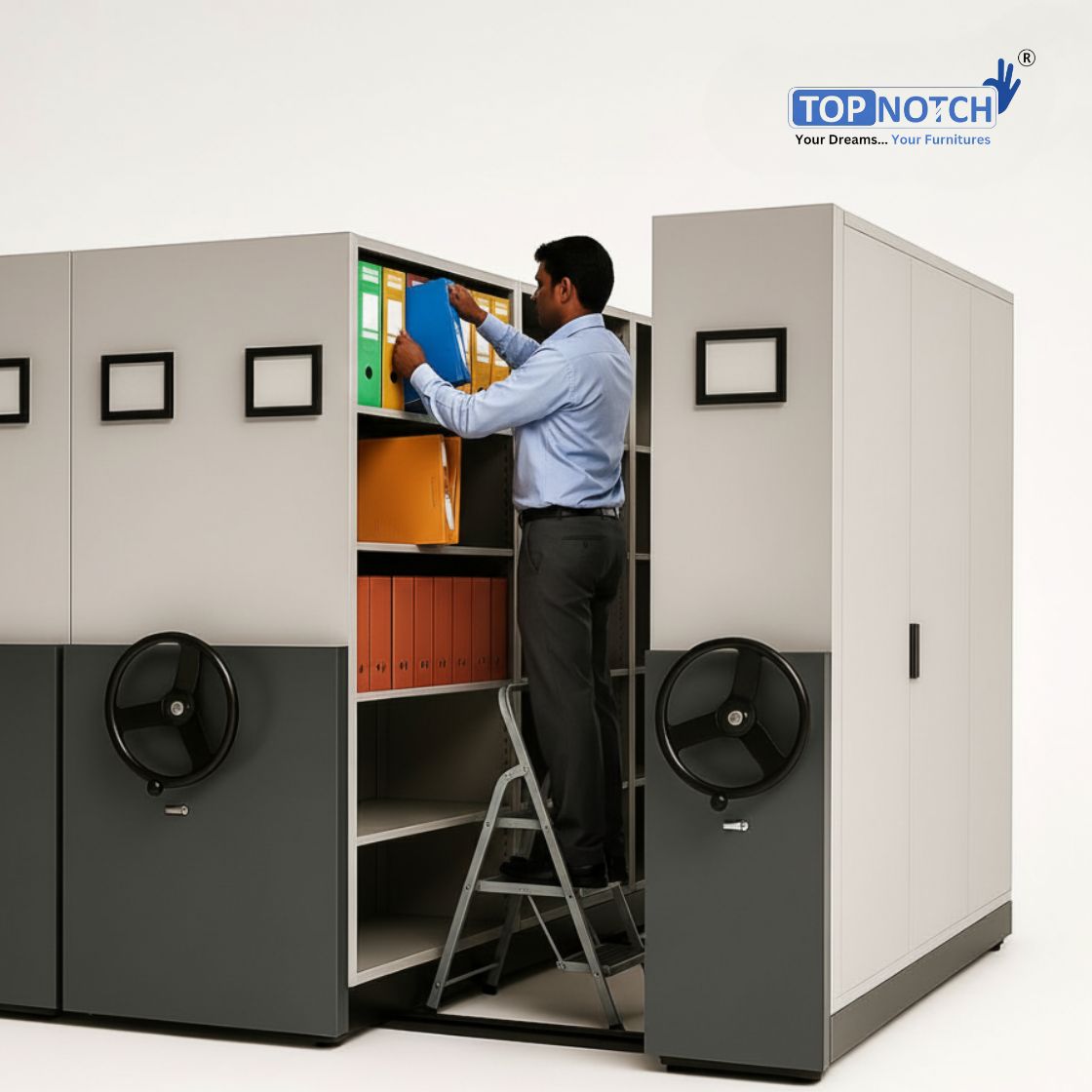

The compactor works on a mechanical chain & sprocket drive system supported by antifriction bearings, allowing effortless movement of fully loaded units.

Safety features include:

• Anti-topple mechanism for stability

• Anti-skid rail flooring to prevent slippage/misalignment

• Centralized locking (single key for the entire system)

• Separate lock provisions for individual bodies (doors optional)

• Black metal indexing plates for quick labeling and retrieval

Packing & Warranty

Delivered in knock-down modular design with gatta box + plastic wrap + itemized packing list for safe transport. Backed by a 1-year manufacturing defect warranty, with AMC & PAN India after-sales support available.

This 3 Bay – 36 Body Compactor is the ideal enterprise-grade solution for corporates, banks, hospitals, government departments, universities, libraries, and industrial warehouses with bulk storage needs.

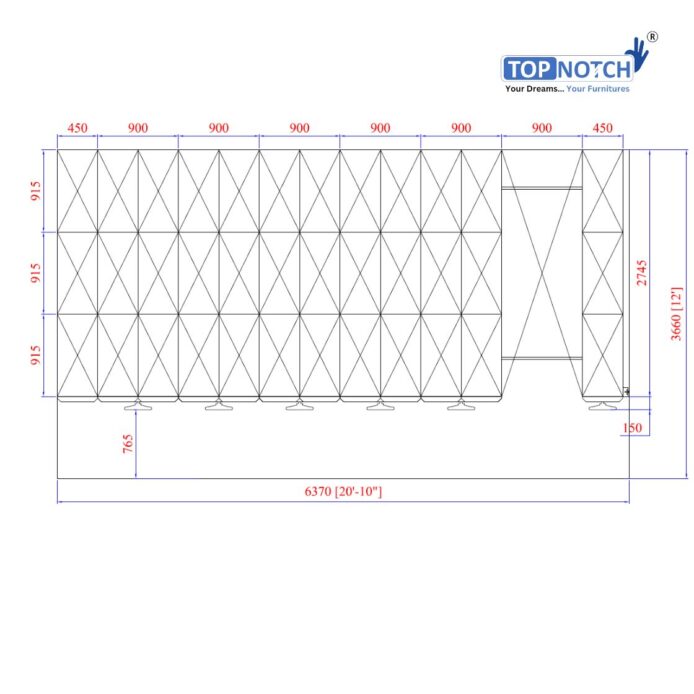

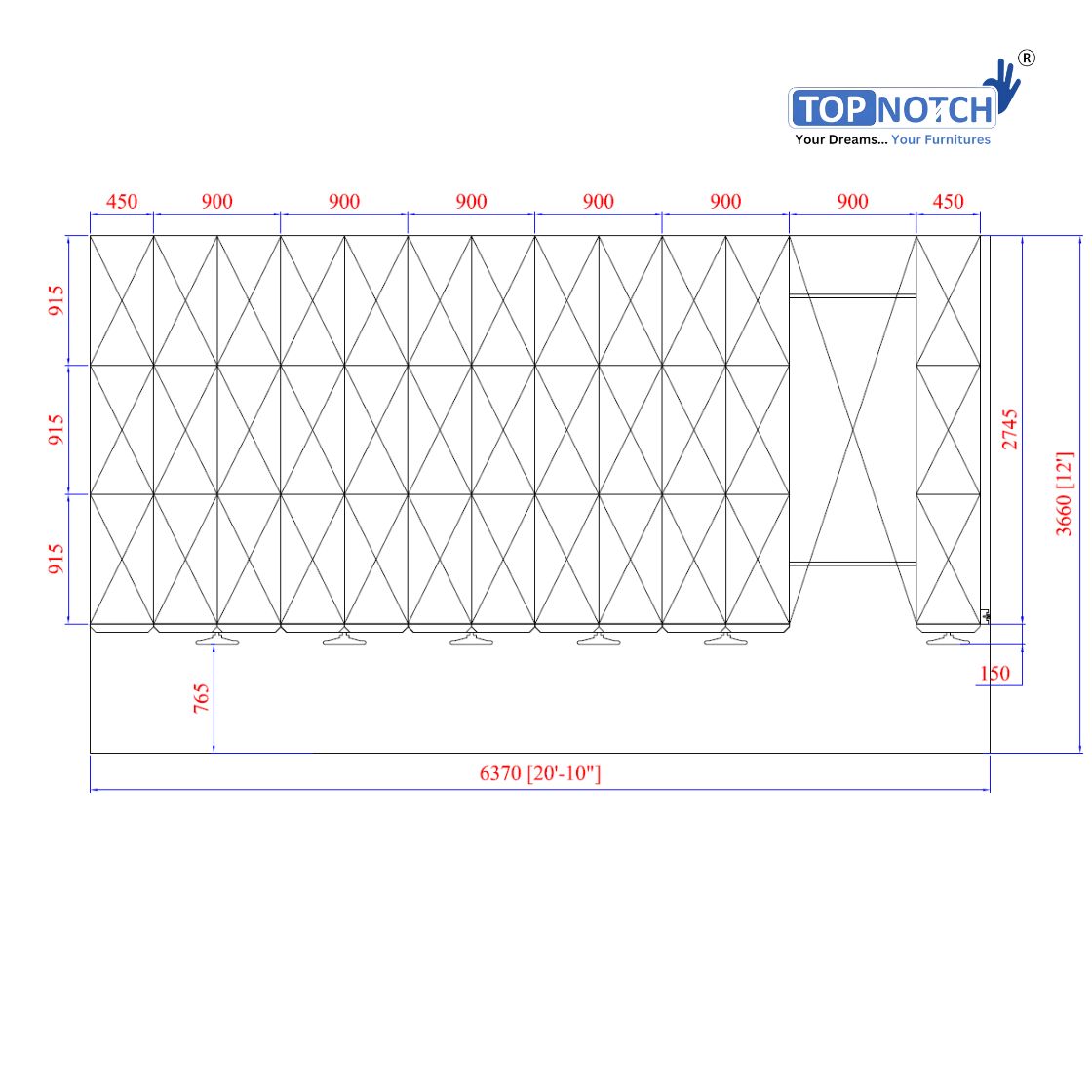

📐 Bay & Row Explanation (Buyer Understanding)

• 1 Bay = One row of cabinets

• This system has 3 Bays

• Per Bay includes:

  • 1 SFF (Single Faced Fixed) → 1 cabinet (static, one-side open)

  • 5 DFM (Double Faced Movable) → 10 cabinets (two sides each)

  • 1 SFM (Single Faced Movable) → 1 cabinet (movable, one-side open)

👉 Formula = (1 + 2×5 + 1) = 12 Bodies per Bay
👉 3 Bays = 36 Bodies Total

---

🚀 Key Features & Benefits

• ✅ Maximum Storage Capacity – 36 bodies, 180 compartments

• ✅ Space Optimization – Saves 50–60% space vs. 36 almirahs

• ✅ Heavy-Duty Shelves – 60–70 Kg UDL per shelf

• ✅ Durable Build – CRCA steel, rust-proof finish

• ✅ Smooth Operation – Mechanical drive with antifriction bearings

• ✅ Advanced Security – Centralized + individual locking systems

• ✅ Safety Assured – Anti-skid, anti-topple, vibration-free design

• ✅ Professional Finish – Dual-tone powder coating, scratch-resistant

• ✅ Easy Identification – Indexing plates for fast retrieval

• ✅ Warranty & AMC – 1-year warranty, PAN India service

---

🎯 Applications

• 📂 Corporate Offices – Finance, HR, legal, and project files

• 🏦 Banks & Insurance Firms – Ledgers, KYC, loan files, compliance records

• 🏥 Hospitals & Research Centers – Patient archives, reports, medical history

• 📚 Universities & Libraries – Journals, dissertations, research papers

• 🏛️ Government Departments – Land records, tenders, archives

• ⚖️ Law Firms & Courts – Case files, judgments, client contracts

• 🏭 Industries & Warehouses – Spare parts, technical manuals, QC records

Comparison: Mobile Compactor (3 Bay – 36 Bodies) vs. 36 Almirahs
