Description

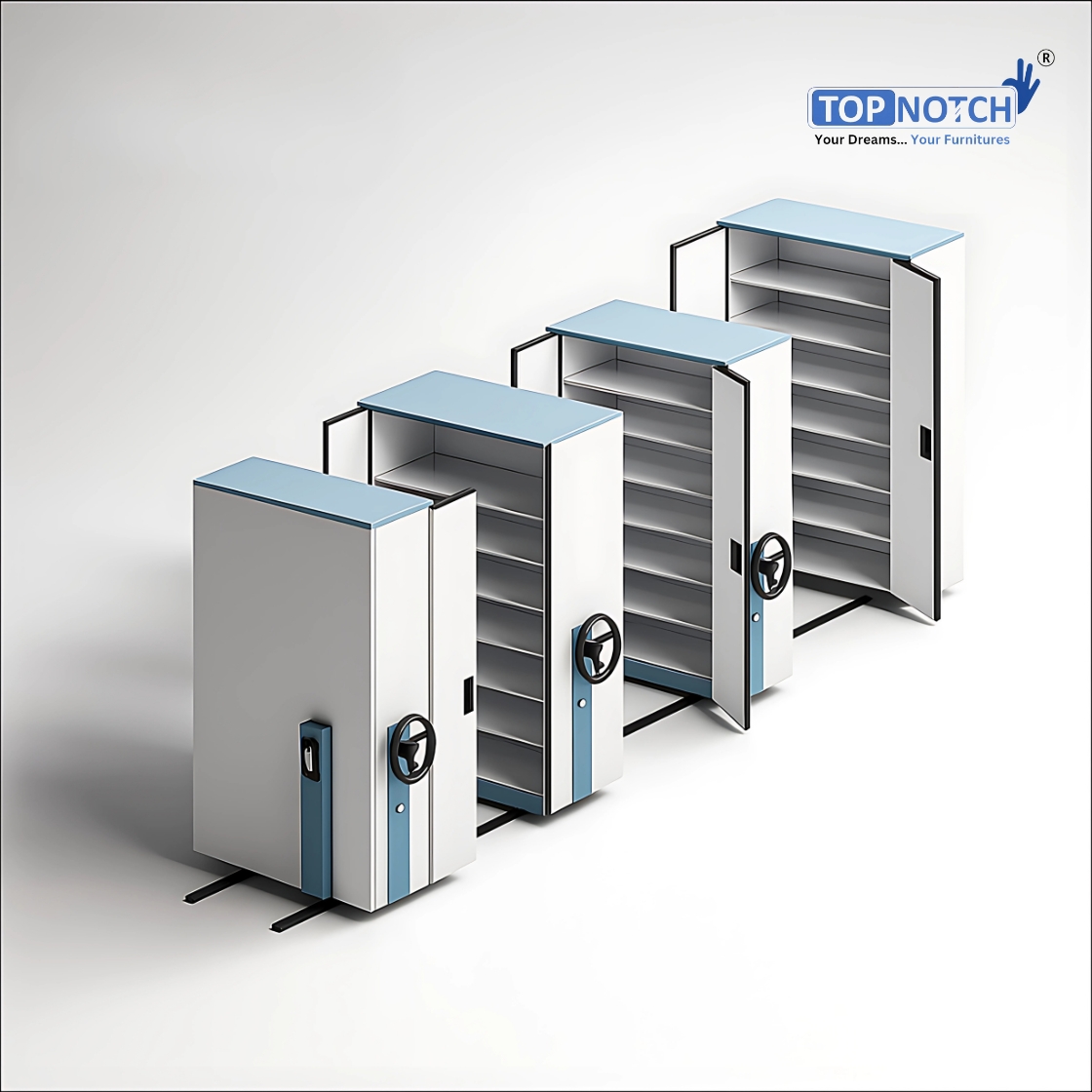

2 Bay – 8 Bodies Non-Standard Mobile Storage Compactor
Dimensions (per body): 2505 (H) × 1180 (W) × 450 (D) mm | Material: CRCA Steel | Finish: Powder Coated | Shelves: 5 Adjustable | Compartments: 6 per body | Total Bodies: 8
Product Description
The Topnotch 2 Bay – 8 Bodies Non-Standard Mobile Storage Compactor is a heavy-duty, space-saving record storage solution designed for banks, hospitals, corporates, PSUs, and government institutions.
Built with premium CRCA Steel (0.8 mm IS 513 D-Grade, TATA/JSW sourced) and finished with epoxy polyester powder coating (40–70 microns), this system delivers long-lasting durability, rust resistance, and a professional finish.
This configuration (SFF-1 + DFM-1 + SFM-1 per bay × 2 bays) results in 8 bodies total, with each cabinet offering 5 adjustable/removable shelves and 6 compartments. Altogether, the system provides 48 compartments, capable of storing thousands of files, box files, or ledgers in a compact footprint.
The mechanical drive system (chain & sprocket with CI wheels and pedestal bearings) ensures smooth, effortless movement, while built-in safety features (anti-topple, anti-skid strips, vibration-free rails) protect both the system and the stored documents.
Storage Capacity
-
Thin Office Files (30–40 mm spine):
-
25–32 per shelf × 5 shelves × 8 bodies = 1000–1280 files
-
-
Box Files (75–80 mm spine):
-
14–16 per shelf × 5 shelves × 8 bodies = 560–640 box files
-
-
Ledgers & Registers (50–70 mm spine):
-
18–20 per shelf × 5 shelves × 8 bodies = 720–800 ledgers
-
Total Load Handling: ~3+ tonnes
Key Highlights
-
✅ Non-Standard Extra Capacity – Wider (1180 mm) and taller (2505 mm) cabinets = 30–40% more storage.
-
✅ 48 Compartments – Systematic storage for 1000+ files.
-
✅ Durable Build – CRCA Steel + 8-tank anti-rust process + powder coating.
-
✅ Mechanical Drive – Smooth operation with chain & sprocket.
-
✅ Safety First – Anti-topple, anti-skid, vibration-free rails.
-
✅ Secure Locking – Central lock with safety nobs on each unit.
-
✅ Modular & Expandable – Knock-down design, bays can be added later.
-
✅ Certified Quality – ISO & BIFMA standards, GEM registered.
Comparison Guide: 2 Bay – 8 Cabinet Standard vs. 2 Bay – 8 Cabinet Non-Standard vs. 8 Normal Almirahs
Introduction
In today’s world, organizations face increasing storage demands. Banks, corporates, hospitals, universities, and government offices all deal with thousands of files, registers, and records every year.
The traditional method of storage — metal almirahs — is no longer sufficient. They consume more floor space, offer limited capacity, require multiple aisles, and lack centralized security.
Modern Mobile Storage Compactors solve these challenges by:
-
Reducing floor space requirements by 60–70%.
-
Offering centralized locking for enhanced security.
-
Providing 2–3× more capacity in the same footprint.
In this comparison, we evaluate:
-
2 Bay – 8 Cabinets Standard Compactor (2120 × 915 × 450 mm)
-
2 Bay – 8 Cabinets Non-Standard Compactor (2505 × 1180 × 450 mm)
-
8 Normal Almirahs (~2000 × 900 × 450 mm each)
Dimensions & Design
| Model | Per Cabinet Size | Total Cabinets | Compartments per Body | Total Compartments |
|---|---|---|---|---|
| 2 Bay – 8 Std Compactor | 2120 × 915 × 450 mm | 8 | 5 | 40 |
| 2 Bay – 8 Non-Std Compactor | 2505 × 1180 × 450 mm | 8 | 6 | 48 |
| 8 Normal Almirahs | ~2000 × 900 × 450 mm | 8 | 4 | 32 |
Takeaway:
-
Non-Standard Compactor → Taller + wider = 48 compartments.
-
Standard Compactor → Slimmer, less height, 40 compartments.
-
Almirahs → Only 32 compartments, lowest efficiency.
Storage Capacity
Thin Office Files (30–40 mm spine)
-
2 Bay – 8 Std Compactor:
20–25 files × 5 shelves × 8 bodies = 800–1000 files -
2 Bay – 8 Non-Std Compactor:
25–32 files × 6 shelves × 8 bodies = 1200–1536 files -
8 Almirahs:
18–20 files × 4 shelves × 8 units = 576–640 files
Box Files (75–80 mm spine)
-
2 Bay – 8 Std Compactor:
11–13 per shelf × 5 shelves × 8 bodies = 440–520 box files -
2 Bay – 8 Non-Std Compactor:
14–16 per shelf × 6 shelves × 8 bodies = 672–768 box files -
8 Almirahs:
10–12 per shelf × 4 shelves × 8 units = 320–384 box files
Ledgers & Registers (50–70 mm spine)
-
2 Bay – 8 Std Compactor:
15–18 per shelf × 5 shelves × 8 bodies = 600–720 ledgers -
2 Bay – 8 Non-Std Compactor:
18–20 per shelf × 6 shelves × 8 bodies = 864–960 ledgers -
8 Almirahs:
12–15 per shelf × 4 shelves × 8 units = 384–480 ledgers
Storage Summary
| Model | Office Files | Box Files | Ledgers |
|---|---|---|---|
| 2 Bay – 8 Std Compactor | 800–1000 | 440–520 | 600–720 |
| 2 Bay – 8 Non-Std Compactor | 1200–1536 | 672–768 | 864–960 |
| 8 Normal Almirahs | 576–640 | 320–384 | 384–480 |
Takeaway:
-
Non-Standard Compactor holds ~2.5× more than almirahs.
-
Standard Compactor doubles almirah capacity.
-
Almirahs are weakest in every category.
Load Handling
-
2 Bay – 8 Std Compactor:
40 shelves × 60–70 Kg = 2.4–2.8 tonnes -
2 Bay – 8 Non-Std Compactor:
48 shelves × 60–70 Kg = 2.9–3.4 tonnes -
8 Almirahs:
32 shelves × 40–50 Kg = 1.28–1.6 tonnes
Non-Standard Compactor = highest load capacity.
Security
-
Compactors (Std & Non-Std):
-
Centralized locking system (one master lock).
-
Optional cabinet-level locks.
-
Safety nobs prevent accidental movement.
-
-
Almirahs:
-
Each has separate lock.
-
Managing multiple keys is inconvenient.
-
Lower theft protection.
-
Durability & Finish
-
Compactors:
-
CRCA Steel (0.8 mm, TATA/JSW) with HR Steel base (3.15 mm).
-
Powder-coated (40–70 microns), 8-tank anti-rust treatment.
-
Lifespan: 15–20 years.
-
-
Almirahs:
-
Mild Steel (~0.6–0.7 mm), painted.
-
Less corrosion resistance.
-
Lifespan: 7–10 years.
-
Installation & Space Efficiency
-
Compactors:
-
Installed on rails, modular knockdown.
-
Need only one aisle (750–900 mm).
-
Save 60–70% space vs. almirahs.
-
-
Almirahs:
-
Each requires separate aisle access.
-
Consume 2–3× more space.
-
Cost vs. ROI
-
2 Bay – 8 Std Compactor:
Medium cost, replaces ~10–12 almirahs. ROI in 5–6 years. -
2 Bay – 8 Non-Std Compactor:
Slightly higher cost, replaces ~14–16 almirahs. ROI in 4–5 years. -
8 Almirahs:
Low initial cost, but needs more space, shorter life, and frequent replacement.
Applications
-
2 Bay – 8 Standard: Medium organizations with 1000+ files.
-
2 Bay – 8 Non-Standard: Large institutions, banks, universities, PSUs with 1500+ files.
-
8 Almirahs: Small setups with basic records only.
Comparison Table
| Feature | 2 Bay – 8 Std Compactor | 2 Bay – 8 Non-Std Compactor | 8 Normal Almirahs |
|---|---|---|---|
| Dimensions | 2120 × 915 × 450 mm | 2505 × 1180 × 450 mm | ~2000 × 900 × 450 mm |
| Compartments | 40 | 48 | 32 |
| Office Files | 800–1000 | 1200–1536 | 576–640 |
| Box Files | 440–520 | 672–768 | 320–384 |
| Ledgers | 600–720 | 864–960 | 384–480 |
| Load Capacity | 2.4–2.8 tonnes | 2.9–3.4 tonnes | 1.28–1.6 tonnes |
| Security | Central Lock | Central Lock | Multiple Keys |
| Lifespan | 15–20 yrs | 15–20 yrs | 7–10 yrs |
| Space Saving | 60–70% | 60–70% | No saving |
| ROI | 5–6 years | 4–5 years | Poor |
| Best For | Medium Orgs, Hospitals | Banks, PSUs, Universities | Small Offices |
-
2 Bay – 8 Non-Standard Compactor → Best choice for maximum capacity, durability, and ROI. Stores 1200–1500+ files in compact space.
-
2 Bay – 8 Standard Compactor → Balanced choice for medium organizations, still much better than almirahs.
-
8 Almirahs → Outdated option; low storage, high space usage, short lifespan.
Non-Standard Compactor = 2.5× more efficient than almirahs + faster ROI.
