Mobile File Storage System – Compactor Type – CRCA Sheet, Powder Coated | Topnotch

 208,500.00

Feature Specification / Benefit
Bay Configuration 2 Bay × 8 Bodies – Space-saving compact design
Per Body Dimensions 2120mm (H) × 915mm (W) × 450mm (D) – Standardized modular size
Construction Weldless Clinch-Joint – Strong, vibration-free & long-lasting
Material TATA CRCA Steel Sheet (0.8mm, IS:513 D Grade) – Premium quality steel
Frame 3.15mm HR Base Sheet, 2mm HR Mechanism Plate – Extra stability & durability

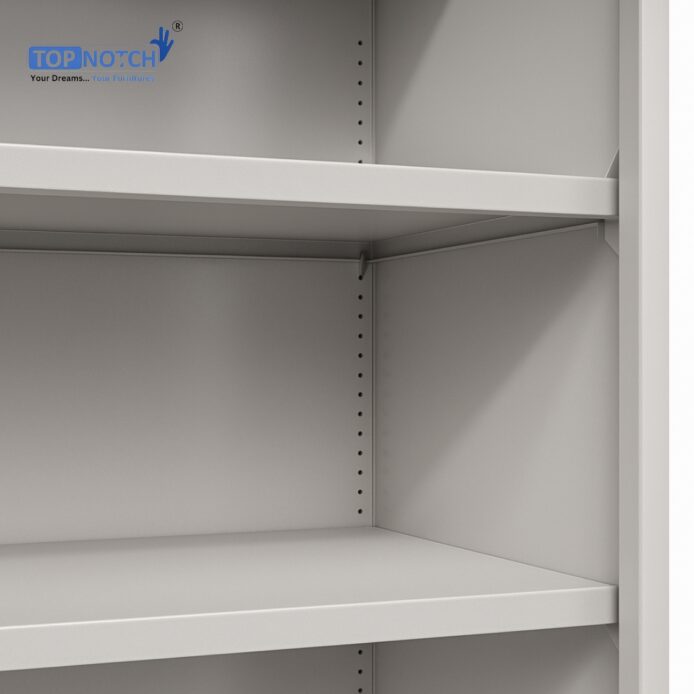

Shelving 4 Adjustable/Removable Shelves per Body (Total 32) – Flexible storage options
Load Capacity 60–70 kg UDL per shelf – Heavy-duty storage capability
Drive Mechanism ½” Diamond Brand Chain, CI Wheels (90×32mm) – Smooth & effortless movement
Shaft System 20mm Steel Shaft with Sprockets, Pedestal, Bearings – Reliable drive system

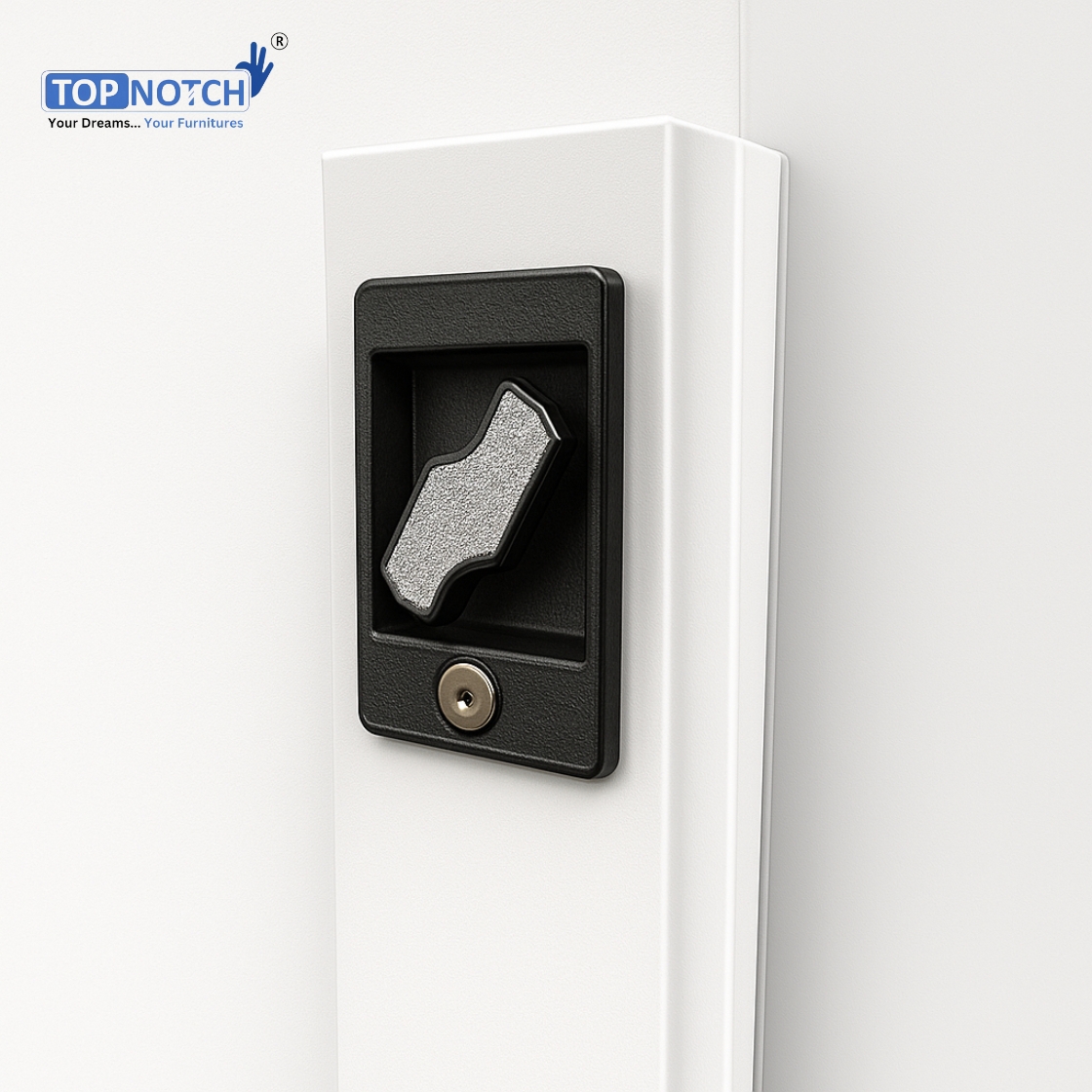

Locking Central Locking System – Enhanced security for stored items
Finish Epoxy Polyester Powder Coating (40–60 microns) – Scratch & corrosion resistance
Anti-Rust Treatment 8-Tank Process (Degreasing, Pickling, Phosphating) – Long life & protection
Certifications ISO 9001, 13485, 14001, 45001, 50001, BIFMA, GREENGUARD – Quality assured
Installation Free Site Visit, CAD Drawing, Professional Installation – Hassle-free setup
Packing Wooden/Gatta Box + Plastic Wrap + Itemised List – Safe & damage-free delivery
OEM Plant In-house Testing Lab – Stringent quality checks before dispatch
Availability PAN India Delivery – Serving all major cities

Product Specifications / Bullet Points

  • Brand: Topnotch – Leading Manufacturer from Jaipur, Rajasthan

  • Product Type: Mobile Storage Compactor / Mobile File Storage System

  • Bay Configuration:

    • 2 Bay Push-Pull Type

    • 8 Bodies (Movable Storage Units)

    • 4 Shelves per Body – 5 Compartments Total

  • Material:

    • 0.8 mm CRCA Sheet (Cold Rolled Close Annealed – High Strength Steel)

    • Heavy-duty Base Channels & Drive Mechanism for smooth operation

  • Finish:

    • Powder Coated for Rust Resistance & Long Life

    • Standard colors: Grey, Blue, Off-White (Custom options available)

  • Mechanism:

    • Smooth Push-Pull Manual Movement on Rail Tracks

    • Option for Mechanical or Chain-Driven Compactors (on request)

  • Locking: Centralized Locking for Entire System or Individual Units

  • Load Capacity: Approx. 80–100 kg per shelf (customizable)

  • Use Cases:

    • File & Document Storage for Offices, Banks, Government Depts.

    • Record Rooms, Warehouses, Corporate Archives

  • Customization: Custom body sizes, shelf count, bays, and height available

  • Assembly: On-Site Installation by Trained Technicians

  • Warranty: 2 Years on Manufacturing Defects

  • Origin: Made in India –

  • Delivery: PAN India Dispatch & Installation Support

Description

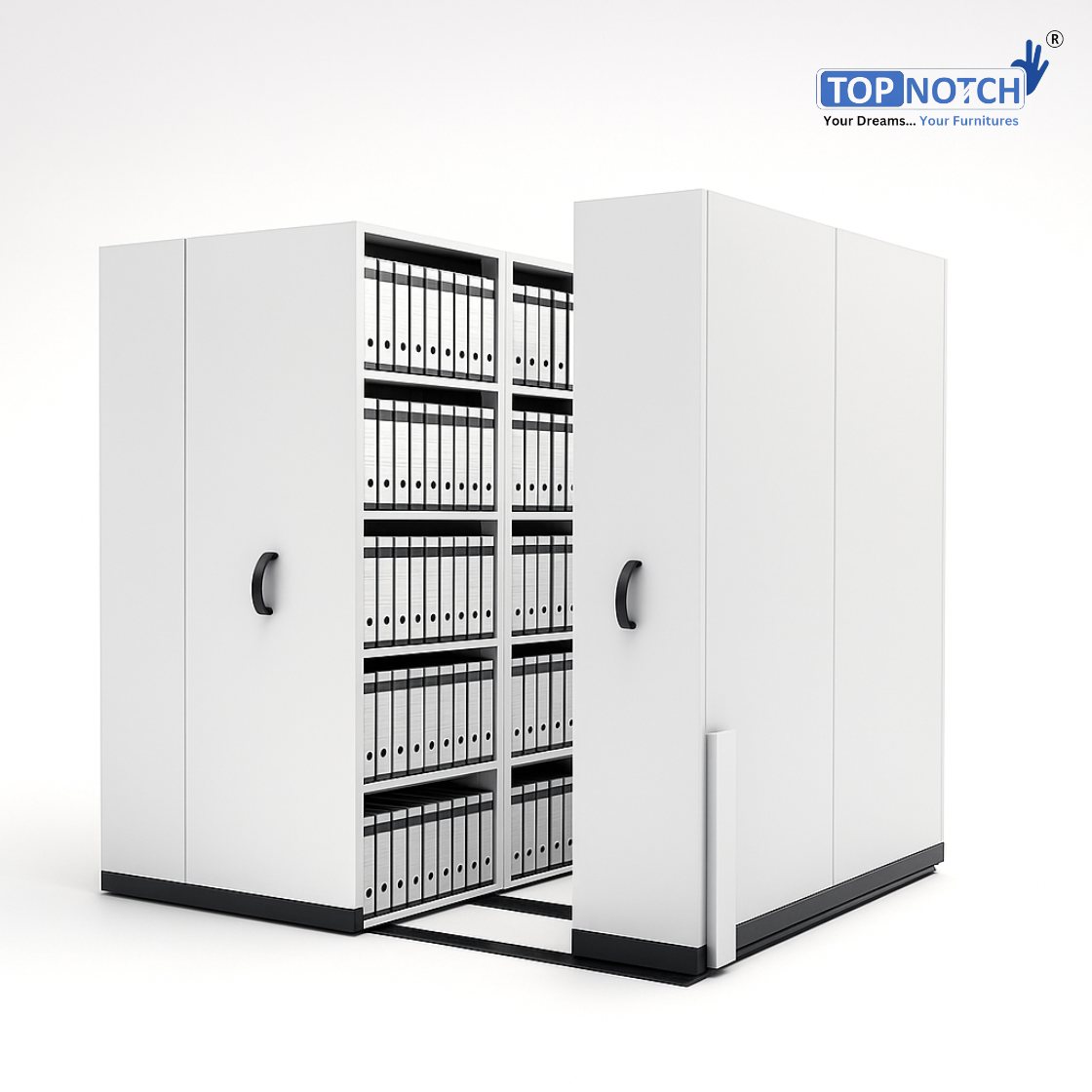

Topnotch Mobile File Storage Compactor is a high-efficiency space-saving solution designed for organized, secure, and heavy-duty storage. Featuring 8 movable bodies, 4 adjustable shelves per unit, and built from durable 0.8 mm CRCA powder-coated sheet, it’s ideal for any setup requiring high-volume file or record storage with a minimal footprint.



Topnotch, headquartered in Jaipur, Rajasthan, is a trusted manufacturer of mobile storage systems and office furniture across India. Our mobile compactors are used by government departments, corporates, banks, institutions, and industrial warehouses, known for their durability, smooth operation, and efficient after-sales service.



Topnotch offer Mobile compactor Storage Systems are designed in high quality .These high storage capacity racks are available in two types : Manual (Hand Push type), Mechanically operated (chain driven) system.
The choice depends on the requirements and space available at customer premises. Our rail mounted racks are suitable for all kinds of storage requirements. Being a quality oriented firm, we provide best quality products with sales after service. With our vast experience in this field, we are expert solution provider in all kind of storage products.
Full



Central Locking – Safety Lock – Sound Buffer Button – Pre-coated / Powder Epoxy Coating – Adjustable Shelf – Space Saver



This price is for per body bodies compactor 2 bay Mechanical Type Only Size : 915 W X 457 D X 2150 H
