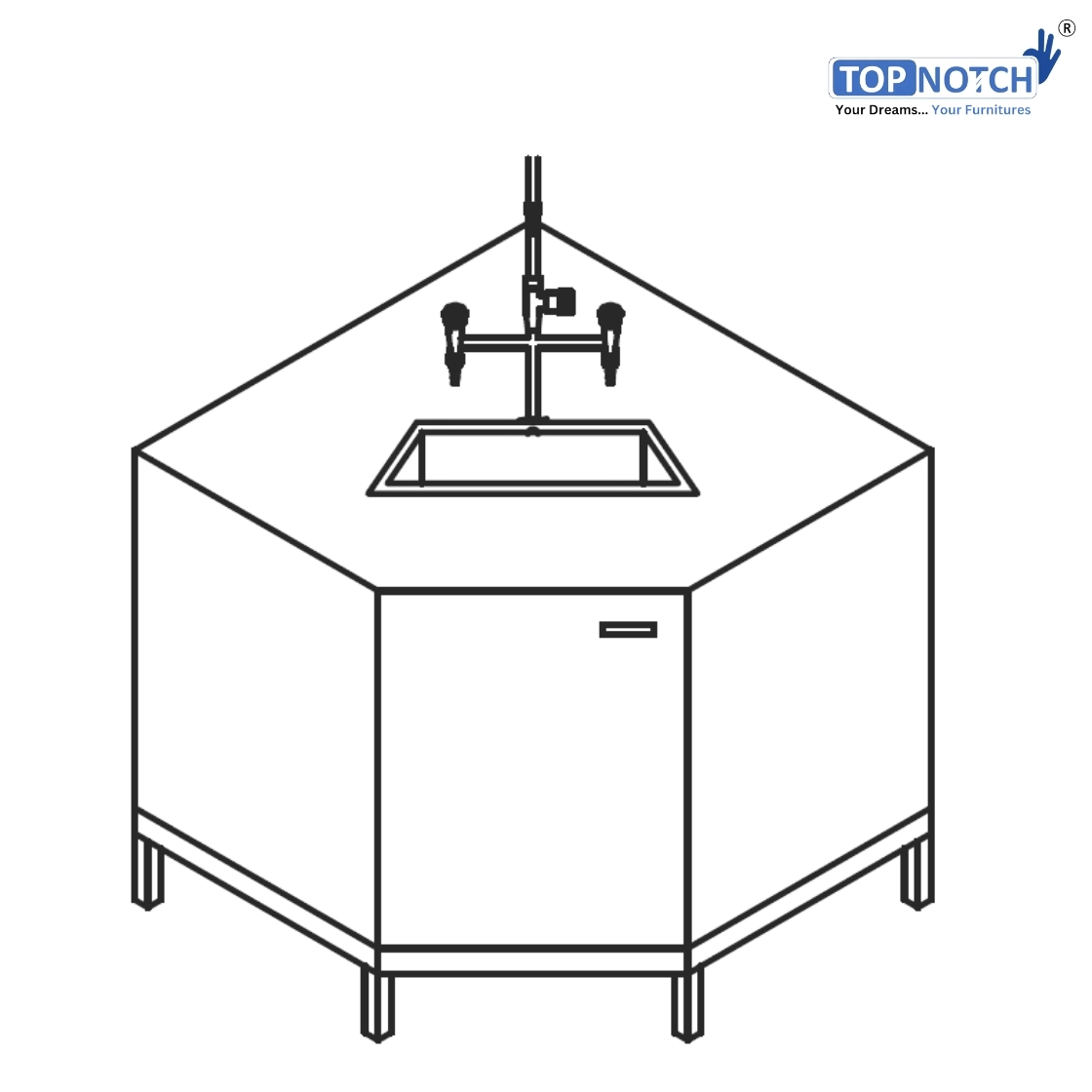

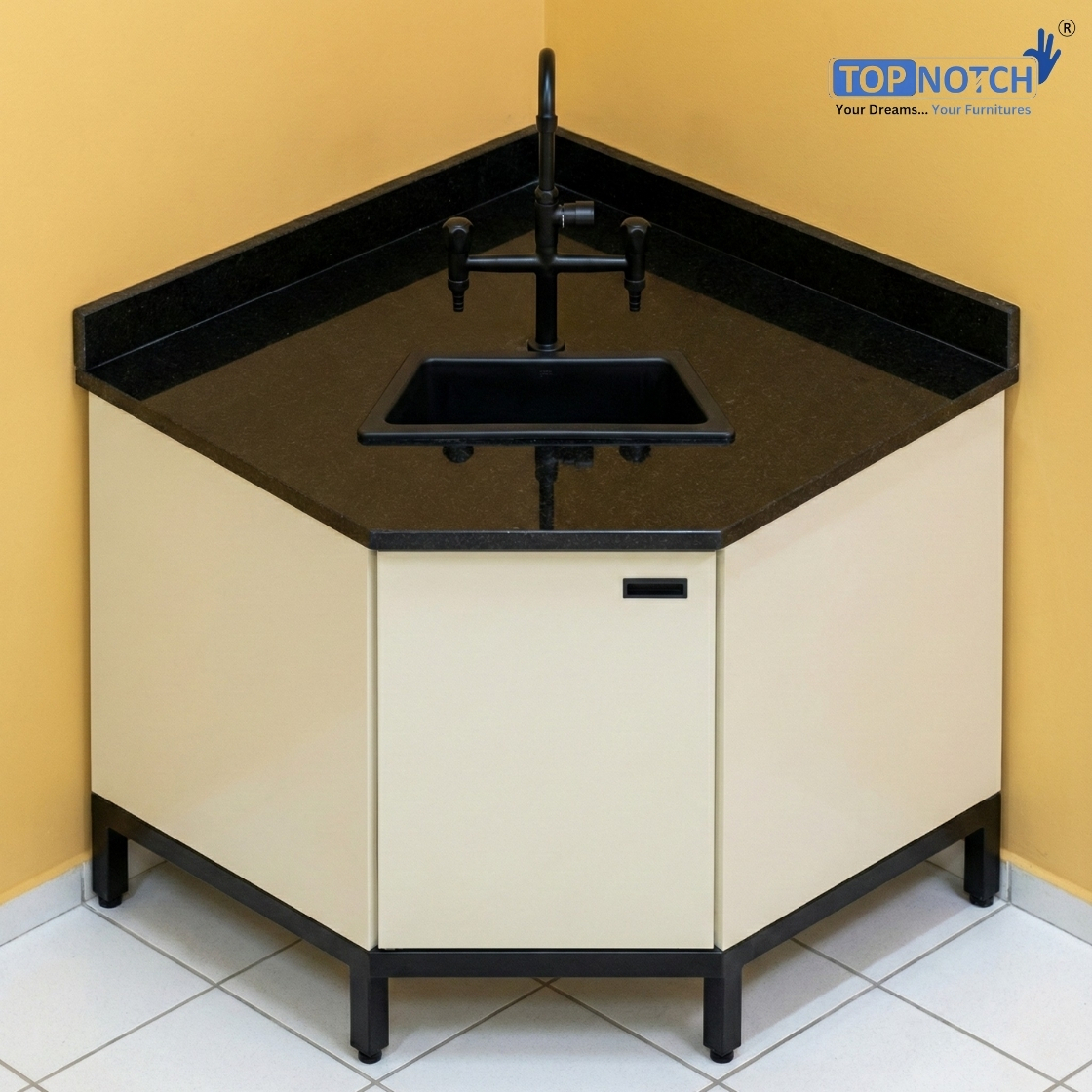

Corner Laboratory Cabinet with PP Sink | Modular Corner Unit with Single Shutter | Black Granite Top | CRCA Steel Construction

 66,120.00

Parameter Specification
Product Type Corner Laboratory Cabinet with Sink
Brand Topnotch
Design Modular
Overall Size 1050 (W) × 1050 (D) × 900 (H) mm
Storage Configuration 1 Swing/Openable Shutter
Sink Type PP (Polypropylene), Chemical Resistant
Tap Type Three-Way Laboratory Water Tap
Body Material 0.8 mm CRCA Steel (TATA / JSW)
Steel Standard IS-513, D Grade
Frame Construction ERW Tube 30 × 30 × 1.6 mm
Worktop Material Black Granite
Worktop Thickness 16–20 mm
Granite Finish Fully Polished Edges
Shutter Hardware EBCO Hinges & Premium Lab Hardware
Locking Provision Optional
Base Support Adjustable Leveller Legs
Surface Finish Epoxy Polyester Powder Coated
Coating Thickness 40–60 microns
Anti-Rust Treatment 8-Tank Pretreatment Process
Applicable Standards IS 6005-1995 & IS 3618-1966
Installation On-site Assembly
Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Description

The Topnotch Corner Cabinet with PP Sink is a purpose-built modular laboratory furniture unit designed to efficiently utilize corner spaces in chemistry, biology, and multidisciplinary laboratories. Engineered for safety, durability, and workflow optimization, this corner cabinet integrates a chemical-resistant Polypropylene (PP) sink, a three-way laboratory water tap, and enclosed under-counter storage, making it ideal for wash-up zones, reagent handling areas, and wet-process laboratory operations.

Constructed using 0.8 mm thick prime CRCA steel (TATA / JSW, IS-513, D Grade) and reinforced with a heavy-duty ERW tubular frame, the cabinet offers excellent resistance to corrosion, moisture, and chemical exposure. The black granite worktop (16–20 mm thick) with fully polished edges ensures a hygienic, scratch-resistant, and long-lasting working surface, suitable for routine laboratory cleaning protocols.

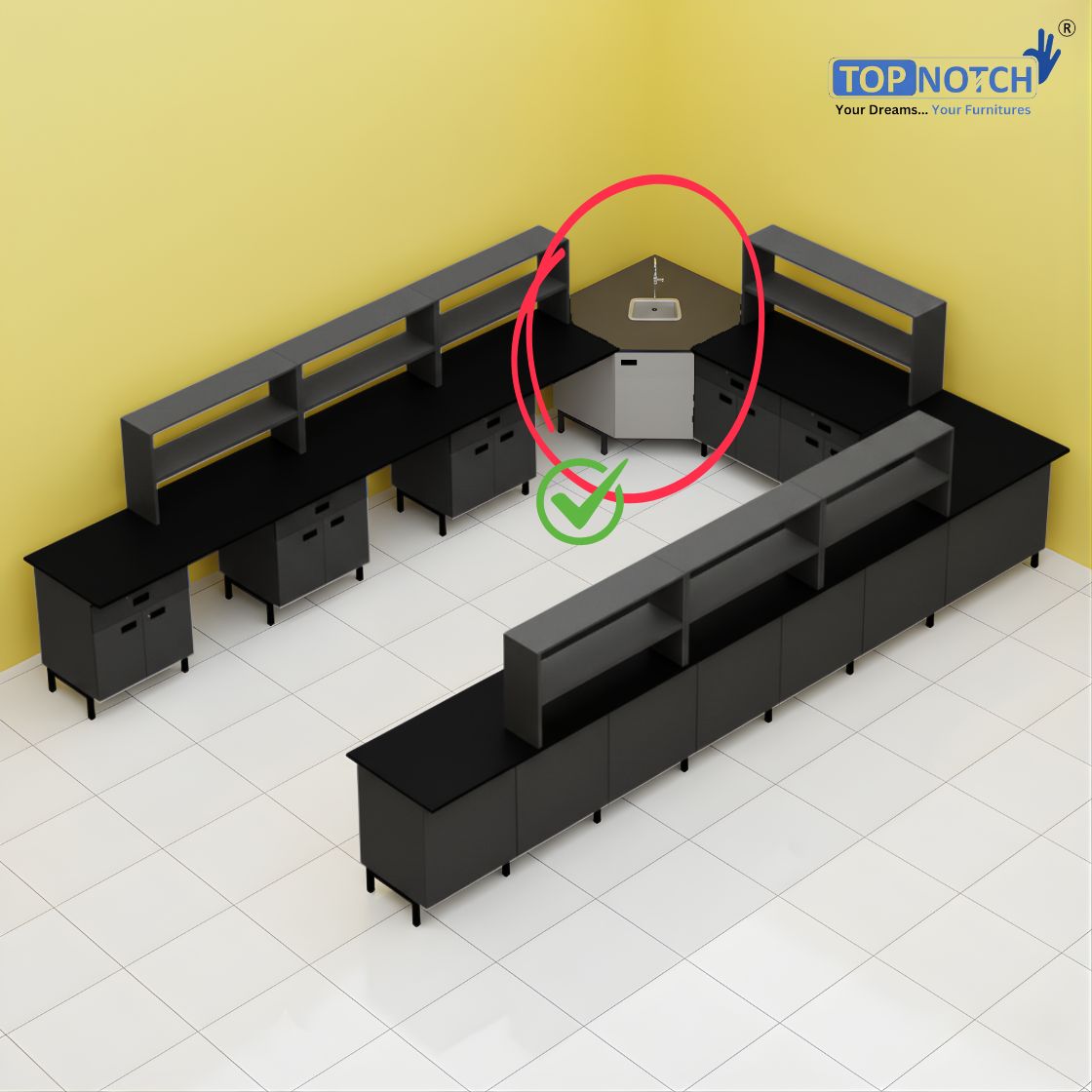

The corner configuration enhances space efficiency, especially in L-shaped and U-shaped laboratory layouts, while the single swing/openable shutter provides secure storage for plumbing access items, cleaning materials, or lab accessories. The modular construction allows easy transportation, fast on-site installation, and seamless integration with Topnotch island benches, wall benches, and reagent rack systems.


KEY FEATURES

  • Corner-optimized modular laboratory cabinet

  • Integrated PP (Polypropylene) sink for chemical resistance

  • Three-way laboratory water tap (hot / cold / service line compatibility)

  • Heavy-duty CRCA steel construction

  • Black granite laboratory-grade worktop

  • Single swing/openable shutter for under-sink access

  • Adjustable leveller legs for perfect floor alignment

  • Compatible with island, wall-side & corner lab layouts



CONSTRUCTION DETAILS

Cabinet Body

  • Fabricated from prime CRCA steel sheets

  • High resistance to corrosion, chemicals, and humidity

  • Designed for long-term laboratory usage

Structural Frame

  • ERW tubular frame ensures rigidity and load stability

  • Supports granite top, sink load, and plumbing fittings

Corner Worktop

  • Black granite surface suitable for wet lab operations

  • Polished edges for safety and premium appearance

  • Seamless corner geometry for optimal space utilization

Sink & Plumbing

  • PP sink resistant to acids, alkalis, and solvents

  • Three-way laboratory tap for controlled water flow

  • Designed for easy plumbing access and maintenance

Surface Treatment

  • 8-stage anti-rust pretreatment

  • Epoxy polyester powder coating (40–60 microns)

  • Durable, lab-grade protective finish


APPLICATIONS

Ideal for use in:

  • Chemistry laboratories

  • Biology laboratories

  • Physics laboratories

  • Pharmaceutical & R&D labs

  • Educational institutions

  • Government & forensic laboratories

  • Industrial quality-control labs


WHAT’S INCLUDED

  • 1 × Corner Laboratory Cabinet Unit

  • 1 × Black Granite Worktop

  • 1 × PP (Polypropylene) Sink

  • 1 × Three-Way Laboratory Water Tap

  • 1 × Swing/Openable Shutter

  • Adjustable leveller legs

  • Standard hinges & fittings

(Plumbing connections, valves, and accessories supplied as per project scope)


WHY CHOOSE TOPNOTCH?

  • Specialized expertise in laboratory furniture systems

  • Use of TATA / JSW CRCA steel & EBCO hardware

  • Modular, scalable, and upgrade-ready designs

  • CAD-based planning & BOQ support

  • Professional on-site installation

  • PAN-India AMC & service network

  • Trusted partner for education, pharma & government labs


IMPORTANT NOTE

This corner cabinet is a modular add-on unit and can be customized for:

  • Additional shutters or internal shelving

  • Locking mechanisms

  • Color combinations

  • Integration with island benches, wall benches, or reagent racks

📐 We strongly recommend consulting a Topnotch Sales Representative for CAD drawings, layout planning, safety zoning, and estimation before finalization.
