Sale!

Topnotch Modular Laboratory Island Table with EMC Electrical Raceway, PP Sink Units & Storage Pedestals | 3000W × 1500D × 900H mm

 261,254.00

  • Technical Specifications

    Specification Details

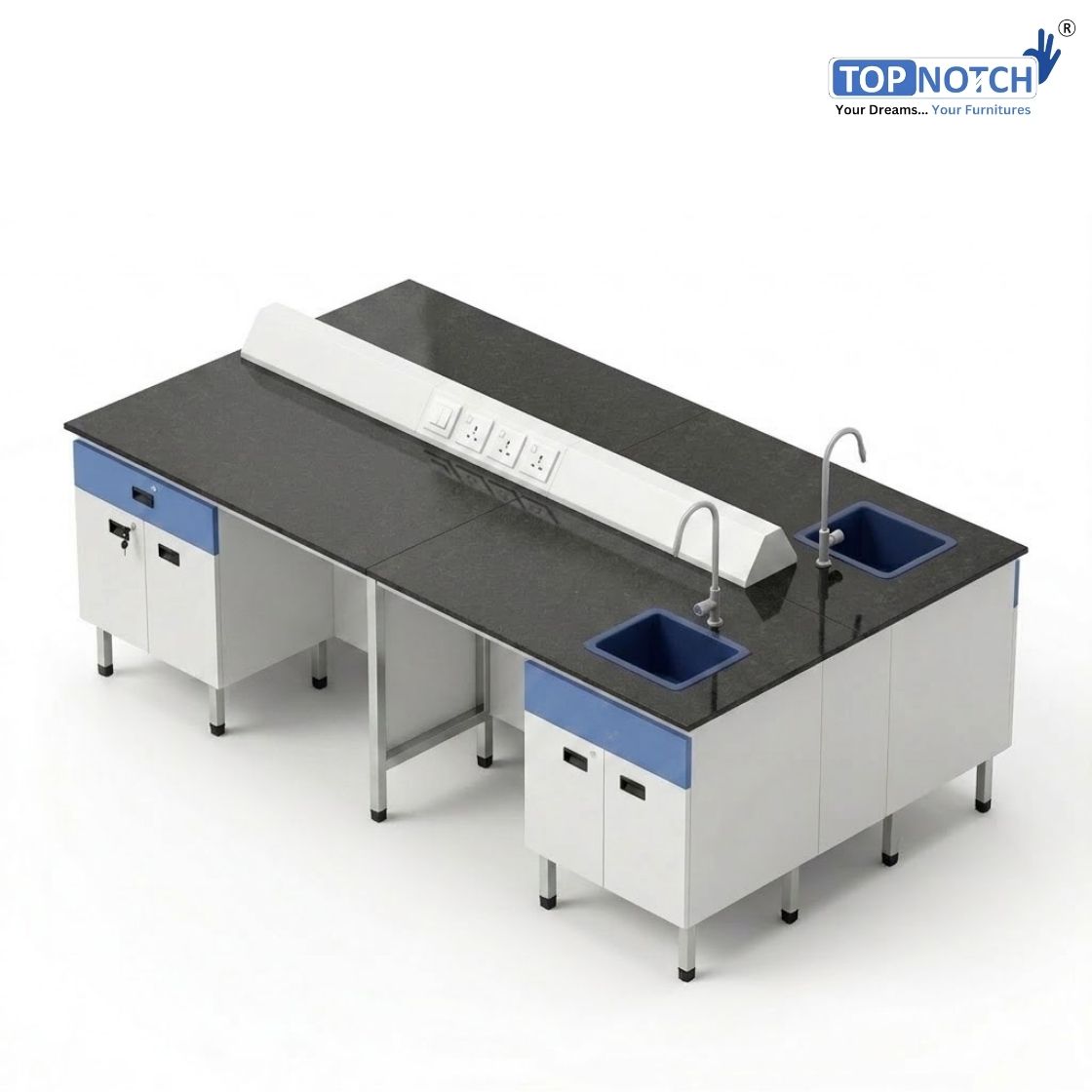

    Product Name Modular Laboratory Island Table with EMC Raceway & PP Sink
    Brand Topnotch Laboratory Furniture
    Product Type Modular Laboratory Storage Pedestal
    Design Add-On Unit

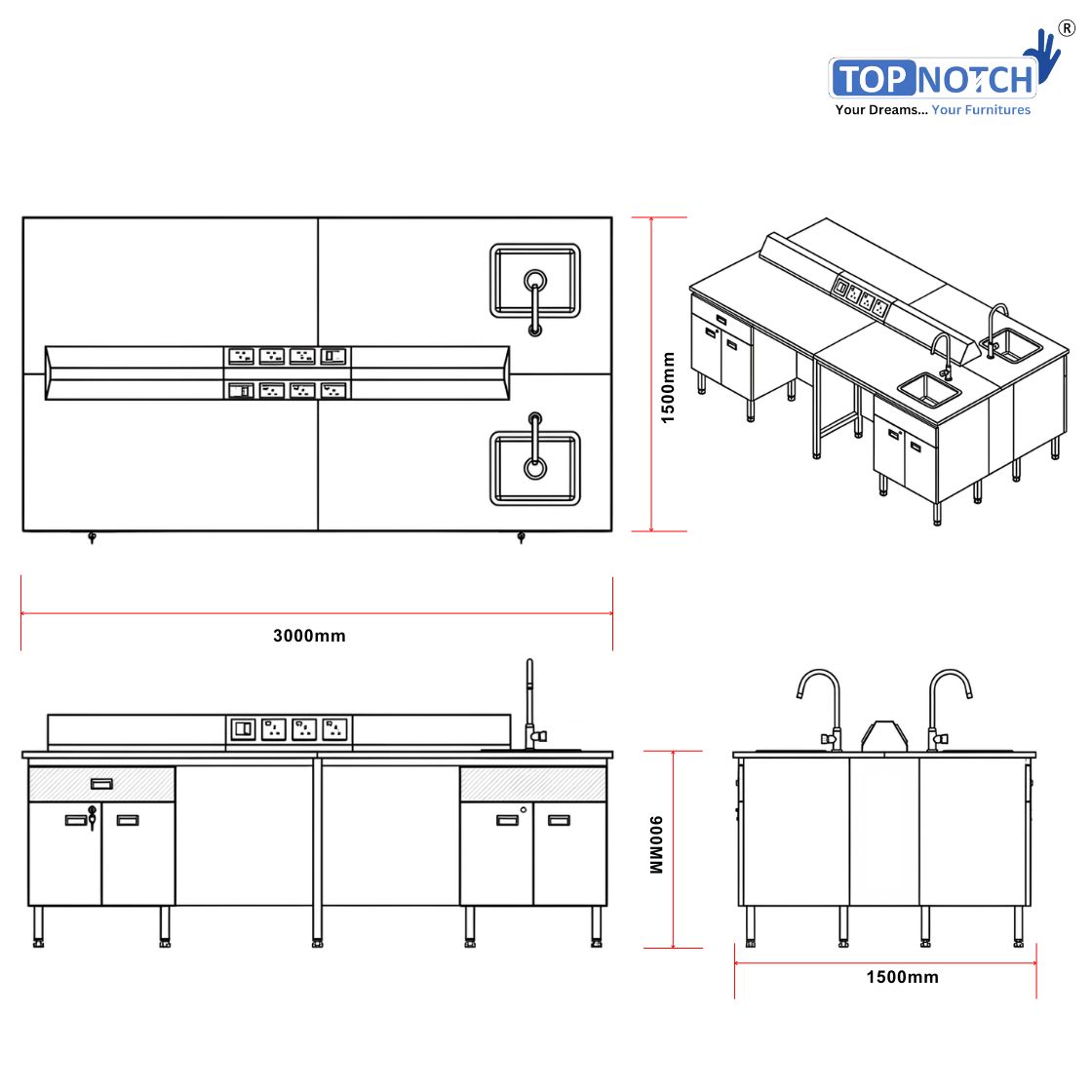

    Overall Layout Size 3000 (W) × 1500 (D) × 900 (H) mm
    Storage Pedestal Qty 02 Nos.
    Sink Pedestal Qty 02 Nos.
    Leg Space Qty 04 Nos.
    EMC Raceway Qty 03 Nos.
    Storage Configuration 1 Drawer + 2 Swing Shutters
    Internal Storage 1 Adjustable Shelf
    Sink Material Polypropylene (PP)
    Body Material 0.8 mm CRCA Steel
    Steel Standard IS-513 D Grade
    Frame Construction ERW Tube 30 × 30 × 1.6 mm
    Worktop Material Black Granite
    Granite Thickness 16–20 mm
    Edge Finish Fully Polished Granite Edges
    Drawer Mechanism Smooth Sliding Channels
    Hardware EBCO Hinges & Premium Fittings
    Locking Facility Optional
    Levelling System Adjustable Leveller Legs
    Surface Finish Epoxy Polyester Powder Coated
    Coating Thickness 40–60 Microns
    Anti-Rust Treatment 8-Tank Pretreatment Process
    Standards Followed IS 6005-1995 & IS 3618-1966
    Installation On-Site Assembly
Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Description

Product Overview

The Topnotch Modular Laboratory Island Table with EMC Raceway and Integrated PP Sink Units is a premium laboratory workstation engineered to provide superior functionality, organized storage, utility integration, and exceptional durability for modern laboratory environments. Designed for centralized laboratory operations, this workstation combines spacious work surfaces, integrated washing facilities, electrical utility management, and modular storage solutions into one highly efficient laboratory furniture system.

Manufactured using premium CRCA steel conforming to IS-513 D Grade standards, reinforced with heavy-duty ERW tubular construction, and finished with advanced epoxy polyester powder coating, this laboratory island workstation delivers long-term performance even under demanding laboratory conditions.

The workstation incorporates:

  • 02 Storage Pedestal Units (1 Drawer + 2 Swing Shutters)
  • 02 PP Sink Pedestal Units (2 Swing Shutters)
  • 04 Leg Space Working Sections
  • 03 EMC Electrical Raceway Units
  • 02 Laboratory Grade PP Sinks
  • Black Granite Chemical Resistant Worktop
  • Adjustable Leveller Legs

The spacious 3000 mm × 1500 mm island configuration allows multiple users to work simultaneously while maintaining organized workflows, easy utility access, and enhanced laboratory efficiency.

Ideal for pharmaceutical laboratories, educational institutions, research centers, biotechnology facilities, chemical laboratories, healthcare laboratories, and industrial testing facilities, this workstation combines performance, ergonomics, safety, and aesthetics in a single modular solution.


Product Description

The Topnotch Modular Laboratory Island Table is specifically designed to meet the evolving requirements of modern laboratories where productivity, durability, utility accessibility, and safety are essential. The island-style workstation promotes collaborative laboratory operations by providing unrestricted access from all sides while maximizing available workspace.

The structure is fabricated using 0.8 mm CRCA steel sheets sourced from reputed manufacturers such as TATA Steel and JSW Steel. The steel complies with IS-513 D Grade standards, ensuring superior dimensional stability, load-bearing capacity, and long-term structural reliability.

The workstation features a premium laboratory-grade black granite worktop with fully polished edges. Granite is widely recognized for its excellent resistance to chemicals, moisture, heat, impact, and abrasion, making it an ideal surface for laboratory applications involving chemicals, reagents, analytical instruments, and testing procedures.

Integrated within the workstation are two polypropylene (PP) sinks with laboratory-grade faucet provisions. The PP sink units offer excellent resistance against acids, alkalis, solvents, and aggressive laboratory chemicals, making them ideal for washing and cleaning applications.

The centrally mounted EMC (Electric Modular Conduit) Raceway System provides organized utility management by accommodating electrical wiring, communication cables, and utility provisions. The raceway improves workplace safety by reducing cable clutter while allowing convenient access to power sources for laboratory instruments and equipment.

The workstation includes dedicated storage pedestals featuring drawers and shutter cabinets for secure storage of laboratory tools, glassware, consumables, chemicals, documentation, and accessories. Open leg-space sections provide comfortable seating arrangements for users performing extended laboratory procedures.

The complete structure undergoes a scientifically controlled 8-Tank Pretreatment Process followed by Epoxy Polyester Powder Coating with a thickness of 40–60 microns. This treatment ensures exceptional resistance to corrosion, chemicals, moisture, and daily laboratory wear.

The result is a robust, aesthetically pleasing, and highly functional laboratory workstation suitable for a wide range of laboratory applications.


Configuration Details

Storage Pedestal Units

Quantity: 02 Nos.

Each pedestal includes:

  • 1 Drawer
  • 2 Swing Shutters
  • Adjustable Internal Shelf
  • Optional Locking System
  • Premium Handle Assembly
  • Smooth Sliding Channels

Sink Pedestal Units

Quantity: 02 Nos.

Features include:

  • Polypropylene Sink Integration
  • 2 Swing Shutters
  • Plumbing Utility Provision
  • Chemical Resistant Construction
  • Easy Maintenance Access

Leg Space Sections

Quantity: 04 Nos.

Provides:

  • Comfortable User Seating
  • Instrument Placement Space
  • Improved Ergonomics
  • Better Workflow Management

EMC Electrical Raceway

Quantity: 03 Nos.

Provides:

  • Electrical Cable Routing
  • Utility Management
  • Organized Wiring System
  • Easy Future Expansion
  • Improved Safety

Note: Switches, sockets, wiring, and electrical accessories are not included unless specifically requested.


Key Features

✅ Central Island Laboratory Design

Supports multi-user operation and collaborative laboratory workflows.

✅ Integrated PP Sink System

Provides convenient washing facilities directly within the workstation.

✅ EMC Utility Raceway

Ensures safe and organized electrical cable management.

✅ Heavy-Duty Steel Construction

Manufactured using premium CRCA steel and reinforced tubular framework.

✅ Chemical Resistant Granite Worktop

Suitable for laboratory environments involving chemicals and reagents.

✅ Spacious Working Surface

Large workspace for analytical, research, and testing activities.

✅ Ergonomic Leg Space Design

Enhances user comfort during extended laboratory operations.

✅ Premium Storage Facilities

Secure storage for laboratory equipment and consumables.

✅ Adjustable Internal Shelves

Flexible storage organization.

✅ Anti-Corrosive Surface Protection

Advanced powder coating improves durability and appearance.

✅ Adjustable Leveller Legs

Provides stability on uneven flooring.

✅ Modular Construction

Allows customization and future expansion.

Body Construction

The workstation is fabricated using industrial-grade steel and advanced manufacturing technology.

Steel Construction

  • 0.8 mm CRCA Steel
  • TATA Steel / JSW Steel
  • IS-513 D Grade Compliance

Frame Structure

  • ERW Steel Tubing
  • Size: 30 × 30 × 1.6 mm
  • High Structural Stability
  • Heavy Load Capacity

Pretreatment Process

All fabricated steel components undergo:

  • Degreasing
  • Derusting
  • Water Rinsing
  • Phosphating
  • Surface Conditioning
  • Passivation
  • Neutralization
  • Final Cleaning

Powder Coating

  • Epoxy Polyester Powder Coating
  • 40–60 Micron Thickness
  • Corrosion Resistant
  • Chemical Resistant
  • Scratch Resistant

Ideal Applications

Suitable for:

  • Pharmaceutical Laboratories
  • Biotechnology Laboratories
  • Chemical Testing Laboratories
  • Academic Laboratories
  • Research Institutions
  • University Science Departments
  • Food Testing Laboratories
  • Healthcare Laboratories
  • Diagnostic Centers
  • Environmental Testing Facilities
  • Quality Control Laboratories
  • Industrial R&D Centers
  • Government Research Facilities
  • Material Testing Laboratories
  • Engineering Laboratories

Advantages of Topnotch Lab Furniture

Superior Material Quality

Manufactured using premium-grade raw materials.

Long Service Life

Designed for continuous laboratory operation.

Better Utility Management

Integrated EMC raceway improves organization.

Improved Laboratory Hygiene

Smooth surfaces allow easy cleaning.

Enhanced Productivity

Optimized workstation design supports efficient workflows.

Excellent Chemical Resistance

Granite worktops and PP sinks withstand laboratory chemicals.

Modular Expandability

Supports future upgrades and laboratory expansion.

Professional Appearance

Modern design enhances laboratory aesthetics.

Easy Maintenance

Minimal maintenance requirements.

Trusted Manufacturing Expertise

Years of laboratory furniture experience.


Why Choose Topnotch Laboratory Furniture?

Topnotch Laboratory Furniture is one of India’s trusted manufacturers of laboratory furniture systems. We combine premium materials, precision engineering, and industry-compliant manufacturing practices to deliver durable and reliable laboratory solutions.

Benefits of Choosing Topnotch

  • Advanced Manufacturing Facility
  • Premium Steel Construction
  • Industry Standard Compliance
  • Custom Design Capability
  • Skilled Engineering Team
  • Reliable Project Execution
  • Competitive Pricing
  • PAN India Supply
  • Installation Support
  • After-Sales Service

Where Choose Topnotch Laboratory Furniture?

Widely installed in:

  • Pharmaceutical Companies
  • Research Institutes
  • Biotechnology Facilities
  • Universities
  • Engineering Colleges
  • Government Laboratories
  • Hospitals
  • Diagnostic Centers
  • Chemical Industries
  • Petrochemical Industries
  • Food Industries
  • Environmental Laboratories
  • Quality Assurance Facilities
  • Manufacturing Industries
  • Scientific Research Centers

Maintenance Guidelines

Daily

  • Clean granite surfaces.
  • Remove chemical spills immediately.
  • Dry sink areas after use.

Weekly

  • Inspect hinges and channels.
  • Check plumbing connections.
  • Clean EMC raceway surfaces.

Monthly

  • Verify structural stability.
  • Inspect powder-coated surfaces.
  • Tighten loose hardware.

Packaging & Delivery

Packaging Includes

  • Bubble Wrap Protection
  • Foam Corner Guards
  • Stretch Film Wrapping
  • Corrugated Sheet Protection
  • Edge Protection System
  • Optional Wooden Crate Packaging

Delivery Support

  • PAN India Delivery
  • Safe Transportation
  • Project Site Coordination
  • Professional Installation Assistance
  • Modular Knock-Down Dispatch

Quality Standards

Manufactured according to recognized laboratory furniture and industrial manufacturing standards.

Standards Followed

  • IS-513 D Grade Steel
  • IS 6005-1995
  • IS 3618-1966

Quality Checks

  • Raw Material Inspection
  • Dimensional Verification
  • Welding Quality Inspection
  • Powder Coating Testing
  • Hardware Testing
  • Structural Inspection
  • Final Product Approval

Do’s & Don’ts

✅ Do’s

  • Clean worktops regularly.
  • Maintain sink hygiene.
  • Inspect hardware periodically.
  • Use recommended cleaning products.
  • Follow laboratory safety procedures.

❌ Don’ts

  • Do not overload storage units.
  • Avoid abrasive cleaning chemicals.
  • Do not stand on worktops.
  • Avoid unauthorized modifications.
  • Do not expose surfaces to prolonged corrosive chemical contact.

Disclaimer

  • Product images are for reference purposes only.
  • Actual dimensions may vary within manufacturing tolerances.
  • Granite patterns and shades vary naturally.
  • EMC raceway is supplied without switches, sockets, and wiring unless specifically mentioned.
  • Plumbing accessories may vary according to project requirements.
  • Specifications may change without prior notice for product improvement.
  • Optional accessories are available on request.
