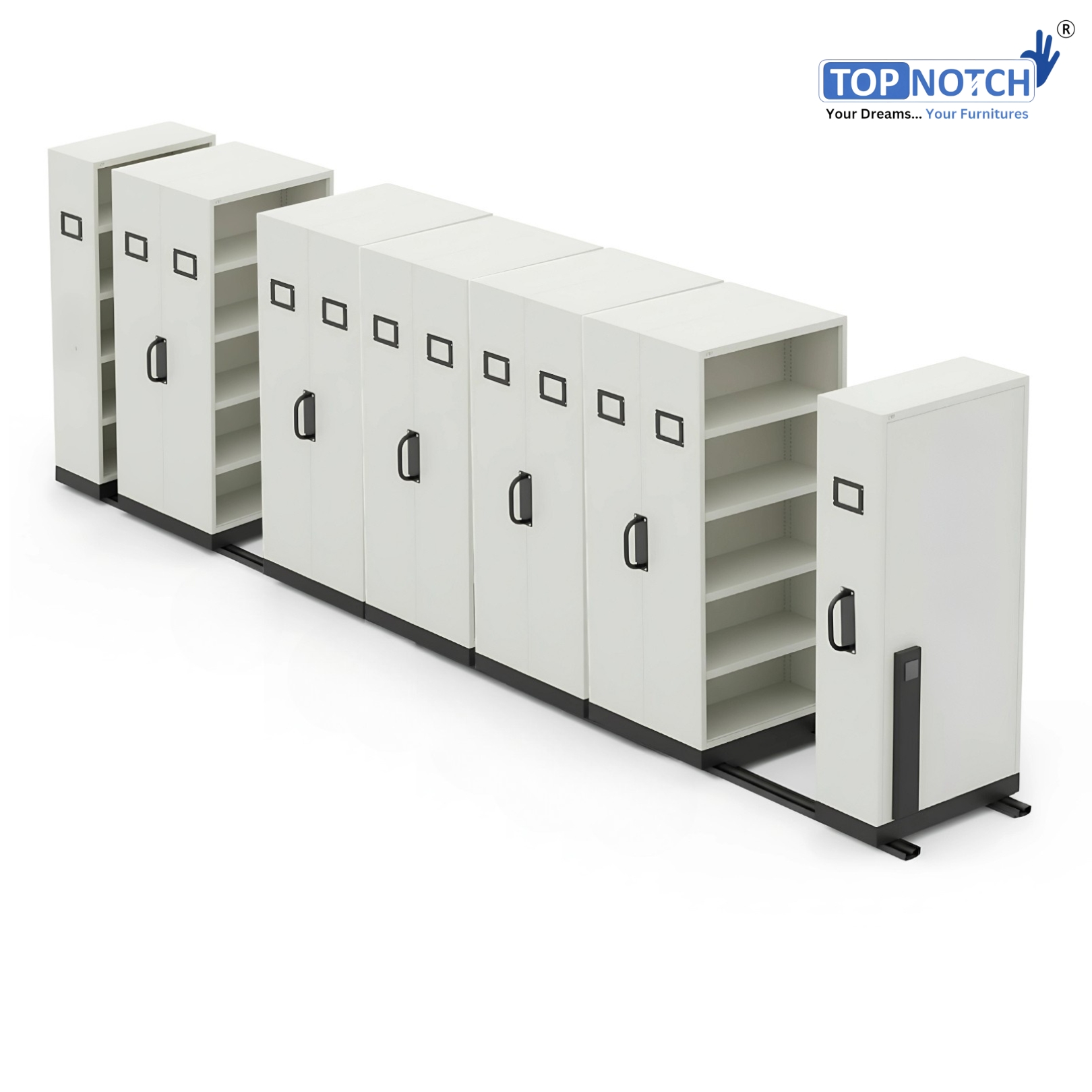

1 Bay – 12 Bodies Mobile Storage Compactor | Hand Push / Push-Pull Type | 4 Adjustable/Removable Shelves | Fixed Black Metal Handles | Powder Coated

₨ 405,864.00

Technical Specifications

Parameter	Specification
Product Type	Mobile Storage Compactor (Hand Push / Push-Pull)
Configuration	1 Bay – 12 Bodies (SFF-1 + DFM-5 + SFM-1)
Per Body Dimensions	2120 (H) × 915 (W) × 450 (D) mm
Total Cabinets	12 Bodies = 60 Compartments
Shelves per Body	4 Adjustable/Removable
Compartments per Body	5
Total Compartments	60
Storage Capacity	~2,160 thin files OR ~720 box files
Shelf Load Capacity	60–70 Kg UDL per shelf
Cabinet Material	0.8 mm CRCA Steel (TATA/JSW)
Base Frame	3.15 mm HR Steel (IS 2062 / IS 1079)
Drive Type	Manual Hand Push / Push-Pull
Handles	Fixed Powder-Coated Black Metal Handles
Indexing Provision	Metal Index Card Holders
Track System	Anti-Skid Floor Mounted Tracks
Wheels	90 × 32 mm Cast Iron (CI)
Locking System	Centralized Lock + Optional Individual Locks
Finish	Epoxy Polyester Powder Coating (40–70 microns)
Surface Treatment	8-Tank Anti-Rust Process
Safety Features	Anti-topple, Anti-skid, Vibration-Free
Installation	Knockdown Modular, On-Site Professional Assembly
Warranty	1 Year (Manufacturing Defects Only)
Certifications	ISO 9001, 14001, 45001, BIFMA, GREENGUARD

Description

The Topnotch 1 Bay – 12 Bodies Mobile Storage Compactor is a high-density file storage system engineered to maximize efficiency in offices, archives, banks, hospitals, and government institutions. Built with heavy-duty CRCA steel and finished with epoxy polyester powder coating, this model delivers durability, organization, and space savings in one compact unit.

This configuration is based on hand push (manual push-pull movement), operated using fixed black powder-coated metal handles. Cabinets glide effortlessly on cast iron wheels mounted on anti-skid tracks, ensuring smooth and stable operation even when fully loaded.

Configuration – SFF-1 + DFM-5 + SFM-1

1 SFF (Single Fixed Frame): Static cabinet, open on one side.
5 DFMs (Double-Faced Movable): Each unit holds 2 bodies = 10 bodies.
1 SFM (Single-Faced Movable): Movable, open on one side.
👉 Total = 12 Bodies (Cabinets) in one bay.

Storage Layout

Each cabinet: 2120 (H) × 915 (W) × 450 (D) mm.
Shelves per body: 4 adjustable/removable shelves → 5 compartments per body.
Total compartments: 12 bodies × 5 compartments = 60 compartments.

Storage Capacity Options:

Thin files (36 per compartment): 36 × 60 = 2,160 thin files.
Box files (11–12 per compartment): ~720 box files in total.

This flexibility makes the unit suitable for organizations managing both standard thin files and larger box files or ledgers.

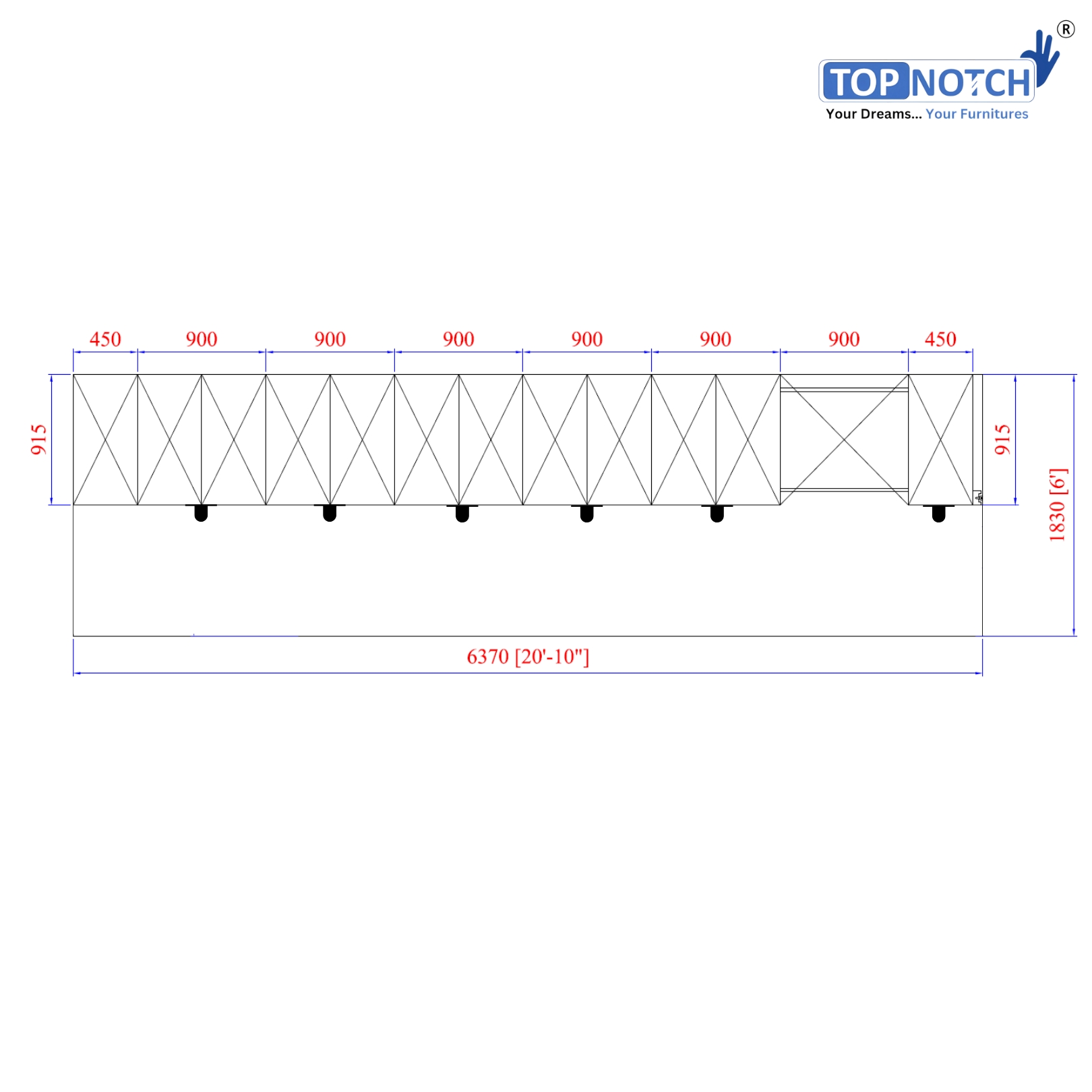

Space Efficiency

Row length (12 bodies): 12 × 900 mm = 5400 mm.
Depth: 915 mm.
Aisle space: 750–900 mm required.
Total covered area: ~5400 mm × (915 + 750–900 mm).

Compared to 12 almirahs, which each require their own aisle, this system saves 50–60% of valuable floor space while centralizing all documents in a single, lockable structure.

✅ The Topnotch 1 Bay – 12 Bodies Hand Push Compactor is a perfect choice for medium-to-large organizations needing long-term, secure, and space-optimized storage.

Comparison

1 Bay – 12 Bodies Mobile Storage Compactor vs. 12 Almirahs

Feature	1 Bay – 12 Bodies Compactor	12 Almirahs
Storage	2,160 thin files OR 720 box files	1,500–1,800 files
Space	5400 mm length + 1 aisle (saves 50–60%)	Requires 12 aisles
Security	Centralized lock + indexing	Individual locks only
Safety	Anti-skid, anti-topple	No safety features
Durability	12–15 years	5–7 years
ROI	High (space + lifespan)	Low (more units, more space)
Expansion	Modular, expandable	Not expandable

Additional information

Storage & Usage Capacity	For Box Files (75–80 mm spine, 915 mm shelf width): Per Shelf: ~11–13 box files Per Body (4 shelves / 5 compartments): ~60–65 box files 12 Bodies (System Total): ~720–780 box files For Thin Office Files (30–40 mm spine): Per Shelf: ~20–25 files Per Body (4 shelves / 5 compartments): ~100–120 files 12 Bodies (System Total): ~1,200–1,440 files
Bay & Row Explanation	SFF (1 body): Fixed/static. DFM (5 units × 2 bodies each = 10 bodies). SFM (1 body): Movable, single-sided. 👉 Total = 12 Bodies. 1 Bay = 1 row of cabinets joined side-by-side. Each cabinet = 900 mm wide × 450 mm deep. 12 cabinets × 900 mm = 5400 mm row length. Total System Area Length = 5400 mm. Depth = 915 mm. Aisle space = 750–900 mm. Total floor area = 5400 mm × (915 + 750–900 mm). ✅ Visualization: Buyers can imagine one long row of 12 cabinets mounted on rails. The DFM units slide apart to create a single working aisle, ensuring compact storage in half the floor space of almirahs.
FAQ	Q1. How many files can this compactor hold? 👉 It can store 2,160 thin files (36 per compartment × 60 compartments) OR ~720 box files (11–12 per compartment × 60 compartments). Q2. How many bodies are included in this 1 Bay system? 👉 It includes 12 bodies: 1 fixed, 10 movable (via 5 DFMs), and 1 single movable. Q3. What are the dimensions of each cabinet? 👉 Each cabinet measures 2120 (H) × 915 (W) × 450 (D) mm. Q4. What is the total area required? 👉 The unit covers 5400 mm length × 915 mm depth + 750–900 mm aisle space. Q5. What material is used in construction? 👉 Heavy-duty 0.8 mm CRCA steel (TATA/JSW, IS 513 D grade). Q6. How much weight can each shelf hold? 👉 Each shelf can carry 60–70 Kg UDL (uniformly distributed load). Q7. Can the shelves be adjusted? 👉 Yes, all shelves are adjustable or removable. Q8. What is the expected lifespan? 👉 With proper care, 12–15 years of reliable service. Q9. Is this rust-proof? 👉 Yes, it undergoes an 8-tank anti-rust treatment and has powder-coated finish (40–70 microns). Q10. Does it come with a warranty? 👉 Yes, 1-year warranty on manufacturing defects. Q11. What locking system is included? 👉 Centralized locking system, with optional individual locks on request. Q12. Is AMC (Annual Maintenance Contract) available? 👉 Yes, Topnotch offers AMC & PAN India after-sales support. Q13. Is this compactor GEM registered? 👉 Yes, Topnotch compactors are GEM portal ready for government & PSU procurement. Q14. Can it be relocated? 👉 Yes, being modular (knockdown design), it can be dismantled and reinstalled. Q15. What type of drive system is used? 👉 Manual hand push / push-pull drive with fixed powder-coated metal handles. Q16. What safety features are included? 👉 Anti-topple system, anti-skid floor rails, vibration-free movement. Q17. Can colors be customized? 👉 Yes, dual-tone and custom finishes available as per requirement. Q18. What certifications does Topnotch have? 👉 ISO 9001, ISO 14001, ISO 45001, BIFMA, GREENGUARD. Q19. Is installation included? 👉 Yes, on-site professional installation is provided. Q20. How does it compare to almirahs? 👉 It saves 50–60% floor space, has centralized security, and lasts twice as long.
Why Mobile Storage Compactor?	Space Savings (50–60%) – Requires only one working aisle. Centralized Storage – All files in one secured unit. Cost Efficiency – Lower real-estate costs & better ROI. Improved Security – Centralized locking + optional individual locks. Durability – Lasts 12–15 years with minimal maintenance. Scalability – Can add bays as storage demand increases. Multi-Industry Use – Offices, banks, hospitals, universities, warehouses.
Why Topnotch?	Premium Materials: CRCA steel from TATA/JSW. Rust-Proof Treatment: 8-tank anti-rust process. Certified Manufacturing: ISO, BIFMA, GREENGUARD certified. Customizable Designs: Dual-tone & client-specific layouts. PAN India Service: Installation + AMC available. Trusted Brand: 20+ years experience, chosen by corporates, PSUs, and govt. bodies. GEM Registered: Seamless procurement for government organizations.
Warranty & Disclaimer	Warranty Coverage: 1 Year warranty against manufacturing defects. Includes defects in material (steel, shelves, locks). Exclusions: Misuse, overloading, fire, water damage. Damage due to poor handling after delivery. Disclaimer: Product colors may vary slightly due to screen settings or material availability. Indoor use recommended. Knockdown modular design; assembly included but civil work not covered. ✅ Buyers are advised to consult Topnotch representatives before ordering for best layout planning.
Do’s & Don’ts	✅ Do’s Store files evenly (max. 60–70 Kg per shelf). Use the indexing system for quick retrieval. Lock the unit after every use. Keep rails clean and free of dust. Plan annual AMC for long-term performance. ❌ Don’ts Don’t overload compartments. Don’t expose to water/fire. Don’t drag cabinets outside rails. Don’t allow unauthorized handling. Don’t use sharp/abrasive cleaning tools.
