Description

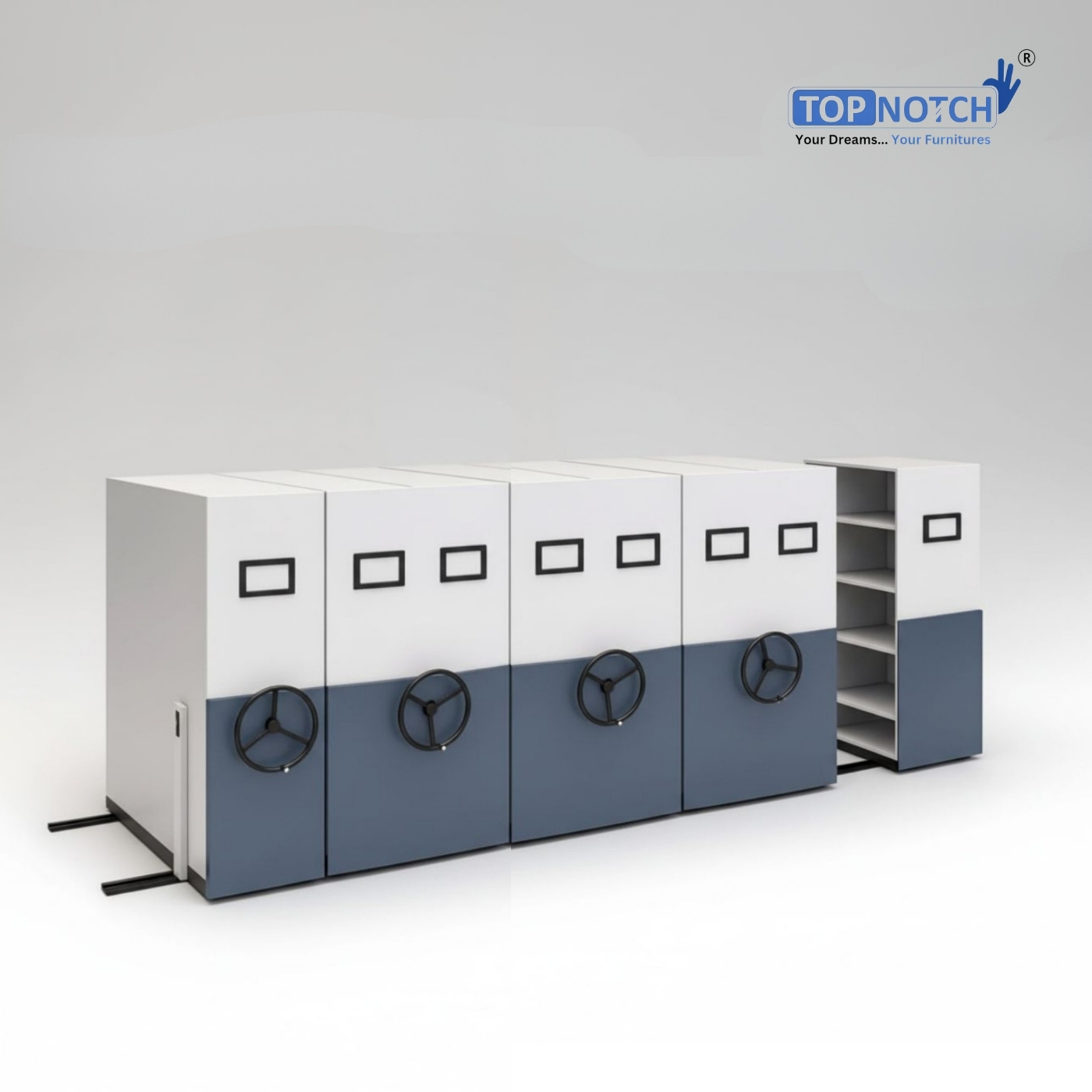

The Mobile Storage Compactor – 1 Bay, 8 Bodies is a compact, space-optimizing storage solution crafted for organizations that require secure, efficient, and professional record storage. Manufactured using CRCA steel (0.8 mm, IS 513 D-Grade, TATA/JSW) with a powder-coated finish, this system combines durability, safety, and ease of use in one modular design.

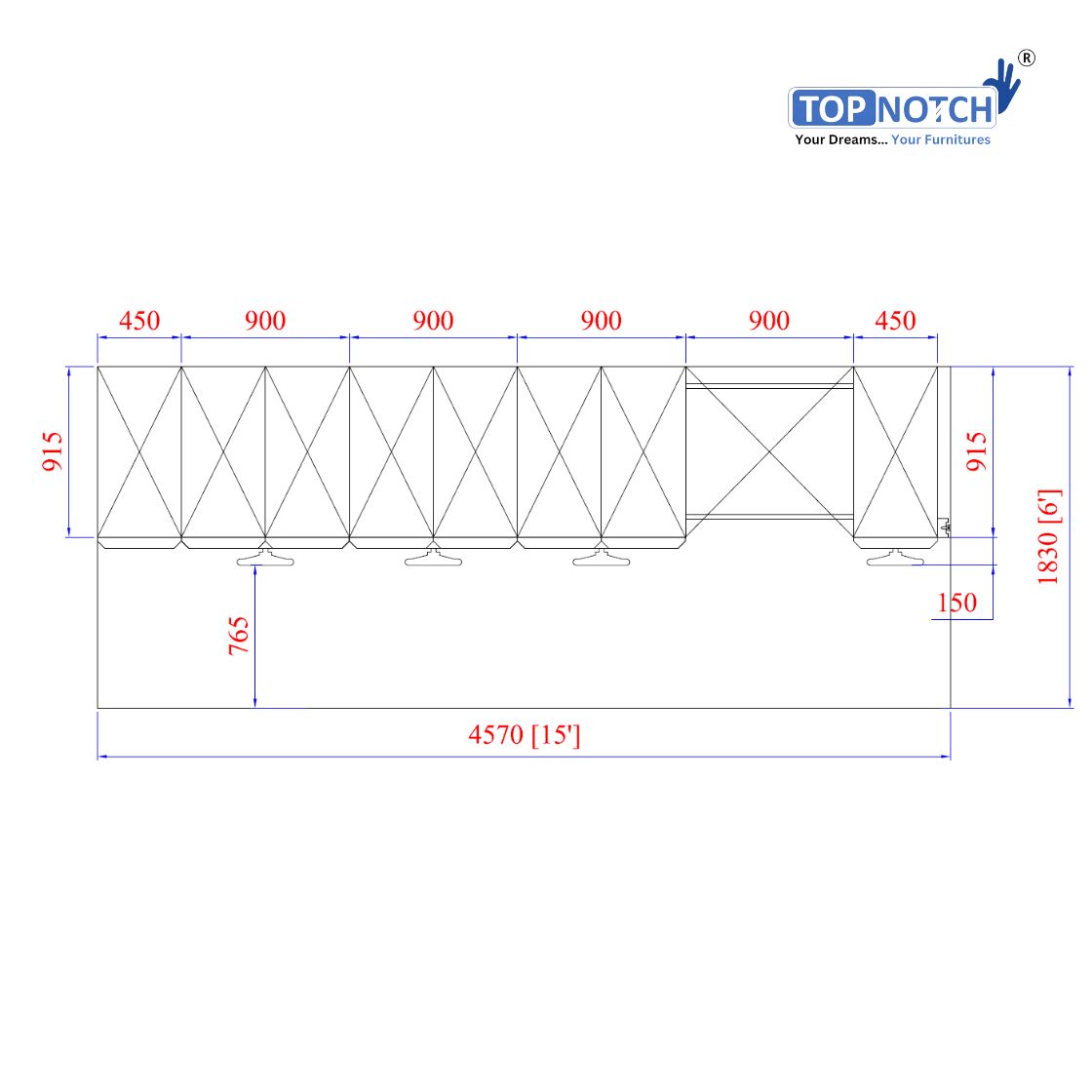

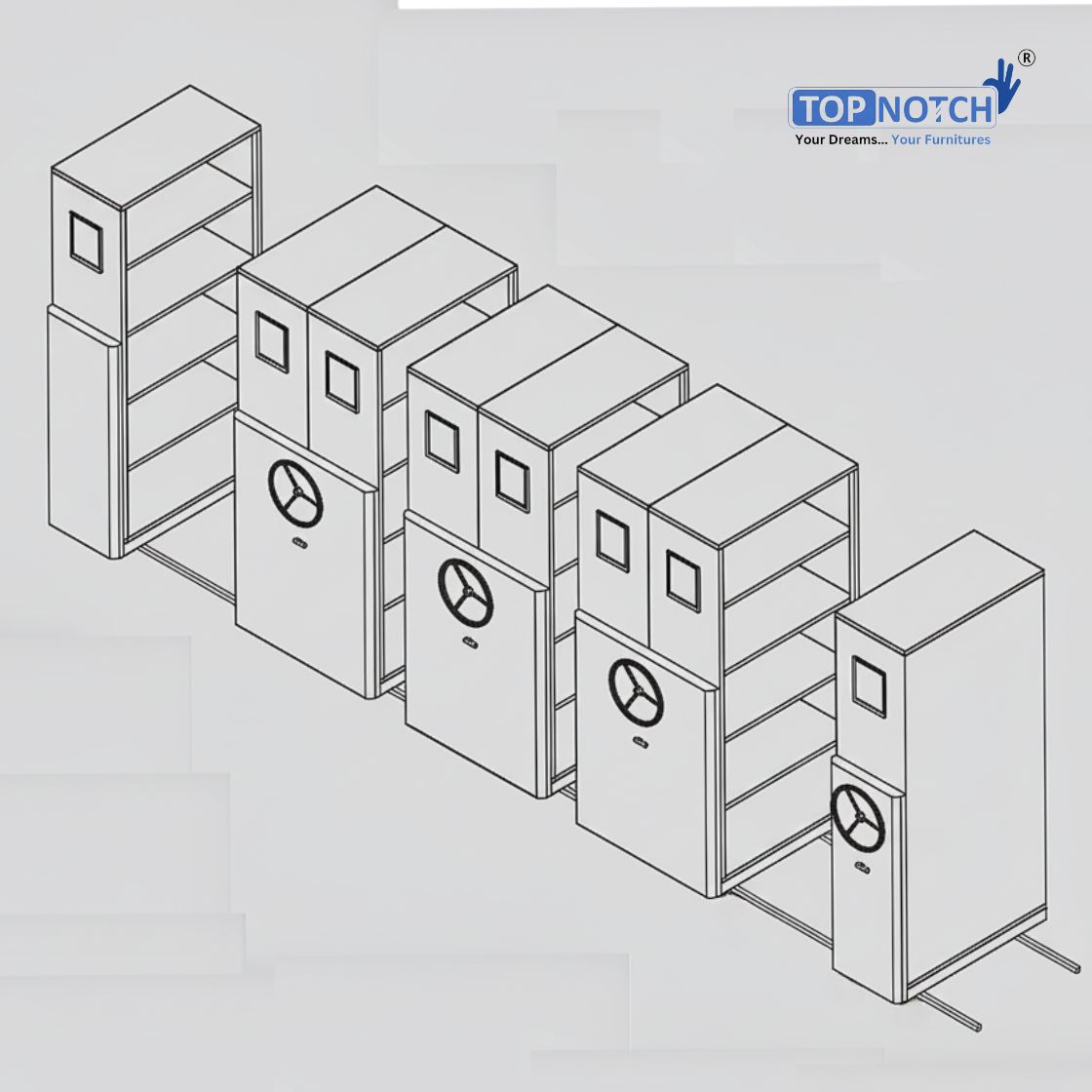

This configuration is built as:

• 1 Single Faced Fixed Frame (SFF) – static, mounted at one end of the rail system

• 3 Double Faced Movable Units (DFM) – movable, open both sides

• 1 Single Faced Movable (SFM) – movable, open one side

👉 Total: 8 Bodies (cabinets) in 1 Bay.

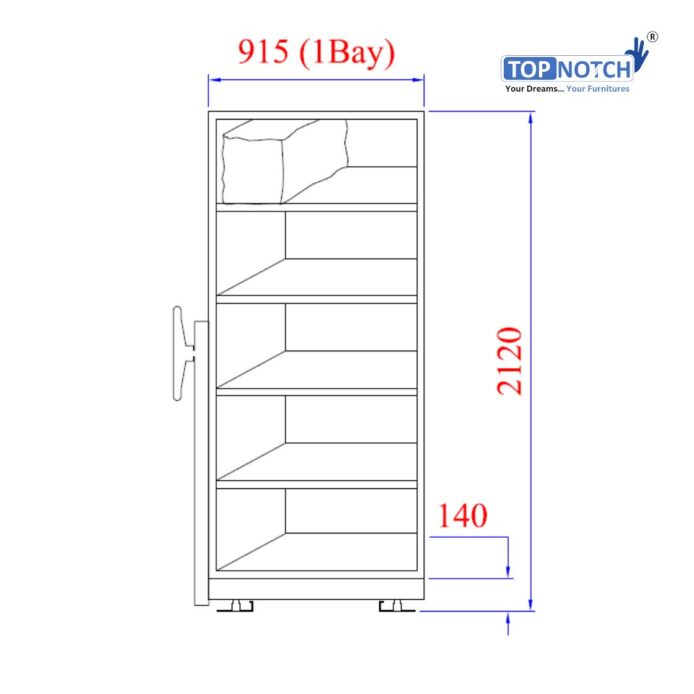

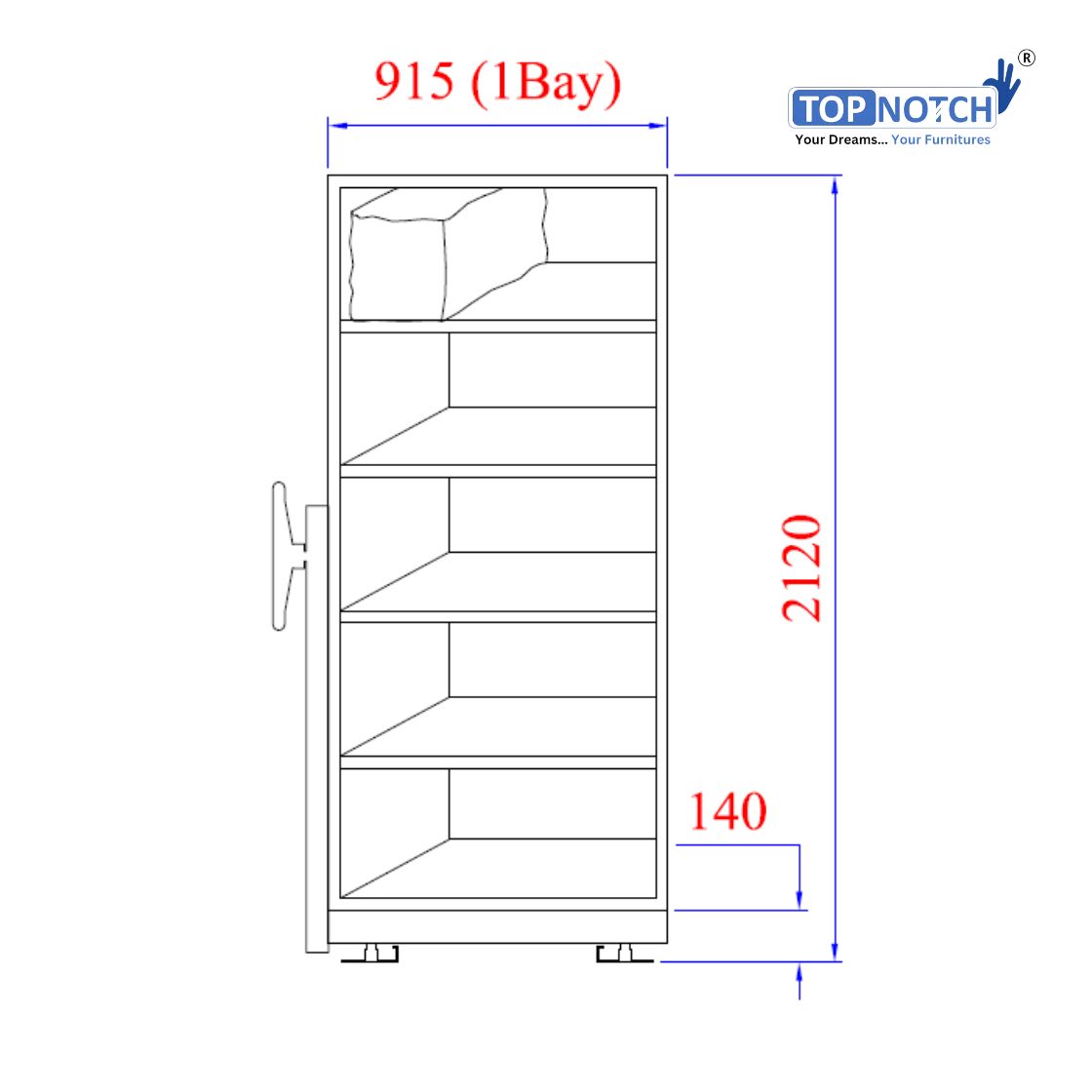

Each body measures 2120 mm (H) × 915 mm (W) × 450 mm (D) and comes with 4 adjustable/removable shelves, creating 5 compartments per body. Together, the system offers 40 compartments, each shelf designed to carry 60–70 Kg UDL (Uniformly Distributed Load).

Unlike traditional almirahs, which consume more aisle space, this mobile compactor requires only one aisle (750–900 mm) for operation, thereby saving 50–60% floor space. The mechanical chain & sprocket drive system with anti-friction bearings allows smooth, vibration-free movement even when fully loaded.

Safety features include an anti-skid rail system, anti-topple mechanism, and a centralized locking system with optional individual locks for added security. The indexing provision (black metal indexing plates) helps users label and organize files systematically, ensuring fast retrieval.

Finished with 40–60 micron epoxy polyester powder coating after an 8-tank anti-rust treatment, the unit is built for long-lasting resistance to corrosion, scratches, and wear. Delivered in knock-down modular packing (gatta box + plastic wrap + itemized packing list) and backed by a 1-year manufacturing defect warranty, this product is ideal for modern offices, banks, hospitals, libraries, industries, and government archives.

Bay & Row Explanation (Buyer Understanding)

• 1 Bay = One row of storage units

• Rows in this system:

  • SFF (Single Faced Fixed): 1 unit (static, one side open)

  • DFM (Double Faced Movable): 3 units × 2 sides = 6 units

  • SFM (Single Faced Movable): 1 unit (movable, one side open)

👉 Formula: Bodies = A × (B + C + 2D)
= 1 × (1 + 1 + 2×3) = 8 Bodies Total

Key Features & Benefits

• ✅ Optimized Storage – 8 bodies = 40 compartments

• ✅ Space-Saving – 50–60% less floor space vs. 8 almirahs

• ✅ Durable Construction – CRCA steel + anti-rust treatment

• ✅ Heavy Load Capacity – 60–70 Kg UDL per shelf

• ✅ Smooth Mechanical Drive – Chain & sprocket with antifriction bearings

• ✅ Dual Security – Centralized lock + individual lock provision

• ✅ Safety Assured – Anti-skid rails, anti-topple design

• ✅ Easy Identification – Black metal indexing plates

• ✅ Professional Finish – Epoxy polyester coating, scratch-resistant

• ✅ Warranty & Support – 1-year defect warranty + AMC available

Applications

• 📂 Corporate Offices – HR, finance, project files

• 🏦 Banks & Insurance Offices – KYC records, ledgers, loan files

• 🏥 Clinics & Small Hospitals – Patient records, prescriptions

• 📚 Colleges & Schools – Student files, exam papers, journals

• 🏛️ Government Sub-Offices – Tender files, land records

• ⚖️ Law Firms – Case briefs, judgments, client documents

• 🏭 Industries & Workshops – Manuals, spare parts, stock logs

Comparison: Mobile Compactor (1 Bay – 8 Bodies) vs. 8 Almirahs
