Research & Development Laboratory Fume Hood | Chemical Resistant Laboratory Exhaust Hood | Modular CRCA Steel Fume Cupboard for R&D, Pharmaceutical & Industrial Laboratories

 16,500.00

COMPLETE TECHNICAL SPECIFICATION TABLE

Sr. No. Parameter Technical Specification
1 Product Category Research & Development (R&D) Laboratory Furniture
2 Furniture Type Modular Laboratory Furniture System
3 Application Research Labs, Pharma Labs, Industrial Labs, QC Labs, Educational Labs
4 Design Type Modular / Ergonomic / Utility Integrated
5 Construction Type Knock Down / Modular Construction
6 Body Material Premium Quality CRCA Steel Sheet
7 Steel Thickness 0.8 mm Thick
8 Steel Make TATA / JSW
9 Steel Grade IS: 513 “D” Grade Material
10 Frame Material ERW Steel Tube
11 Frame Size 30 × 30 mm
12 Frame Thickness 1.6 mm Thick
13 Structure Type Heavy Duty Reinforced Structure
14 Surface Treatment 8-Tank Anti-Rust Treatment Process
15 Standard Compliance IS: 6005-1995 (1st Revision)
16 Furniture Standard IS: 3618-1966
17 Powder Coating Type Epoxy Polyester Powder Coating
18 Coating Thickness 40–60 Microns
19 Finish Type Smooth Matt Finish
20 Corrosion Resistance High Corrosion Resistant Finish
21 Chemical Resistance Chemical Resistant Surface
22 Scratch Resistance Scratch Resistant Coating
23 Worktop Options Granite / Epoxy Resin / Phenolic Resin / Ceramic / PP
24 Granite Thickness 16–20 mm Thick Black Granite
25 Worktop Finish Fully Polished Edges
26 Island Table Height 900 mm
27 Island Table Width 1500 mm to 4500 mm
28 Island Table Depth 1500 mm
29 Wall Side Table Height 900 mm
30 Wall Side Table Width 750 mm to 6800 mm
31 Wall Side Table Depth 750 mm
32 Reagent Rack Width Options 600 mm / 750 mm / 1200 mm / 1500 mm
33 Reagent Rack Height Options 750 mm / 900 mm / 1200 mm
34 Reagent Rack Shelf Depth 150 mm / 280 mm / 300 mm / 560 mm
35 Sink Type Laboratory Grade PP Sink
36 Faucet Type Gooseneck Faucet
37 Utility Integration Electrical / Gas / Water / Data / Drainage
38 Electrical Provision Available
39 Gas Pipeline Provision Available
40 Water Supply Provision Available
41 Drainage Provision Available
42 Vacuum Line Provision Optional
43 Storage Type Drawer & Shutter Combination
44 Storage Cabinet Type Wall Mounted / Overhead / Floor Mounted
45 Shelf Load Capacity 60–70 Kg UDL
46 Locking System 3-Way Locking System
47 Shelf Type Adjustable Shelves
48 Adjustable Levellers Provided
49 C Frame System Flexible Adaptable System
50 D Frame System High Stability System
51 Plinth Casework System Closed Base Heavy Duty System
52 Pedestal System Floor Standing Modular System
53 Standard Color Options Off White / Grey / Ivory / White / Black
54 Custom Color Options Blue / Red / Green / Yellow / Orange
55 Manufacturing Standard Indian Standards & WHO Guidelines
56 Installation Type Floor Mounted / Wall Mounted / Island Configuration
57 Utility Planning Electrical, Plumbing, Gas & Data Integration
58 Laboratory Design Support AutoCAD 2D & 3D Layout Planning
59 Maintenance Low Maintenance
60 Service Life Long Lasting Industrial Performance
61 Ideal Applications R&D Labs, Pharma Labs, Chemical Labs, Educational Labs, QC Labs
62 Safety Features Ergonomic Design, Chemical Resistant Surface, Utility Safety
63 Key Advantages Durable, Modular, Safe, Future-Ready Laboratory System
64 Customization Available As Per Project Requirement
65 Installation Support PAN India Installation Support
66 After Sales Support Technical & Service Support Available
Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Description

Research & Development (R&D) Laboratory

Advanced Scientific Workspace Solutions for Innovation, Testing & Product Development

Modern Research & Development (R&D) laboratories are designed to support innovation, scientific research, analytical testing, product development, quality validation, and advanced experimentation across multiple industries. A well-planned R&D laboratory combines functionality, safety, ergonomics, durability, and intelligent workflow management to create a productive and future-ready scientific environment.

TOPNOTCH Laboratory Furniture specializes in complete R&D laboratory infrastructure solutions including laboratory planning, modular laboratory furniture, utility integration, storage systems, laboratory workstations, and customized scientific workspace solutions. Designed for modern laboratories, our systems focus on safety, efficiency, flexibility, and long-term operational performance.

Research & Development laboratories are specialised facilities used for:

  • Scientific research
  • Product innovation
  • Material analysis
  • Prototype development
  • Chemical testing
  • Biotechnology applications
  • Pharmaceutical research
  • Industrial testing
  • Quality assurance
  • Process improvement
  • Engineering development
  • Analytical studies

These laboratories are essential for organizations focused on innovation, technical advancement, and scientific excellence.

Importance of Modern R&D Laboratory Infrastructure

A professionally designed laboratory environment helps organizations achieve:

Improved Productivity

Optimized workflow planning improves operational efficiency and reduces unnecessary movement.

Better Safety

Integrated safety systems and utility management create safer working conditions.

Organized Workflow

Modular furniture and storage systems improve workspace organization.

Future Expansion Capability

Flexible laboratory systems support future upgrades and expansion requirements.

Better Collaboration

Island workstations encourage teamwork and collaborative research activities.

Enhanced Equipment Integration

Utility-ready systems support modern analytical instruments and scientific equipment.

TOPNOTCH provides intelligent laboratory space planning and modular laboratory solutions tailored to operational requirements.

Essential Requirements of an R&D Laboratory

Laboratory Space Planning

Efficient laboratory planning is critical for smooth operations and safety compliance.

Key Planning Considerations:

  • Workflow optimization
  • Instrument placement
  • Safety clearances
  • Utility accessibility
  • Ventilation planning
  • Future scalability
  • Storage management
  • User movement flow

TOPNOTCH provides:

  • AutoCAD laboratory layouts
  • 2D & 3D laboratory planning
  • Utility coordination
  • Furniture integration support



Modular Laboratory Furniture Solutions

Modern R&D laboratories require durable and modular laboratory furniture systems designed for long-term performance and flexibility.

Laboratory Furniture Includes:

Laboratory Island Tables

Centralized workstations for collaborative scientific operations.

Laboratory Wall Side Tables

Efficient wall-facing workstations for optimized space utilization.

Instrument Tables

Stable platforms for analytical and testing equipment.

Reagent Racks

Organized storage systems for chemicals and laboratory accessories.

Storage Cabinets

Secure storage solutions for instruments, files, and laboratory materials.

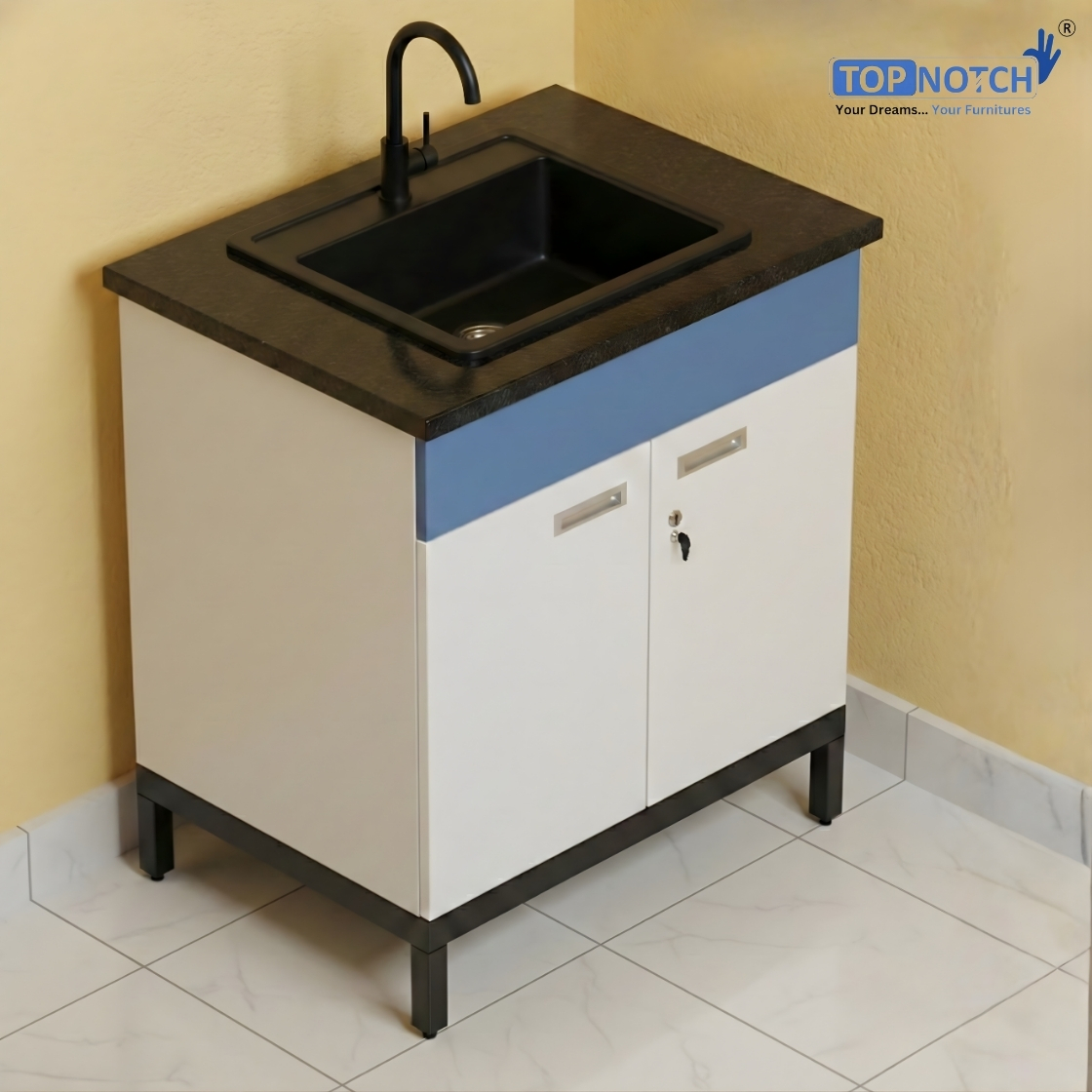

Sink Units

Integrated wet laboratory utility systems.

Overhead Storage Cabinets

Additional vertical storage systems for efficient organization.

Anti-Vibration Tables

Designed for precision instruments and sensitive analytical equipment.

TOPNOTCH offers a complete range of modular laboratory furniture systems for research laboratories, industrial labs, healthcare facilities, educational institutions, and testing laboratories.

TOPNOTCH R&D Laboratory Product Range

Laboratory Island Tables

Heavy-duty modular island benches designed for collaborative laboratory operations.

Features:

  • Spacious work surface
  • Sink integration
  • Reagent rack provision
  • Storage cabinets
  • Utility access systems
  • Chemical-resistant worktops
  • Powder-coated CRCA steel construction

Applications:

  • Research laboratories
  • Pharmaceutical labs
  • Biotechnology facilities
  • Industrial testing labs
  • Educational institutions

Laboratory Wall Side Tables

Wall-facing laboratory furniture systems designed for organized and efficient scientific operations.

Features:

  • Modular ergonomic design
  • Integrated storage
  • Utility raceways
  • Sink and faucet integration
  • Electrical and data points
  • Chemical-resistant surfaces

Ideal For:

  • Wet laboratories
  • Dry laboratories
  • Quality control labs
  • Chemical testing labs
  • Research centers



Why Choose TOPNOTCH Laboratory Furniture?

Complete End-to-End Laboratory Solutions

From concept planning to final installation.

Customized Laboratory Designs

Every laboratory is designed according to workflow and operational requirements.

Premium Manufacturing Quality

Manufactured using high-quality CRCA steel and precision fabrication.

Smart Laboratory Planning

Optimized layouts for safety, efficiency, and productivity.

Utility Integration Expertise

Professional coordination of electrical, plumbing, gas, and data systems.

Future-Ready Laboratory Infrastructure

Flexible modular systems designed for expansion and upgrades.

Professional Installation Support

Experienced technical execution and after-sales support.

TOPNOTCH delivers complete laboratory infrastructure solutions designed for modern scientific environments.

Applications of R&D Laboratories

Pharmaceutical Research

Drug development and analytical testing.

Biotechnology Research

Biological and genetic analysis.

Chemical Analysis

Testing and formulation applications.

Product Development

Prototype and material innovation.

Educational Research

Scientific training and academic research.

Quality Assurance

Industrial and manufacturing quality validation.

A modern Research & Development laboratory requires intelligent planning, durable modular furniture, integrated utilities, organized storage systems, safety-focused infrastructure, and future-ready flexibility.

TOPNOTCH Laboratory Furniture delivers complete laboratory solutions that combine:

  • Innovation
  • Safety
  • Productivity
  • Durability
  • Ergonomic design
  • Efficient workflow management

From laboratory planning to execution, TOPNOTCH transforms scientific ideas into fully functional and high-performance research environments.

Additional information

Price for Unit

Price are per Squre feet or May Vary Upon requirement/Design/location
