Topnotch 2 Bay – 28 Bodies Mechanical Mobile Storage Compactor | 140 Compartments | High-Density File Storage System | Space Saving Record Optimizer

 998,450.00

Technical Specifications

Parameter Specification
Product Name Mechanical Mobile Storage Compactor
Configuration 2 Bay – 28 Bodies
Arrangement SFF-1 + DFM-6 + SFM-1
Body Height 2120 mm
Body Width 915 mm
Body Depth 450 mm
Total Bodies 28
Total Compartments 140
Shelves per Body 4 Adjustable Shelves
Compartments per Body 5
Shelf Capacity 60–70 Kg UDL
Cabinet Material 0.8 mm CRCA Steel
Steel Grade IS 513 D Grade
Base Frame Material 3.15 mm HR Steel
Drive System Mechanical Chain & Sprocket
Wheel Size 90 × 32 mm Cast Iron Wheels
Shaft Diameter 20 mm Steel Shaft
Bearings Pedestal Bearings
Rail Type 25 × 25 mm J-Type Bright Bar
Rail Thickness 1.6 mm
Locking System Centralized
Individual Locks Available
Handle Type Heavyu Duty Handle with Safety Lock
Finish Epoxy Polyester Powder Coating
Coating Thickness 40–70 Microns
Surface Treatment 8 Tank Anti-Rust Process
Safety Features Anti-Topple, Anti-Skid
Aisle Requirement 750–900 mm
Installation Type Knock-Down Modular
Certifications ISO 9001, ISO 14001, ISO 45001,
Delivery PAN India
Procurement GEM Portal Available
Category:

Description

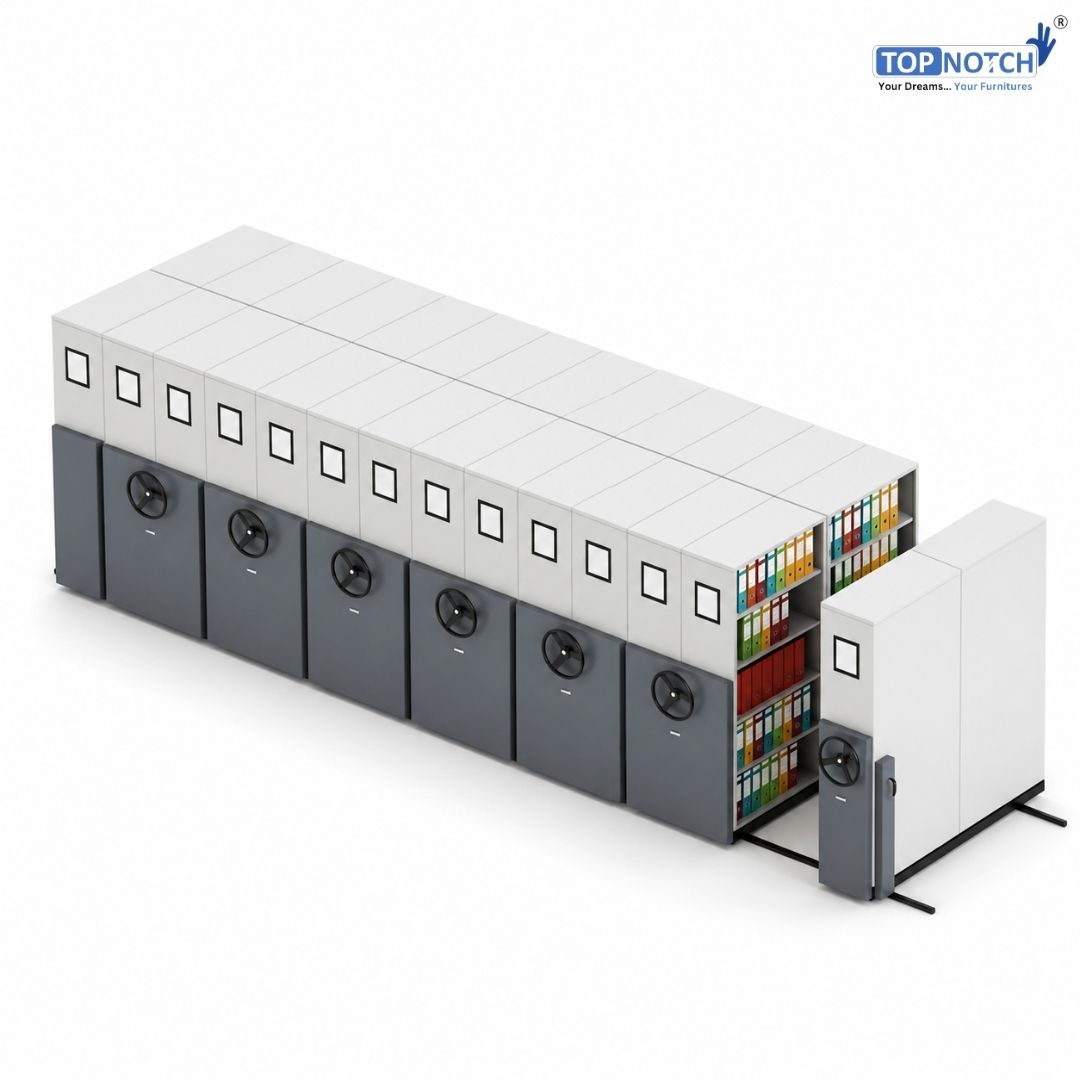

The Topnotch Mechanical Mobile Storage Compactor is a high-performance archival and document storage solution designed to provide maximum storage capacity within limited floor space. The system utilizes a precision-engineered chain-and-sprocket mechanical drive mechanism mounted on heavy-duty rails and cast-iron wheels for effortless movement of storage units.

Each storage body incorporates adjustable shelving, centralized locking, anti-topple safety mechanisms, indexing provisions, and anti-skid protection, ensuring both user safety and operational convenience.

The compact footprint and modular design make it suitable for installations in existing record rooms as well as new facilities. The knock-down construction enables easy transportation, installation, future expansion, and relocation.

Whether used for document management, medical record storage, legal archives, library collections, or industrial inventory storage, the Topnotch Mobile Storage Compactor delivers exceptional performance, durability, and space utilization.


Key Features

✅ Space saving design with up to 60% floor space optimization

✅ 28 storage bodies with 140 compartments

✅ 4 adjustable/removable shelves per body

✅ Mechanical chain & sprocket drive system

✅ Smooth movement with anti-friction bearing arrangement

✅ Heavy-duty cast iron wheel system

✅ Centralized

✅ Individual locking option available

✅ Optional hinged shutter doors available

✅ Indexing provision for quick document retrieval

✅ Anti-topple safety mechanism

✅ Anti-skid floor strips

✅ Vibration-free operation

✅ Modular knock-down construction

✅ Corrosion-resistant steel construction

✅ Epoxy polyester powder-coated finish

✅ Easy maintenance and long operational life

✅ Suitable for archival and high-density storage applications

✅ Available for PAN India supply and installation

✅ GEM Portal procurement support


Body Construction

Cabinet Construction

The storage cabinets are fabricated from premium-quality CRCA steel sheets conforming to IS 513 D Grade standards sourced from reputed manufacturers such as TATA Steel and JSW Steel.

Structural Components

  • Side Panels: 0.8 mm CRCA Steel
  • Back Panels: 0.8 mm CRCA Steel
  • Shelf Supports: Reinforced Steel Construction
  • Front Panels: Heavy-duty formed steel
  • Top Cover Panels: Precision fabricated steel
  • Stiffeners: Structural reinforcement members

The cabinet structure is designed to provide superior rigidity, load-bearing capability, and dimensional stability even under continuous usage conditions.


Base Frame Construction

The base trolley assembly is manufactured from heavy-duty 3.15 mm HR steel sheets conforming to IS 2062 / IS 1079 standards.

Features include:

  • Welded structural frame
  • Reinforced wheel mounting arrangement
  • Heavy-duty rail engagement
  • Balanced load distribution
  • Anti-deformation design
  • Long operational life

Shelving System

Each storage body includes:

  • 4 Adjustable Shelves
  • 5 Storage Compartments
  • Height-adjustable shelf positions
  • Removable shelf design
  • Reinforced shelf construction

Shelf Load Capacity

Each shelf supports:

60–70 Kg UDL (Uniformly Distributed Load)

This makes the system ideal for storing:

  • Files
  • Ledgers
  • Documents
  • Books
  • Archival Records
  • Cartons
  • Storage Boxes

Drive Mechanism

The mobile compactor operates using a precision-engineered:

Mechanical Chain & Sprocket Drive System

Features:

  • Smooth movement
  • Low operating force
  • Anti-slip transmission
  • Long service life
  • Minimal maintenance
  • Reliable operation

The drive mechanism incorporates:

  • Heavy-duty chain assembly
  • Steel sprockets
  • Anti-friction bearings
  • Precision shafts
  • Robust wheel assemblies

Safety Features

Topnotch Mobile Compactors are designed with multiple safety provisions.

Anti-Topple Mechanism

Prevents accidental tilting or imbalance of storage units during movement.

Anti-Skid Strips

Enhances operator safety while accessing storage aisles.

Centralized Locking System

Provides secure storage and controlled access.

Spring Loaded Safety Handle

Prevents unintended movement of units.

Vibration-Free Movement

Ensures smooth and stable operation.

Track Guidance System

Maintains proper alignment during movement.

Emergency Accessibility

Single aisle opening system allows easy retrieval of records.


Storage Capacity

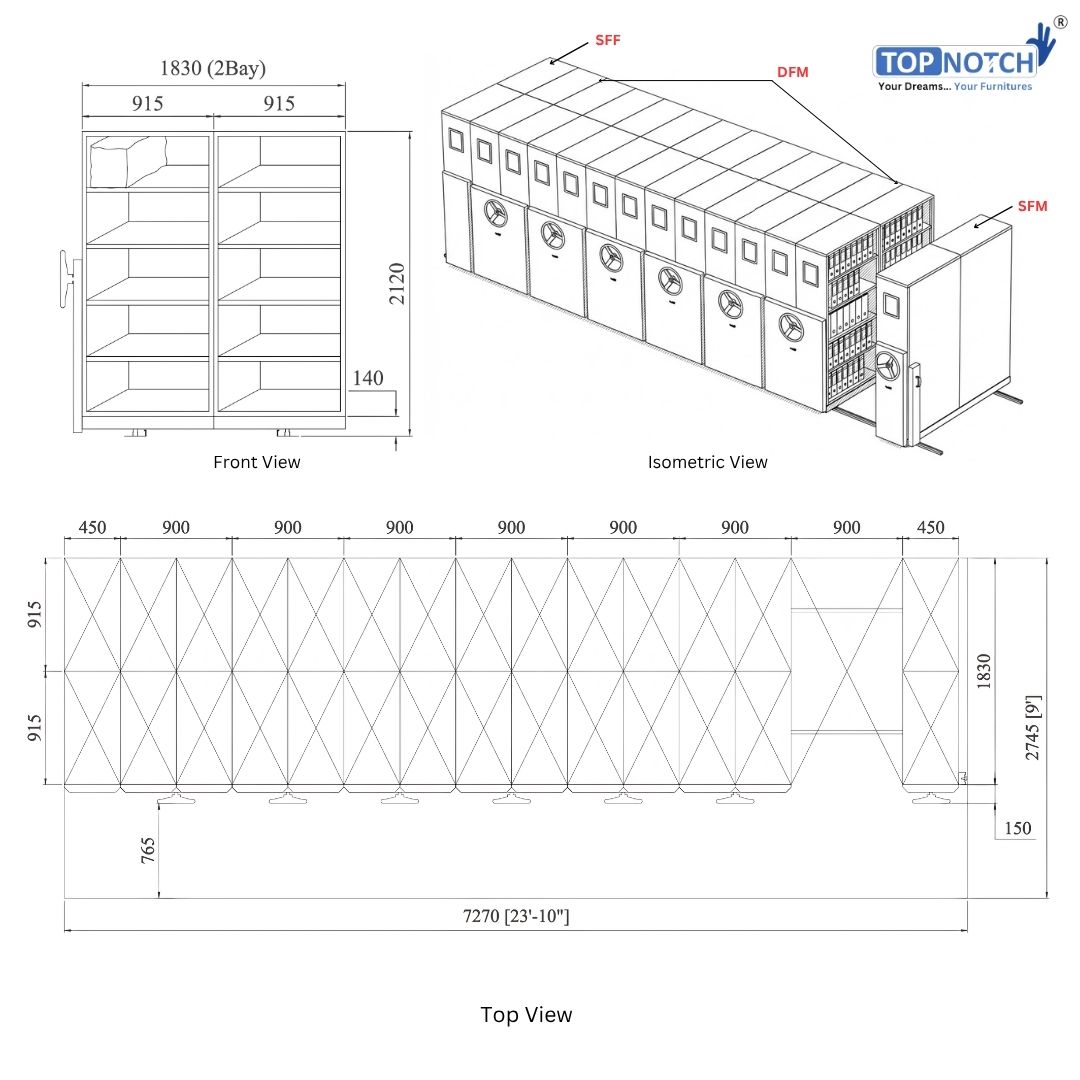

Configuration

1 Single Fixed Frame (SFF)

6 Double Faced Movable Frames (DFM)

1 Single Faced Movable Frame (SFM)

=

28 Storage Bodies

Each Body:

  • 5 Compartments

Total Storage Capacity:

140 Compartments

Approximate File Storage:

1,620+ Box Files

or

3,800+ Thin Office Files

(Capacity varies based on file dimensions and storage arrangement.)


Ideal Applications

Government Offices

  • Revenue Records
  • Land Records
  • Administrative Files
  • Legal Documents

Corporate Offices

  • HR Records
  • Finance Files
  • Audit Documents
  • Project Documentation

Banks & Financial Institutions

  • Loan Files
  • Customer Records
  • Compliance Documents

Educational Institutions

  • Student Records
  • Examination Documents
  • Administrative Files

Libraries

  • Books
  • Journals
  • Publications
  • Reference Materials

Hospitals & Healthcare Facilities

  • Patient Records
  • Medical Documentation
  • Diagnostic Reports

Legal Firms

  • Case Files
  • Litigation Records
  • Client Documentation

Industrial Organizations

  • Quality Records
  • Production Documents
  • Technical Drawings
  • Compliance Records

Advantages of Topnotch Mobile Compactor

Maximum Space Utilization

Reduces aisle requirements and increases storage density significantly.

Improved Organization

Dedicated compartments improve categorization and retrieval.

Better Security

Centralized and individual locking systems safeguard sensitive records.

Cost Savings

Reduces requirement for additional storage rooms and office expansion.

Scalability

Modular design enables future expansion.

Long Service Life

Premium steel construction ensures durability for years of operation.

Professional Appearance

Modern powder-coated finish enhances workplace aesthetics.

Quick Record Retrieval

Indexing provision simplifies file location and retrieval.

Enhanced Workplace Efficiency

Reduces time spent searching and managing documents.

Maintenance Guidelines

Do’s

✔ Keep tracks clean and free from dust

✔ Operate handles smoothly

✔ Conduct periodic inspection of wheels and bearings

✔ Maintain balanced load distribution

✔ Lubricate drive mechanism periodically

✔ Ensure locking systems function properly

✔ Train operators before usage

✔ Conduct annual preventive maintenance


Don’ts

✘ Do not overload shelves beyond specified capacity

✘ Do not force movement when locked

✘ Do not store corrosive chemicals inside standard units

✘ Do not obstruct rail tracks

✘ Do not climb on units

✘ Do not use damaged handles or locking systems

✘ Do not modify structural components without authorization


Packaging & Delivery

Packaging

  • Protective Bubble Wrapping
  • Foam Edge Protection
  • Stretch Film Wrapping
  • Corrugated Protection Sheets
  • Hardware Kit Packaging
  • Component Identification Labels

Delivery Scope

  • PAN India Delivery
  • Professional Installation
  • Site Supervision
  • CAD Layout Support
  • User Training
  • Commissioning Assistance

Bulk Order Support

  • Government Tenders
  • Corporate Projects
  • Educational Institutions
  • Healthcare Infrastructure Projects
  • Warehouse Documentation Centers

AMC and Annual Service Contracts are available upon request.


Why Choose Topnotch Mobile Storage Compactor?

Topnotch combines engineering excellence, premium materials, modern manufacturing technology, and customer-focused service to deliver storage solutions that exceed industry expectations. Our mobile compactors are trusted by government organizations, multinational corporations, educational institutions, healthcare facilities, and industrial enterprises across India.

With superior steel construction, precision movement systems, advanced safety features, certified manufacturing processes, and nationwide installation support, Topnotch provides a long-lasting investment that maximizes storage efficiency and operational productivity.


Why Choose Topnotch Storage Solutions?

  • Made in India Manufacturing
  • Premium TATA/JSW Steel
  • Customized Layout Solutions
  • CAD-Based Planning
  • ISO Certified Production Facility
  • Experienced Installation Team
  • PAN India Service Network
  • GEM Portal Procurement Support
  • Bulk Project Execution Capability
  • Competitive Pricing
  • Long-Term AMC Support
  • Trusted by Government & Corporate Clients

Disclaimer

Actual storage capacity may vary depending upon file dimensions, binder thickness, storage methodology, and user requirements. Product dimensions, specifications, finishes, colors, accessories, and configurations are subject to continuous product improvement and may change without prior notice. Optional accessories including individual locks, hinged doors, indexing systems, special coatings, and customized layouts are available at additional cost. Images are for illustrative purposes only and may include optional features not included in the standard supply.
