Sale!

Topnotch Wall Side Laboratory Table with EMC Raceway, Reagent Rack & Sink Unit | 6750W × 750D × 1600H mm

 346,018.00

Technical Specifications

Specification Details
Product Name Wall Side Laboratory Table with EMC Raceway & Reagent Rack
Brand Topnotch Laboratory Furniture
Product Type Modular Laboratory Standards Storage Pedestal
Design Add-On Unit

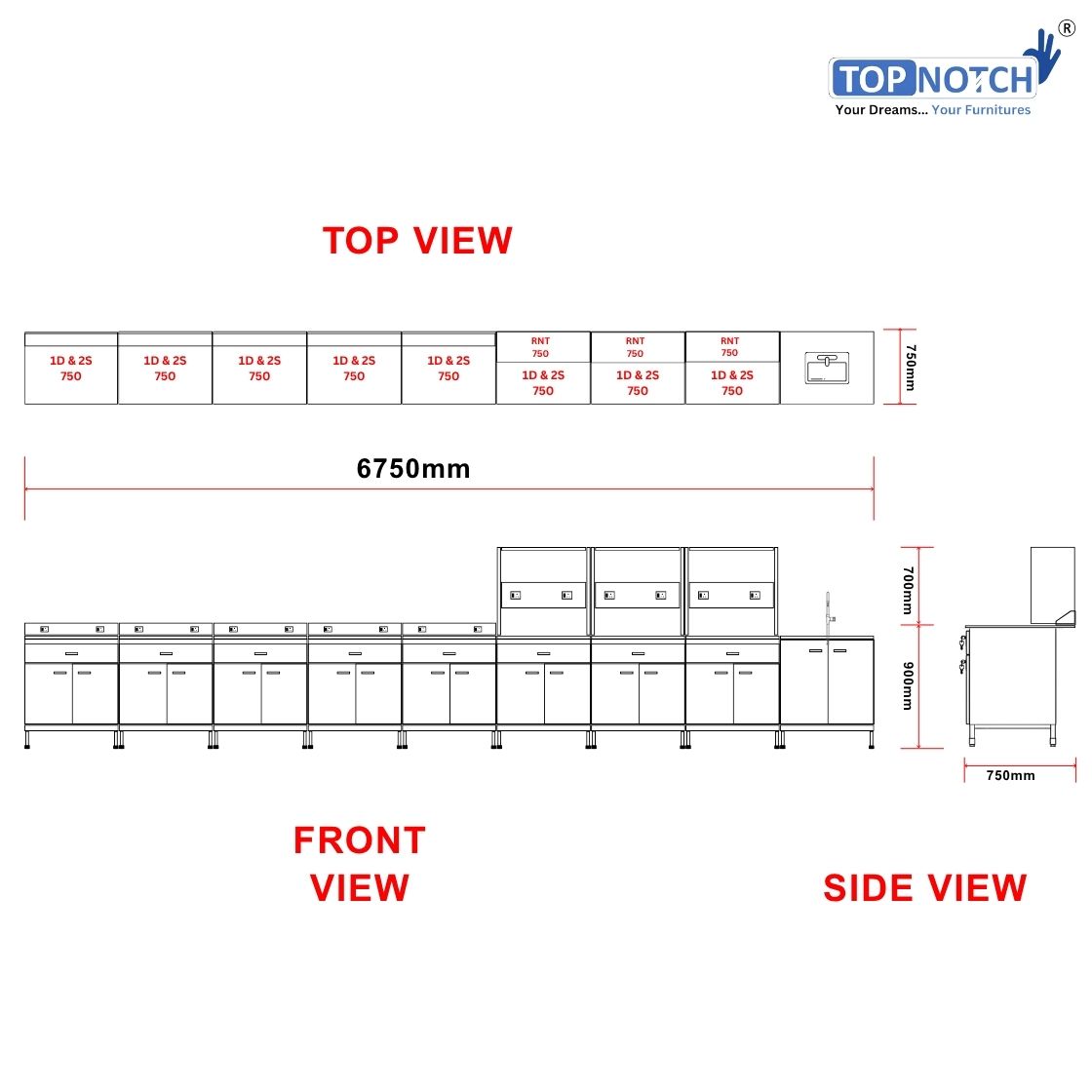

Overall Size 6750 (W) × 750 (D) × 1600 (H) mm
Working Height 900 mm
Reagent Rack Height 700 mm
Storage Pedestal Quantity 08 Nos.
Sink Pedestal Quantity 01 No.
EMC Raceway Quantity 05 Nos.
Reagent Rack Quantity 03 Nos.
Storage Configuration 1 Drawer + 2 Swing Shutters
Internal Storage 1 Adjustable Shelf
Body Material 0.8 mm CRCA Steel
Steel Standard IS-513 D Grade
Steel Source TATA Steel / JSW Steel
Frame Construction ERW Tube 30 × 30 × 1.6 mm
Worktop Material Black Granite
Worktop Thickness 16–20 mm
Edge Finish Fully Polished Granite Edges
Drawer Mechanism Smooth Sliding Channels
Hardware EBCO Hinges & Premium Fittings
Locking Facility Optional
Levelling Adjustable Leveller Legs
Surface Finish Epoxy Polyester Powder Coated
Coating Thickness 40–60 Microns
Anti-Rust Treatment 8-Tank Pretreatment Process
Standards Followed IS 6005-1995 & IS 3618-1966
Installation On-Site Assembly

Description

Modern laboratories require furniture systems that not only provide sufficient working space but also support efficient utility management, organized storage, ergonomic operation, and long-term durability. The Topnotch Wall Side Laboratory Table has been engineered specifically to meet these requirements.

The workstation provides a continuous laboratory work surface measuring 6750 mm in length, allowing multiple users to perform testing, analysis, documentation, sample preparation, and research activities simultaneously. Its wall-side configuration optimizes laboratory floor space while maintaining easy access to laboratory services.

The integrated EMC (Electrical Modular Conduit) Raceway provides a dedicated utility channel for electrical power distribution, instrument connectivity, and cable management. This arrangement minimizes cable clutter, improves laboratory safety, and enhances workstation organization.

The reagent rack system provides elevated storage for frequently used laboratory reagents, chemicals, sample containers, laboratory glassware, and testing accessories. By utilizing vertical space, the reagent rack maximizes available working area and improves accessibility.

A dedicated sink pedestal unit further enhances laboratory functionality by providing convenient access to water for cleaning, sample preparation, and routine laboratory operations.

The workstation incorporates eight storage pedestal units with drawers and shutter cabinets, providing ample storage space for laboratory equipment, consumables, documentation, chemicals, and accessories.

Manufactured using premium 0.8 mm CRCA steel conforming to IS-513 D Grade standards, the workstation is designed to withstand demanding laboratory conditions. The robust steel structure is reinforced with ERW tubular framing, ensuring exceptional stability and load-bearing performance.

The laboratory-grade black granite worktop provides excellent resistance to chemicals, heat, moisture, abrasion, and impact while maintaining an elegant and professional appearance.


Product Configuration

Storage Pedestal Units

Quantity: 08 Nos.

Each storage pedestal includes:

  • 01 Drawer
  • 02 Swing Shutters
  • Adjustable Shelf
  • Smooth Sliding Channels
  • Premium Handle System
  • Optional Locking Arrangement

Storage Benefits

  • Organized Equipment Storage
  • Improved Workflow Management
  • Secure Laboratory Storage
  • Easy Accessibility

Sink Pedestal Unit

Quantity: 01 No.

Features:

  • Integrated Sink Provision
  • 02 Swing Shutters
  • Utility Storage Space
  • Plumbing Access Area
  • Easy Maintenance Access

EMC Raceway System

Quantity: 05 Nos.

Features:

  • Electrical Utility Management
  • Cable Routing System
  • Instrument Connectivity Support
  • Organized Workstation Layout
  • Enhanced Laboratory Safety

Note: Electrical switches, sockets, wiring, MCBs, and accessories can be supplied separately as per project requirements.


Reagent Rack System

Quantity: 03 Nos.

Designed for:

  • Reagent Bottle Storage
  • Laboratory Glassware Storage
  • Chemical Organization
  • Consumable Storage
  • Improved Accessibility

Key Features

✅ Large Laboratory Workspace

6750 mm continuous work surface supports multiple users simultaneously.

✅ EMC Raceway Integration

Organized electrical utility distribution and cable management.

✅ Dedicated Reagent Rack

Convenient storage for laboratory reagents and accessories.

✅ Integrated Sink Unit

Supports cleaning and laboratory utility operations.

✅ Premium Black Granite Worktop

Resistant to chemicals, heat, moisture, scratches, and impacts.

✅ Heavy-Duty Steel Construction

Designed for demanding laboratory environments.

✅ Spacious Storage Capacity

Nine storage units provide excellent organization.

✅ Adjustable Internal Shelving

Flexible storage arrangement.

✅ Premium Hardware Components

Equipped with EBCO hinges and quality fittings.

✅ Corrosion Resistant Finish

Advanced anti-rust treatment ensures durability.

✅ Adjustable Leveller Legs

Provides stability on uneven flooring.

✅ Professional Laboratory Appearance

Modern design complements advanced laboratory environments.

Body Construction

Premium Steel Construction

Manufactured using:

  • 0.8 mm CRCA Steel
  • IS-513 D Grade Steel
  • TATA Steel / JSW Steel
  • CNC Precision Fabrication

Benefits

  • High Strength
  • Long Service Life
  • Structural Stability
  • Corrosion Resistance

Structural Framework

Fabricated using:

  • ERW Steel Tubes
  • Size: 30 × 30 × 1.6 mm
  • Reinforced Construction
  • Heavy-Duty Support System

Advantages

  • Superior Rigidity
  • Excellent Load Capacity
  • Long-Term Stability

Surface Pretreatment Process

All steel parts undergo:

  1. Degreasing
  2. Rust Removal
  3. Water Rinsing
  4. Surface Conditioning
  5. Phosphating
  6. Passivation
  7. Neutralization
  8. Final Cleaning

This process significantly improves corrosion resistance.


Powder Coating Finish

Applied Finish:

  • Epoxy Polyester Powder Coating
  • 40–60 Micron Thickness
  • Uniform Surface Coverage
  • Chemical Resistant Finish
  • Scratch Resistant Surface

Ideal Applications

Suitable for:

Pharmaceutical Laboratories

  • Quality Control
  • Analytical Testing
  • Formulation Research

Research Institutes

  • Scientific Research
  • Product Development

Biotechnology Laboratories

  • Molecular Biology
  • Biotechnology Testing

Educational Institutions

  • Universities
  • Colleges
  • Science Laboratories

Healthcare Laboratories

  • Diagnostic Centers
  • Pathology Laboratories

Industrial Laboratories

  • Quality Assurance
  • Product Testing

Chemical Laboratories

  • Chemical Analysis
  • Sample Preparation

Advantages of Topnotch Laboratory Furniture

  • Premium Raw Materials
  • Advanced Manufacturing Technology
  • Superior Corrosion Protection
  • Large Storage Capacity
  • Efficient Utility Management
  • Enhanced Workplace Organisation
  • Modular Expandable Design
  • Professional Laboratory Appearance
  • Long Operational Life
  • Easy Maintenance

Why Choose Topnotch Laboratory Furniture?

  • Industry Standard Manufacturing
  • Experienced Engineering Team
  • Premium Material Selection
  • Customized Design Solutions
  • Strict Quality Control
  • Competitive Pricing
  • PAN India Supply
  • Timely Project Delivery
  • Professional Installation Support
  • Reliable After-Sales Service

Where to Choose Topnotch Laboratory Furniture?

Ideal for:

  • Pharmaceutical Industries
  • Biotechnology Companies
  • Research Institutes
  • Universities
  • Government Laboratories
  • Hospitals
  • Diagnostic Centers
  • Food Testing Laboratories
  • Environmental Laboratories
  • Petrochemical Industries
  • Manufacturing Facilities
  • Scientific Research Centers
  • Engineering Institutions
  • Quality Assurance Laboratories

Maintenance Guidelines

Daily

  • Clean granite surfaces regularly.
  • Remove chemical spills immediately.
  • Keep reagent racks organised.

Weekly

  • Inspect drawer channels and hinges.
  • Clean EMC raceways.
  • Check storage compartments.

Monthly

  • Inspect powder-coated surfaces.
  • Tighten hardware if necessary.
  • Verify leveller alignment.

Packaging & Delivery

Packaging

  • Bubble Wrap Protection
  • Foam Corner Guards
  • Corrugated Sheet Protection
  • Stretch Film Wrapping
  • Edge Protection Covers
  • Wooden Crating (Optional)

Delivery

  • PAN India Delivery
  • Safe Transportation
  • Site Coordination
  • Installation Assistance
  • Knock-Down Dispatch System

Quality Standards

Standards Followed

  • IS-513 D Grade Steel Standard
  • IS 6005-1995
  • IS 3618-1966

Quality Assurance

  • Raw Material Inspection
  • Fabrication Inspection
  • Dimensional Verification
  • Powder Coating Testing
  • Hardware Testing
  • Structural Inspection
  • Final Product Approval

Do’s & Don’ts

Do’s

  • Clean worktops daily.
  • Store reagents properly.
  • Inspect EMC systems periodically.
  • Follow laboratory safety procedures.
  • Maintain organised storage.

Don’ts

  • Do not overload reagent racks.
  • Avoid abrasive cleaning chemicals.
  • Do not stand on worktops.
  • Avoid unauthorised modifications.
  • Do not expose surfaces to prolonged corrosive chemical contact.

Disclaimer

  • Product images are for reference purposes only.
  • Reagent bottles, laboratory instruments, and accessories shown are not included.
  • Electrical accessories may vary according to project specifications.
  • Actual dimensions may vary within standard manufacturing tolerances.
  • Granite texture and shade may vary naturally.
  • Product specifications may change without prior notice for continuous improvement.
  • Custom dimensions and configurations are available upon request.
