Description
The Topnotch Wall Side Laboratory Table with EMC Raceway and Storage Pedestals is a premium laboratory furniture solution designed for modern research, pharmaceutical, educational, healthcare, and industrial laboratories. Combining robust construction, organized storage, integrated electrical utility management, and a spacious chemical-resistant work surface, this workstation is engineered to deliver exceptional functionality and long-term performance.

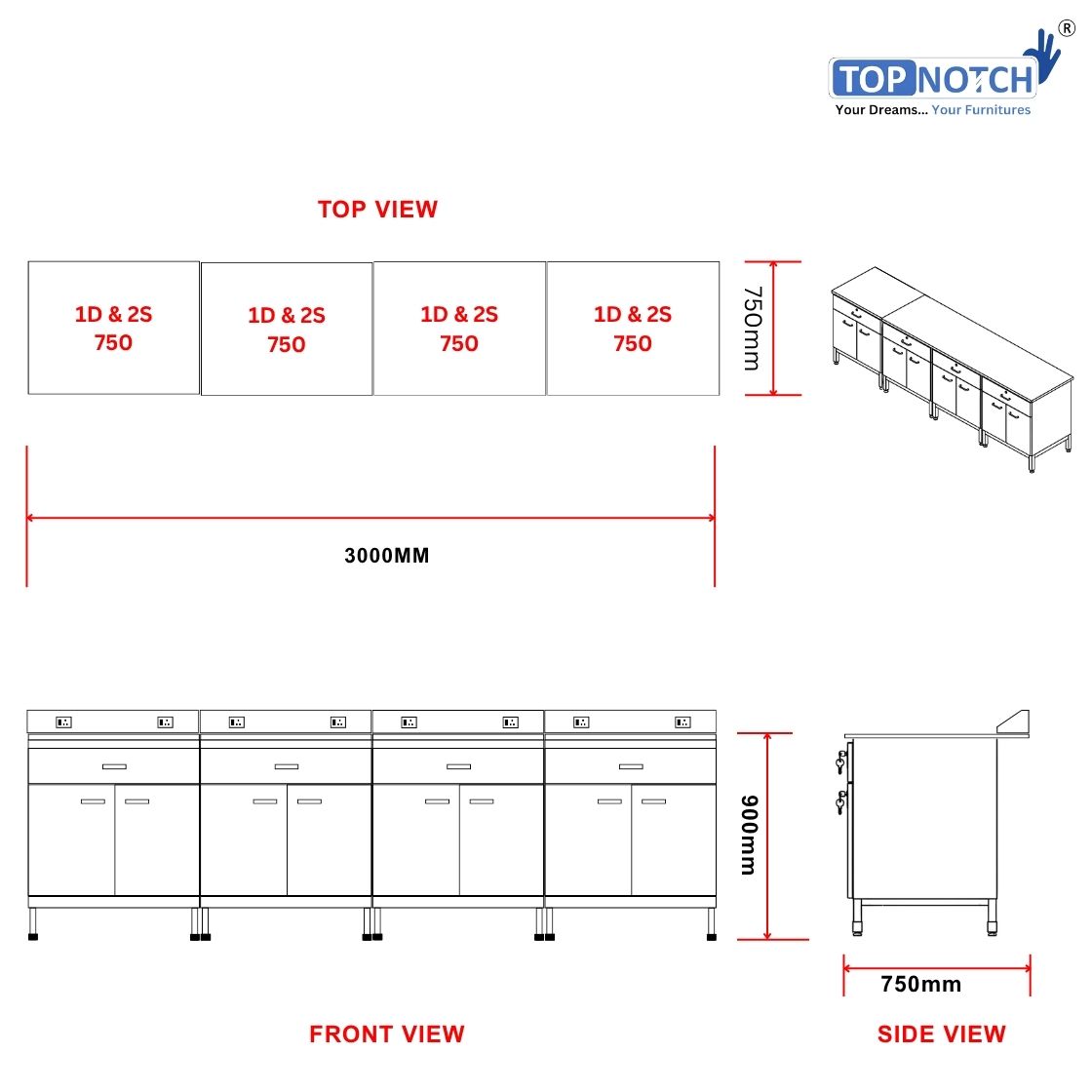

With an overall size of 3000 mm Width × 750 mm Depth × 900 mm Height, the workstation provides a large working area suitable for laboratory testing, sample preparation, documentation, instrument operation, and analytical procedures.
The configuration consists of:
- 04 Modular Storage Pedestals
- 04 EMC Electrical Raceway Modules
- Premium Black Granite Worktop
- Heavy-Duty Steel Framework
- Adjustable Leveller System
Each pedestal is designed with one drawer and two swing shutters, providing convenient storage for laboratory consumables, instruments, chemicals, glassware, documents, and accessories.
The integrated EMC (Electrical Modular Conduit) Raceway enhances laboratory efficiency by providing organized electrical access points and cable routing channels. This feature improves safety, minimizes cable clutter, and allows easy connection of laboratory equipment and instruments.
Constructed using 0.8 mm CRCA Steel (IS-513 D Grade) sourced from TATA Steel and JSW Steel, the workstation delivers superior structural integrity and long service life. The steel framework is reinforced using ERW Tubes measuring 30 × 30 × 1.6 mm, ensuring excellent stability and load-bearing capability.
The premium laboratory-grade granite worktop offers outstanding resistance against chemicals, moisture, heat, abrasion, and impact, making it suitable for demanding laboratory environments.
Product Configuration
Storage Pedestal Units
Quantity: 04 Nos.
Each pedestal includes:
- 01 Lockable Drawer
- 02 Swing Shutters
- 01 Adjustable Shelf
- Premium Handle System
- Smooth Sliding Channels
- Storage Compartments
Storage Benefits
- Efficient Organization
- Safe Storage of Laboratory Items
- Improved Workflow
- Better Space Utilization
EMC Raceway Modules
Quantity: 04 Nos.
The EMC Raceway provides:
- Electrical Cable Management
- Utility Distribution Support
- Instrument Connectivity
- Organized Workstation Layout
- Enhanced Safety
Note: Electrical switches, sockets, wiring, MCBs, and accessories can be supplied separately as per project requirements.
Key Features
✅ Integrated EMC Raceway
Provides efficient electrical utility routing and organized cable management.
✅ Spacious Laboratory Worktop
Large 3000 mm work surface supports multiple laboratory activities simultaneously.
✅ Premium Granite Surface
Chemical-resistant and heat-resistant laboratory-grade granite.
✅ Modular Storage Configuration
Four spacious pedestal units maximize storage efficiency.
✅ Heavy-Duty Steel Construction
Manufactured using premium CRCA steel.
✅ Adjustable Internal Shelves
Flexible storage arrangement for laboratory requirements.
✅ Smooth Drawer Operation
High-quality drawer channels ensure effortless functionality.
✅ Premium Hardware
EBCO hinges and quality fittings provide long-term reliability.
✅ Anti-Corrosion Protection
Advanced pretreatment process improves durability.
✅ Adjustable Leveller Legs
Ensures stability on uneven laboratory floors.
✅ Easy Maintenance
Smooth surfaces simplify cleaning and upkeep.
✅ Professional Laboratory Appearance
Modern design suitable for advanced laboratory environments.
Body Construction
Premium Steel Fabrication
The workstation body is manufactured using:
- 0.8 mm CRCA Steel
- IS-513 D Grade Steel
- TATA Steel / JSW Steel
- CNC Precision Processing
Advantages
- High Structural Strength
- Excellent Load Capacity
- Long Operational Life
- Consistent Dimensional Accuracy
Structural Framework
The support structure consists of:
- ERW Steel Tubes
- 30 × 30 × 1.6 mm Section
- Reinforced Frame Design
- Heavy-Duty Support Construction
Benefits
- Superior Stability
- Reduced Deflection
- Enhanced Durability
- Better Weight Distribution
Anti-Rust Treatment Process
All steel components undergo:
- Degreasing
- Rust Removal
- Water Rinsing
- Surface Conditioning
- Phosphating
- Passivation
- Neutralization
- Final Cleaning
This process improves corrosion resistance and coating adhesion.
Powder Coating Finish
The workstation receives:
- Epoxy Polyester Powder Coating
- 40–60 Micron Thickness
- Uniform Surface Coverage
- Scratch Resistance
- Chemical Resistance
Worktop Construction
Laboratory Grade Black Granite
The worktop is manufactured using carefully selected laboratory-grade granite.
Benefits
- Resistant to Chemicals
- Resistant to Heat
- Moisture Resistant
- Scratch Resistant
- Impact Resistant
- Easy to Maintain
Edge Finish
- Fully Polished Edges
- Smooth Finish
- Professional Appearance
Ideal Applications
Suitable for:
Pharmaceutical Laboratories
- Quality Control Testing
- Sample Preparation
- Research Activities
Research Laboratories
- Analytical Testing
- Scientific Experiments
Educational Institutions
- School Laboratories
- College Laboratories
- University Research Centers
Biotechnology Facilities
- Laboratory Processing
- Research Operations
Healthcare Laboratories
- Diagnostic Testing
- Pathology Laboratories
Industrial Laboratories
- Product Testing
- Quality Assurance
Chemical Laboratories
- Chemical Analysis
- Laboratory Research
Food Testing Laboratories
- Sample Inspection
- Product Evaluation
Advantages of Topnotch Laboratory Furniture
Premium Quality Materials
Only high-grade steel and laboratory-grade worktops are used.
Superior Manufacturing Standards
Produced under strict quality control systems.
Organized Electrical Management
EMC Raceway improves workplace efficiency and safety.
Large Storage Capacity
Four pedestal units provide extensive storage space.
Long Service Life
Designed for continuous laboratory operation.
Easy Cleaning
Smooth surfaces facilitate maintenance.
Professional Appearance
Enhances laboratory aesthetics.
Customization Options
Available in customized dimensions and configurations.
Why Choose Topnotch Laboratory Furniture?
Topnotch Laboratory Furniture is trusted by laboratories across India for its quality, durability, and engineering excellence.
Key Reasons
- Premium TATA / JSW Steel
- Industry-Compliant Manufacturing
- Advanced Powder Coating Technology
- Customized Laboratory Solutions
- Experienced Design Team
- PAN India Supply Network
- Competitive Pricing
- Reliable Installation Support
- Comprehensive Quality Checks
- Excellent After-Sales Service
Where to Use Topnotch Laboratory Furniture?
Ideal for:
- Pharmaceutical Industries
- Biotechnology Laboratories
- Research Institutes
- Government Laboratories
- Educational Institutions
- Universities
- Hospitals
- Diagnostic Centers
- Food Testing Laboratories
- Environmental Laboratories
- Petrochemical Industries
- Engineering Research Centers
- Manufacturing Facilities
- Quality Assurance Laboratories
Packaging & Delivery
Packaging
- Bubble Wrap Protection
- Foam Corner Protection
- Stretch Film Wrapping
- Corrugated Sheet Protection
- Edge Guards
- Optional Wooden Crating
Delivery
- PAN India Delivery
- Safe Transportation
- Site Coordination
- Professional Handling
- Installation Support Available
Maintenance Guidelines
Daily Maintenance
- Clean worktop surfaces regularly.
- Remove chemical spills immediately.
- Maintain organized storage.
Weekly Maintenance
- Inspect drawer channels.
- Check hinges and locks.
- Clean EMC Raceway surfaces.
Monthly Maintenance
- Verify leveller adjustment.
- Inspect powder-coated surfaces.
- Tighten hardware if necessary.
Quality Standards
Standards Followed
- IS-513 D Grade Steel
- IS 6005-1995
- IS 3618-1966
Quality Assurance
- Raw Material Inspection
- Fabrication Inspection
- Dimensional Verification
- Powder Coating Testing
- Hardware Performance Testing
- Structural Stability Testing
- Final Quality Approval
Do’s & Don’ts
✅ Do’s
- Clean surfaces daily.
- Use approved laboratory cleaners.
- Inspect EMC Raceway periodically.
- Store materials properly.
- Follow laboratory safety procedures.
❌ Don’ts
- Do not overload storage compartments.
- Avoid abrasive cleaning products.
- Do not stand on the worktop.
- Avoid unauthorized modifications.
- Do not expose surfaces to prolonged corrosive chemical contact.
Disclaimer
- Product images are for reference purposes only.
- Electrical accessories shown may vary according to project specifications.
- Granite shade and pattern may vary naturally.
- Actual dimensions may vary within manufacturing tolerances.
- Product specifications may be updated without prior notice.
- Optional accessories are supplied as per approved project scope.
- Custom sizes and configurations are available on request.
